Scs Dual Wrist Strap Monitor, Led - CTC061-3-242-WW
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 42M0725 | 1 | 1 | 1 @ $0.00 | |
 Accessotronik | CTC061-3-242-WW_3100 | 1 | -2 | 1 | 1 @ $715.10 |
| Pemro | MMM-1820 | 1 | 1 | 1 @ $453.46 | |
| 105ST242 | 1 | 1 | 1 @ $461.37, 2 @ $438.30, 5 @ $415.23 | ||
| Hisco | CTC061-3-242-WW-31181 | 1 | 1 | ||
 Zoro | G3015041 | 1 | 1 | 1 @ $646.26 | |
| Allied Electronics | 70112812 | 1 | 1 | ||
| us.rs-online.com | 70112812 | 1 | 1 | 1 @ $607.56, 5 @ $587.96, 10 @ $560.83 | |
 All-Spec | CTC061-3-242-WW-31181 | 1 | 1 | 1 @ $461.37 | |
| Digi-Key | 1617951 | 1 | 1 | ||
| sustainablesupply.com | C1712401 | 1 | -2 | 1 | 1 @ $955.74 |
| Techni-Tool | 105ST242 | 1 | 1 | ||
| Future Electronics | 6071583 | 1 | 1 | 1 @ $550.63 | |
 Grainger | 20FX52 | 1 | 1 | 1 @ $817.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
SCS CTC061-3-242-WW WS Aware Monitor, 4.20MA Out, Standard Remotes
Brand: SCS Enterprises

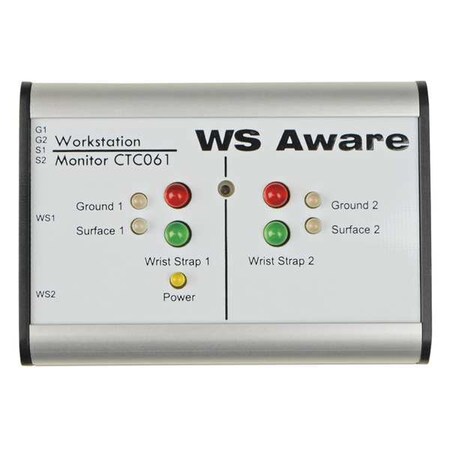

The SCS CTC061-3-242-WW WS Aware Monitor, 4.20MA Out, Standard Remotes works with dual wrist straps that have a standard 3.0 mm audio mono plug. It verifies proper wearing of a wrist strap by measuring an operator’s resistance. Red LEDs indicate when wrist strap fails, or when proximity sensor fails, or when wrist strap is incorrectly plugged into the visitor’s jack. Green LEDs indicate that wrist straps are properly connected and worn. The 4.20 mA data output interfaces with data acquisition systems that accept a 4.20 mA input signal.
Details
- Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools
- Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
- Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
- Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
- Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
Listing
| Product group | BISS Basic |
|---|---|
| Product type | PRECISION_MEASURING |
| Model | CTC061-3-242-WW |
| Part number | CTC061-3-242-WW |
| Label | SCS |
| Manufacturer | SCS |
