Hammond Enclosure, Wall Mount, Steel, Gray - HN4WM304210GY

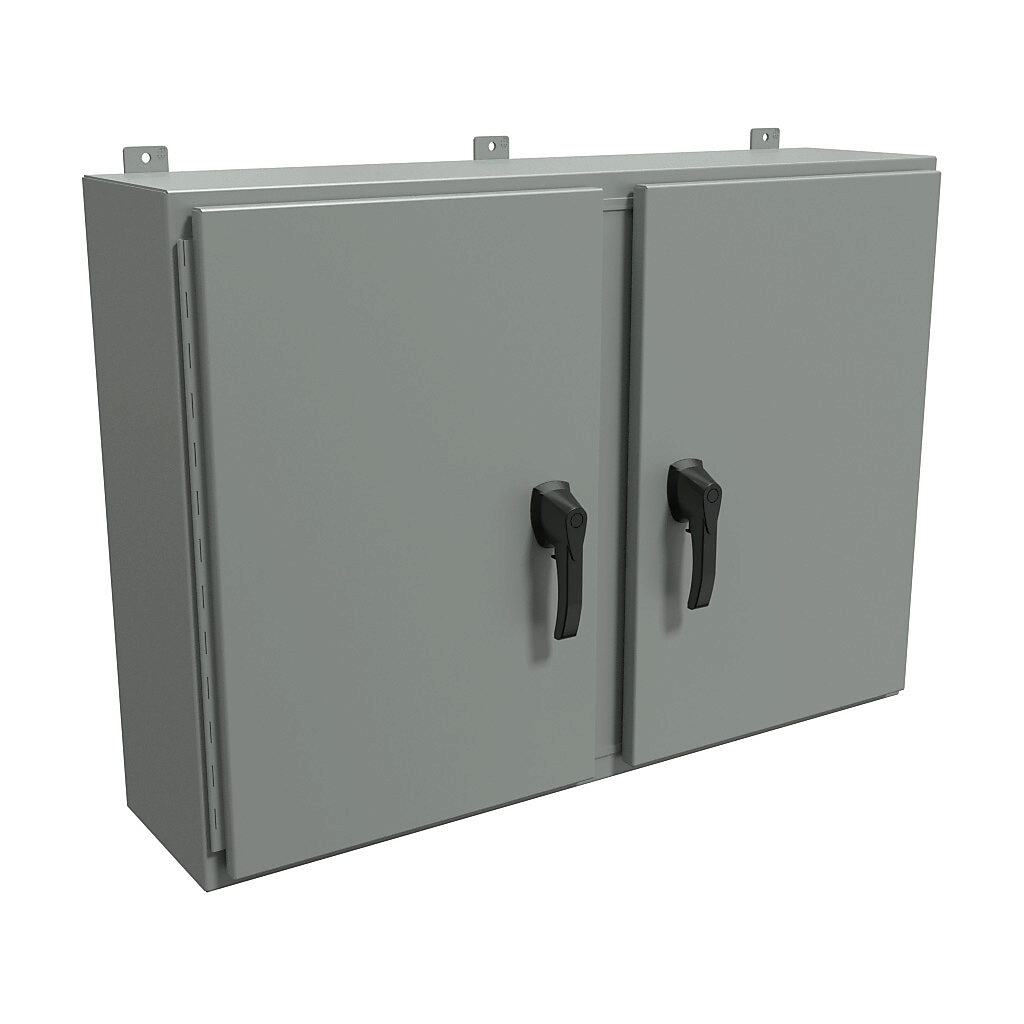

Hammond HN4WM304210GY - Type 4 Two Door Wallmount Enclosure Type 4 Two Door Wallmount Enclosure Standards × Standards UL 508 Type 3R, 4, and 12 CSA Type 3R, 4, and 12 Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66 Finish Cover and enclosure are phos­phat­ized and finished in recoatable smooth ANSI 61 gray powder coating Removable inner panel is finished in white powder coating Note Disconnects, operating mechanisms are not provided with the enclosure, and must be ordered separately from the manufacturer Application Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection Dimensional Drawing Type 4 Two Door Wallmount Enclosure Dimensional Drawing × Overall Dimensions Panel Size Part Number A B C D E HN4WM24428GY 24.00 42.00 8.00 21.00 39.00 HN4WM24488GY 24.00 48.00 8.00 21.00 45.00 HN4WM304210GY 30.00 42.00 10.00 27.00 39.00 HN4WM304810GY 30.00 48.00 10.00 27.00 45.00 HN4WM306010GY 30.00 60.00 10.00 27.00 57.00 HN4WM364212GY 36.00 42.00 12.00 33.00 39.00 HN4WM364812GY 36.00 48.00 12.00 33.00 45
