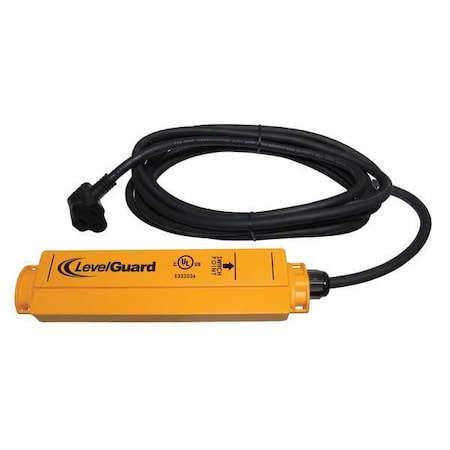

LevelGuard Z24801A1Z - Electronic Sump Pump Switch w/ 15' Cord

<p><b>Overview</b>The LevelGuard electronic sump pump switch provides a solution forplumbing contractors and homeowners that need to eliminate sumppump switch failure. LevelGuard’s proprietary solid-state design for fluiddetection and pump switching has been tested to more than 5 millioncycles without failure<p><b>Specifications: </b><ul><li>AC Input: 120v, 60 Hz (single phase)</li><li>Cord Type: SJTOW/14 gauge</li><li>Plug Type: Piggyback</li><li>Load Rating: 12 A general purpose, 120 VAC / 1/2 hp (9.8 FLA, 58.8 LRA), 120 VAC / 72 VA pilot duty, 120 VAC</li><li>Fused Protection: 30 Amps</li><li>Operating Current: 1.3 milliamps</li><li>Mounting straps: Polypropylene Straps (5 each)</li><li>Agency Certifications: UL Listed (U.S. & Can) File #E332036</li><li>Minimum differential: 6.0”(150 mm)</li><li>Effective differential: 8”to 10” (200 mm to 254 mm)</li><li>Operating Temperature Ranges: Ambient 32 to 122F (0 to 50C), Liquid 32 to 122F (0 to 50C), Storage -40 to 185F (-40 to 85C)</li><li>Housing: Material ABS Plastic</li><li>Designations: LevelGuard Home Sump controls are designated for use inresidential and commercial plumbing applications.</li><li>Media Types: (NON-SEWAGE ONLY), Aqueous solutions, ground water</li><li>Voltage: 120v</li><li>Frequency: 60 Hz</li><li>Cord Length: 15'</li><li>Material: ABS</li></ul></p>

<p><b>Specifications: </b><ul><li>Item:-Pump Switch</li><li>Type:-Tether, Solid State</li><li>Switch Type:-Normally Open</li><li>Connection:-Plug</li><li>Max. Amps Running:-12</li><li>HP @ 1 Phase - 115V:-0.5</li><li>Voltage:-115</li><li>Cord Length (Ft.):-15</li><li>Wire Gauge:-14</li><li>Pumping Range Min./Max.:-0 to 10</li><li>Overall Length (In.):-183</li><li>Length:-183"</li><li>Width:-2.45"</li><li>Height:-10"</li><li>VA Rating:-1440</li><li>Max. Temp. (F):-122</li><li>Max. Temp. (C):-50</li><li>Operation:-Electronic</li><li>Mounts:-Vertical</li><li>For Use With:-1/2 HP And Under Submersible Sump Pumps, 120 V, 60hz, Single Phase Only</li><li>Body Material:-ABS Plastic</li><li>Control Range:-10"</li><li>Max. Voltage:-120</li><li>Max. Wattage:-1176</li><li>Turns Off At:-0"</li><li>Turns On At:-6"</li><li>Agency Compliance:-UL Recognized</li><li>Includes:-Pump Switch, 5 Zip Ties, and Instruction Booklet</li><li>UNSPSC:-39121531</li></ul></p>
