4 Inch SS High Temp Phenolic 12mm Threaded Stem Caster Set Total Lock Brake

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00Threaded Stem
Attribute01, width1.25
Attribute025-1/8"
Attribute03, length1.5
Attribute04Plain Bore
Attribute05Polished Stainless Steel
Attribute06300
Attribute07, Material, MaterialTypeHigh Temperature Phenolic
Attribute08(4) swivel casters w/ total lock brakes
Attribute09, Attribute13Total lock brake
Attribute1090D
Attribute11475 degrees F continuous usage and 525 degrees F intermittent usage
Attribute12, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity4
Attribute1412MM
Attribute15, countryOfOriginUnited States
AttributeKey00Caster Stem Type
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03, length_AttribStem Length
AttributeKey04Wheel Bearing Type
AttributeKey05Finish
AttributeKey06Load Capacity
AttributeKey07Material
AttributeKey08Includes
AttributeKey09Features
AttributeKey10Durometer
AttributeKey11Caster Temp. Range
AttributeKey12Wheel Dia.
AttributeKey13Caster Swivel Lock Type
AttributeKey14Stem Dia.
AttributeKey15Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name4 Inch SS High Temp Phenolic 12mm Threaded Stem Caster Set Total Lock Brake
WeightUnitlbs
extendedLead26
extendedQty-2
height5.125
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPN, PartNumber, Part_numberSCC-SSTSTTL20S414-PHSHT-M1215-4
qtyInStock0
tierPrice1535.53
urlhttps://www.zoro.com/service-caster-4-inch-ss-high-temp-phenolic-12mm-threaded-stem-caster-set-total-lock-brake-scc-sststtl20s414-phsht-m1215-4/i/G505425923/
ASINB08972YWMG B08F2MKS1L
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08F2MKS1L
Bullet_pointAll casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster
ClassificationId383662011 511228
Color4 Swivel - Total Lock Brakes - Brown
Currency, CurrencyCodeUSD
DisplayNameHardware
Exterior_finishStainless Steel
FetchTime1699346351 1704584218
Height, Width1000 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_nameStainless Steel High Temperature Phenolic Swivel Threaded Stem Caster Set of 4 w/4" x 1.25" Brown Wheels and 12mm Stems - Includes 4 with Total Lock Brakes-1200 lbs Total Capacity-Service Caster Brand
Item_type_keywordstem-casters
KeywordSCC-SSTSTTL20S414-PHSHT-M1215-2-S-2
Linkhttps://m.media-amazon.com/images/I/41AYMHpn1iL._SL75_.jpg https://m.media-amazon.com/images/I/41AYMHpn1iL.jpg https://m.media-amazon.com/images/I/516gdPCsfkL._SL75_.jpg https://m.media-amazon.com/images/I/516gdPCsfkL.jpg https://m.media-amazon.com/images/I/51Fu3nf5fKL._SL75_.jpg https://m.media-amazon.com/images/I/51Fu3nf5fKL.jpg https://m.media-amazon.com/images/I/51iss8fz0wL.jpg https://m.media-amazon.com/images/I/51lWdAbrpIL._SL75_.jpg https://m.media-amazon.com/images/I/51lWdAbrpIL.jpg https://m.media-amazon.com/images/I/61JudWIXX7L.jpg https://m.media-amazon.com/images/I/61gfQv+v1gL.jpg https://m.media-amazon.com/images/I/71vkOn+Q1VL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383662011
List_price0.0
Load_capacity300.0
Marketplace_idATVPDKIKX0DER
Model, ModelNumber, Model_numberSeries #20
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08972YWMG
ProductCategoryId383662011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL

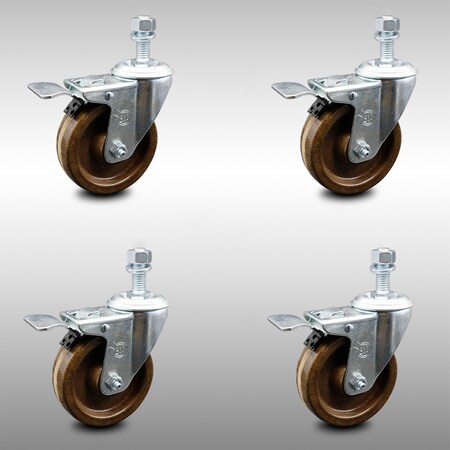

Product_descriptionListing is for a set of four (4) Service Caster Series #20 stainless steel swivel casters, four (4) swivel 12mm threaded stem casters with total lock brakes, 4” diameter by 1-1/4” wide high temperature phenolic wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2020-07-31T13:14:50.563Z
Rank1007 1081482 190138 2159 407083 445758
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Industrial & Scientific Stainless Steel High Temperature Phenolic Swivel Threaded Stem Caster Set of 4 w/4" x 1.25" Brown Wheels and 12mm Stems - Includes 4 with Total Lock Brakes-1200 lbs Total Capacity-Service Caster Brand Stem Casters
TypeVARIATION
URLhttps://m.media-amazon.com/images/I/41AYMHpn1iL._SL75_.jpg
Unitpounds
Unitspixels
VariantMAIN PT01 PT02 PT03
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight7.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG505425923111 @ $535.53

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Stainless Steel High Temperature Phenolic Swivel Threaded Stem Caster Set of 4 w/4" x 1.25" Brown Wheels and 12mm Stems - Includes 4 with Total Lock Brakes-1200 lbs Total Capacity-Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #20 stainless steel swivel casters, four (4) swivel 12mm threaded stem casters with total lock brakes, 4” diameter by 1-1/4” wide high temperature phenolic wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries #20
Part numberSCC-SSTSTTL20S414-PHSHT-M1215-4
Items per pack4
LabelService Caster
ManufacturerService Caster
