Mean Well Adaptor, Medical, Ac-Dc, 20V, 11A - GSM220B20-R7B

<b>Features</b><br>Universal AC input / Full range<br>Medical safety approved (2xMOPP)<br> Suitable for BF application with appropriate system consideration (B-Type only)<br> Low leakage current<100uA<br> No load power consumption < 0.15W<br> Energy efficiency Level VI<br> Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and meet CoC Version 5<br> Built-in active PFC function<br> High efficiency up to 94.5%<br> Fanless design, high operating temperature up to +70¡ãC<br> A-Type: Class I (with earth Pin); B-Type: Class II (without earth Pin)<br> Protections: Short circuit / Overload / Over voltage / Over temp.<br> Fully enclosed plastic case<br> LED indicator for power on<br> 3 years warranty

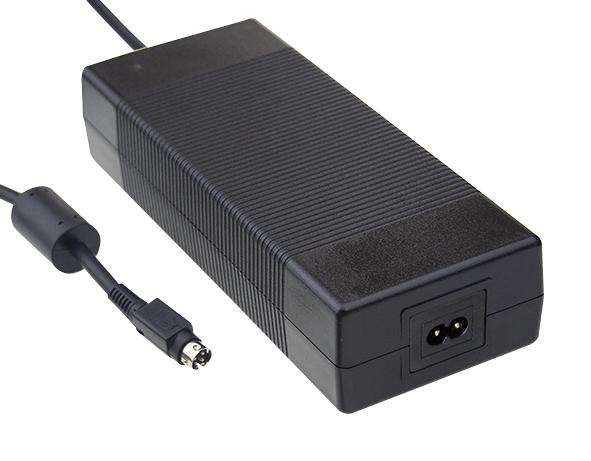

MEAN WELL GSM220B20-R7B Medical Level Adapter

<p><b>Features:</b></p> <p>2 pole AC inlet IEC320-C8 , Class II power unit</p> <p>Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/EN60601-1</p> <p>Extremely low leakage current</p> <p>No load power consumption< 0.15W</p> <p>Energy efficiency Level VI and meet CoC Version 5</p> <p>-30~ +70ºC wide range working temperature</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature </p> <p>LED indicator for power on</p> <p>Lifetime > 70K hours</p> <p>3 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range: 80~264VAC 113~370VDC</p> <p>AC inrush current (Typ.):Cold start 55A/115VAC 110A/ 230VAC</p> <p>AC adjustment range: 12V: 0~15A, 15V: 0~13.4A, 20V: 0~11A, 24V: 0~9.2A ,48V: 0~4.6A</p> <p>Over voltage protection: 105 ~ 135% rated output voltage, Protection type : Shut down o/p voltage, re-power on to recover</p> <p>Overload protection: 105 ~ 135% rated output power,Protection type :Hiccup mode, recovers automatically after fault condition is removed</p> <p>Over temperature: Shut down o/p voltage, recovers automatically after temperature goes down</p> <p>Withstand voltage:I/P-O/P: 4KVAC</p> <p>Working temperature: -30~ +70ºC (Refer to "Derating Curve")</p> <p>Safety standards:IEC60601-1,EN60601-1/ EN60601-1-11,ANSI/AAMI ES60601-1/es60601-1-11(3.1 version),CAN/CSA-C22.2 No.60601-1:14-Edition, EAC TP TC 004 approved</p> <p>EMC standards: EN55011 (CISPR11), FCC PART 15/ CISPR22,CAN ICES-3(B)/NMB-3(B) Class B, EN61000-3-2,3,EN61000-4-2-3,4,5,6,8,11</p> <p>Isolation resistance:I/P-O/P:100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):210x 85x 46</p>
