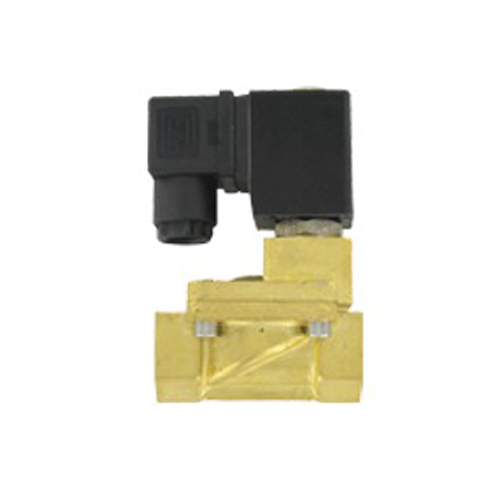

Order SBSV-B6N4 by W.E. Anderson Series SBSV-B Brass Solenoid Valve - US Mega Store

W.E. Anderson . SBSV-B6N4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute14Compatible gases and liquids
Attribute01, Attribute151"
Attribute02, Attribute16Female NPT
Attribute03, Attribute177.3 psi (0.5 bar) to 188.5 psi (13 bar)
Attribute04, Attribute18246.6 psi (12 bar)
Attribute05, Attribute19Body: Brass; Spring: 304 SS; Seal: NBR
Attribute06, Attribute20Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C)
Attribute07, Attribute2124 VDC
Attribute08, Attribute22NEMA 13 (IP54)
Attribute09, Attribute23DIN connection
Attribute10, Attribute24Nylon
Attribute11, Attribute25Any position, best if solenoid vertically above valve
Attribute12, Attribute263.09 lb
Attribute13, Attribute27CE
AttributeKey00, AttributeKey14Service
AttributeKey01, AttributeKey15Line Size
AttributeKey02, AttributeKey16End Connections
AttributeKey03, AttributeKey17Operating Pressure:
AttributeKey04, AttributeKey18Pressure Limit
AttributeKey05, AttributeKey19Wetted Material
AttributeKey06, AttributeKey20Temperature Limits
AttributeKey07, AttributeKey21Power Requirements
AttributeKey08, AttributeKey22Enclosure Rating
AttributeKey09, AttributeKey23Electrical Connection
AttributeKey10, AttributeKey24Other Materials
AttributeKey11, AttributeKey25Mounting Orientation
AttributeKey12, AttributeKey26, Weight_AttribWeight
AttributeKey13, AttributeKey27Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Electric
CategoryL4W.E. Anderson SBSV-B6N4
ConditionNEW
Extra Product NameOrder SBSV-B6N4 by W.E. Anderson Series SBSV-B Brass Solenoid Valve - US Mega Store
Weight3.09
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUSBSV-B6N4
qtyInStockContact Us
snippet<p><strong>W.E. Anderson, SBSV-B6N4, Series SBSV-B Brass Solenoid Valve, 2-Way Guided NC, 1", 7.25-188.5 psi, NBR Seal, 24 VDC </strong> </p> <p>Compact Design, Immune to Mounting Orientation </p> <p><strong>Series SBSV-B Solenoid Valves </strong> are compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and noncorrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176&#176;F (80&#176;C). </p> <p><strong>Approvals </strong> </p> <p>CE Approval </p>
tierPrice1180.9

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comSBSV-B6N41Contact Us11 @ $180.90
heavydutydepot.comSBSV-B6N4111 @ $172.20
MegadepotSBSV-B6N4111 @ $172.20
