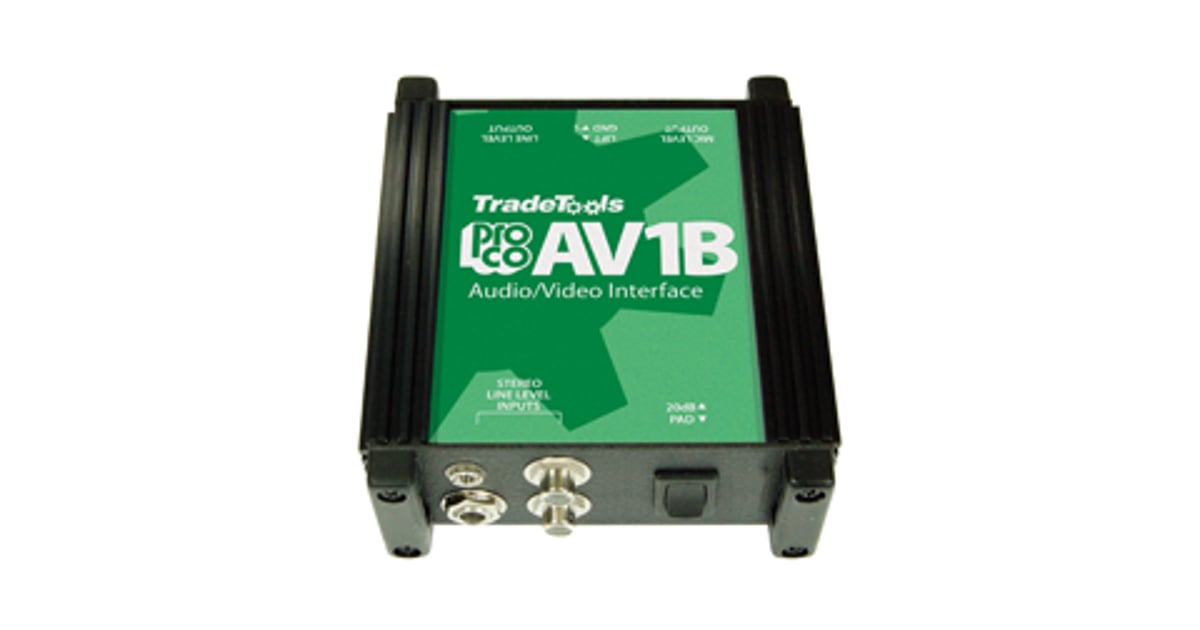

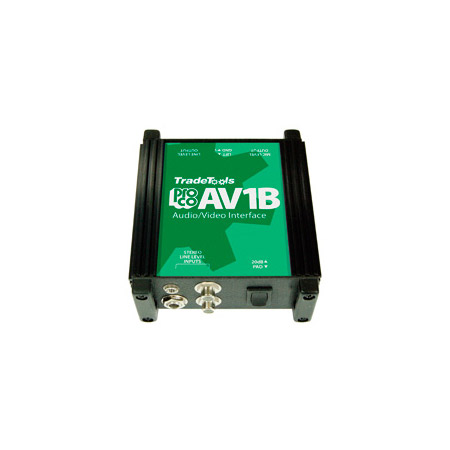

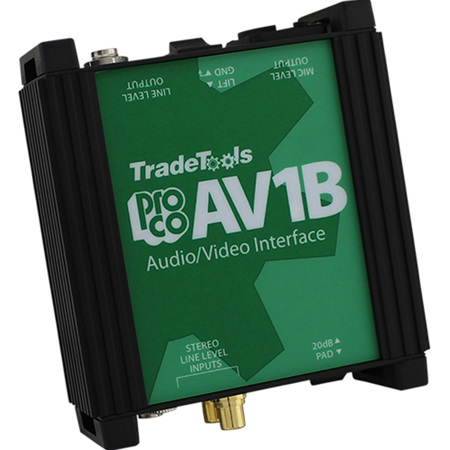

The Pro Co TradeTools AV1B Audio-Visual Interface allows the line-level outputs of audio and video playback devices, etc., to be connected to microphone inputs of house or portable P.A. systems for programs in school auditoriums, lecture halls, civic meetings and corporate board rooms. The AV1B provides audio interfacing and isolation with wide response and low distortion.</p><p>Three different types of input connectors-1/4" (6.3mm) T/R/S phone, 2 RCA-type phono, and 3.5mm T/R/S mini jacks - simplify connection of most equipment. The PAD IN/OUT attenuator switch allows greater flexibility for handling line output sources at either "hi-fi" -10 dBV or "professional" +4dBm levels. The DBT-1 transformer provides a floating 150-ohm output with a standard 3-pin male XLRtype connector, so connection to most P.A. system mixers or mixer/amplifiers requires only a standard microphone cable. The GND/LFT switch eliminates hum and buzz from AC ground loops between equipment. For further versatility of operation, there is also a 1/4" (6.3mm) unbalanced line-level output.</p><p>The AV1B's construction and components are top-grade throughout, ensuring trouble-free operation in educational, institutional and A/V rental settings. Pro Co's "Uni-box" enclosure is formed of extruded aluminum side channels and 16-gauge steel top, bottom and end plates and is designed to protect it's switches and connectors from accidental damage. The use of steel also provides excellent magnetic shielding for the transformer from EMI/RFI fields. The finish is durable black textured powder coat on the end plates and the side channels are black anodized aluminum. Easily readable control and connector identification graphics are incorporated into a durable Lexanr overlay on the top panel. The uniquely slotted side channels allow for stacking on top or strapping side-to-side of virtually any number of Pro Co TradeTools devices using the Uni-box construction.</p>

Trade Tools AV1B AudioVisual Interface allows the linelevel outputs of audio and video playback devices etc to be connected to microphone inputs of house or portable PA systems for programs in school auditoriums lecture halls civic meetings and corporate board rooms The AV1B provides audio interfacing and isolation with wide response and low distortion Three different types of input connectors14 63mm TRS phone 2 RCAtype phono and 35mm TRS mini jacks simplify connection of most equipment The PAD INOUT attenuator switch allows greater flexibility for handling line output sources at either hifi 10 dBV or professional 4dBm levels The DBT1 transformer provides a floating 150ohm output with a standard 3pin male XLRtype connector so connection to most PA system mixers or mixeramplifiers requires only a standard microphone cable The GNDLFT switch eliminates hum and buzz from AC ground loops between equipment For further versatility of operation there is also a 14 63mm unbalanced linelevel output The AV1Bs construction and components are topgrade throughout ensuring troublefree operation in educational institutional and AV rental settings Pro Cos Unibox enclosure is formed of extruded aluminum side channels and 16gauge steel top bottom and end plates and is designed to protect its switches and connectors from accidental damage The use of steel also provides excellent magnetic shielding for the transformer from EMIRFI fields The finish is durable black textured powder coat on the end plates and the side channels are black anodized aluminum Easily readable control and connector identification graphics are incorporated into a durable Lexanr overlay on the top panel The uniquely slotted side channels allow for stacking on top or strapping sidetoside of virtually any number of Pro Co TradeTools devices using the Unibox construction Features. Audio Visual Passive Direct Box. Better Sound from Computers and DVDs. Ideal for Meetings Lectures and Presentations. Output is Transformer
