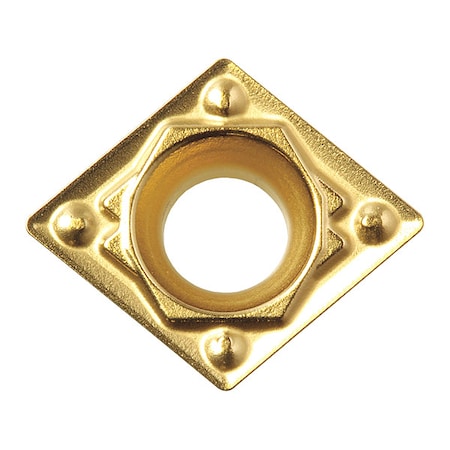

Diamond Turning Insert, Diamond, 5/16", 80 Degrees, 1/32"

<ul><li>Insert for Boring, Internal Facing</li><li>2 Cutting Edges</li><li>MEGACOAT NANO coating for efficient machining with high quality surface finishes with excellent wear and adhesion resistance</li><li>Application: Recommended cermet for stable steel machining and high quality surface finish</li></ul><p>Product Details:</p><ul><li>Insert Style: CPMH</li><li>Insert Size: 25152</li><li>Chipbreaker: HQ</li><li>Insert Grade: PV720</li><li>Material: Cermet</li><li>Coating Process: PVD</li><li>Coating / Composition: TiCN (MEGACOAT NANO)</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3125</li><li>[IC] Inscribed Circle (mm): 7.94</li><li>[S] Thickness (Decimal Inch): 0.0938</li><li>[S] Thickness (mm): 2.38</li><li>[RE] Corner Radius (Decimal Inch): 0.0313</li><li>[RE] Corner Radius (mm): 0.79</li><li>[D1] Hole Diameter (Decimal Inch): 0.1378</li><li>[D1] Hole Diameter (mm): 3.50</li><li>Rake: Positive</li><li>[AN] Relief Angle (Degree): 11</li><li>Included Angle (Degree): 80</li><li>Primary Workpiece Material: Steel</li><li>Secondary Workpiece Material: Stainless Steel</li><li>Shape: Diamond</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 2</li><li>Application: Boring, Internal Facing</li><li>Usage Classification: Light Interruption</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing-Medium</li><li>Compatible Holders (Partial): A...SCLPR2.5…, A...SCLPL2.5…, A...SCLPR08…, A...SCLPL08…, S...SCLPR2.5…, S...SCLPL2.5…, S...SCLPR08…, S...SCLPL08…, E...SCLPR2.5…, E...SCLPL2.5…, E...SCLPR08…, E...SCLPL08…, C...SCLPR2.5…, C...SCLPL2.5…, C...SCLPR08…, C...SCLPL08…</li></ul><p >TN610 / TN620 / PV710 / PV720 Brochure</p>
