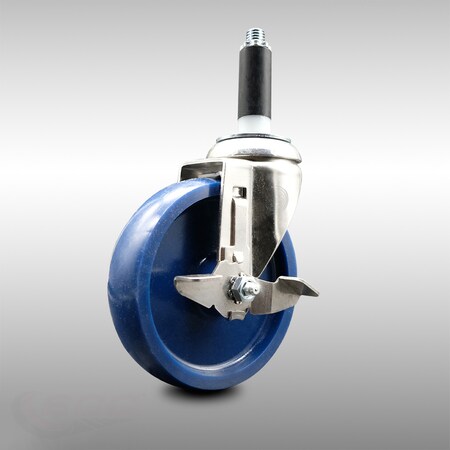

5 Inch 316SS Solid Polyurethane Swivel 7/8 Inch Expanding Stem Caster Brake

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, width1.25
Attribute016-1/8"
Attribute022-11/16"
Attribute037/8"
Attribute04, atoms5
Attribute055" x 1-1/4"
Attribute06, Attribute16Expanding adapter stem
Attribute07Plain Bore
Attribute08, Attribute09Top lock brake
Attribute10, Material, MaterialTypeSolid Polyurethane
Attribute11Swivel caster w/top lock brake
Attribute12316 Polished Stainless Steel
Attribute13300
Attribute1460-65 D
Attribute15-50 degrees F to 180 degrees F
Attribute17, Model, ModelNumber, Model_numberSeries #20
AttributeKey00, width_AttribWheel Width
AttributeKey01, height_AttribMounting Height
AttributeKey02, length_AttribStem Length
AttributeKey03Stem Dia.
AttributeKey04Wheel Dia.
AttributeKey05Size
AttributeKey06Caster Stem Type
AttributeKey07Wheel Bearing Type
AttributeKey08Features
AttributeKey09Caster Swivel Lock Type
AttributeKey10Material
AttributeKey11Includes
AttributeKey12Finish
AttributeKey13Load Capacity
AttributeKey14Durometer
AttributeKey15Caster Temp. Range
AttributeKey16Mounting Type
AttributeKey17Model
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
DimensionUnitinch
Extra Product Name5 Inch 316SS Solid Polyurethane Swivel 7/8 Inch Expanding Stem Caster Brake
UPC734005038552
WeightUnitlbs
extendedLead26
extendedQty-2
height6.125
jsonUrlData924526ffbdad25e5923b
length2.6875
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-SS316EX20S514-SPUS-TLB-78
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG705421664
tierPrice187.87
urlhttps://www.zoro.com/service-caster-5-inch-316ss-solid-polyurethane-swivel-78-inch-expanding-stem-caster-brake-scc-ss316ex20s514-spus-tlb-78/i/G705421664/
ASINB09D3XJ1CL B09GCD64PD
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB09D3XJ1CL
Bullet_pointAll casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message. Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
ClassificationId511228
ColorSwivel - Top Lock Brake - 7/8" Stem
Currency, CurrencyCodeUSD
Decimal_value5.0
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0734005038552 734005038552
FetchTime1697684275 1704417562
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleService Caster Brand 5 Inch 316 Stainless Steel Light Duty Expanding Stem Caster Wheel Solid Polyurethane Wheel and 7/8” Stem – 300lbs./Caster–Swivel Caster with Locking Brake
Item_type_keywordstem-casters
KeywordSCC-SS316EX20S3514-SPUS-78-4
Linkhttps://m.media-amazon.com/images/I/3112F3f4RUL._SL75_.jpg https://m.media-amazon.com/images/I/3112F3f4RUL.jpg https://m.media-amazon.com/images/I/41IsnvgFmeL._SL75_.jpg https://m.media-amazon.com/images/I/41IsnvgFmeL.jpg https://m.media-amazon.com/images/I/41wjFhSbxlL.jpg https://m.media-amazon.com/images/I/51KpOUP3oWL.jpg https://m.media-amazon.com/images/I/51qB5AUWQ2L._SL75_.jpg https://m.media-amazon.com/images/I/51qB5AUWQ2L.jpg https://m.media-amazon.com/images/I/51ugkndC3iL._SL75_.jpg https://m.media-amazon.com/images/I/51ugkndC3iL.jpg https://m.media-amazon.com/images/I/617lqCa8iaL.jpg https://m.media-amazon.com/images/I/71I2lB8vNVL.jpg
List_price0.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB09GCD64PD
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameINDUSTRIAL_WHEELS
Product_descriptionListing is for one (1) Service Caster Series #20 7/8" expanding stem 316 stainless steel swivel caster with a 5" diameter by 1-1/4" wide solid polyurethane wheel and a top locking brake capable of supporting 300 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster's 316 stainless steel solid polyurethane wheel casters. Built with 316 stainless steel, which contains additional molybdenum and nickel content, makes this caster more corrosion resistant than standard 304 stainless steel. Molded as one solid piece, the non-marking, non-marring polyurethane wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment.
Product_site_launch_date2021-08-19T12:39:00.065Z
Size5" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/3112F3f4RUL._SL75_.jpg
Unitinches
Unitspixels
VariantMAIN PT01 PT02 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG705421664111 @ $87.87

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Service Caster Brand 5 Inch 316 Stainless Steel Light Duty Expanding Stem Caster Wheel Solid Polyurethane Wheel and 7/8” Stem – 300lbs./Caster–Swivel Caster with Locking Brake
Brand: Service Caster
Listing is for one (1) Service Caster Series #20 7/8" expanding stem 316 stainless steel swivel caster with a 5" diameter by 1-1/4" wide solid polyurethane wheel and a top locking brake capable of supporting 300 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster's 316 stainless steel solid polyurethane wheel casters. Built with 316 stainless steel, which contains additional molybdenum and nickel content, makes this caster more corrosion resistant than standard 304 stainless steel. Molded as one solid piece, the non-marking, non-marring polyurethane wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment.
Details
  • These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
  • All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_WHEELS
ModelSeries #20
Part numberSCC-SS316EX20S514-SPUS-TLB-78
Items per pack1
LabelService Caster
ManufacturerService Caster
