3 Inch SS High Temp Phenolic Top Plate Caster Set with 2 Brake 2 Rigid SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute003
Attribute01, width1.25
Attribute02475 degrees F continuous usage and 525 degrees F intermittent usage
Attribute03, Model, ModelNumber, Model_numberSeries #20
Attribute04, Attribute102 casters with top lock brakes
Attribute05(2) swivel casters w/top lock brakes & (2) rigid casters
Attribute0690D
Attribute071-3/4" x 2-7/8" to 3"
Attribute084-1/8"
Attribute09Top Plate
Attribute112-1/2" x 3-5/8"
Attribute12, Material, MaterialTypeHigh Temperature Phenolic
Attribute13Polished Stainless Steel
Attribute14300
Attribute15, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Caster Temp. Range
AttributeKey03Series
AttributeKey04Features
AttributeKey05Type
AttributeKey06Durometer
AttributeKey07Plate Caster Bolt Hole Pattern
AttributeKey08, height_AttribMounting Height
AttributeKey09Caster Mounting Type
AttributeKey10Caster Swivel Lock Type
AttributeKey11Plate Size
AttributeKey12Material
AttributeKey13Finish
AttributeKey14Capacity (Lb.)
AttributeKey15Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name3 Inch SS High Temp Phenolic Top Plate Caster Set with 2 Brake 2 Rigid SCC
WeightUnitlbs
diameter, length, Decimal_value3.0
extendedLead26
extendedQty-2
height4.125
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPN, PartNumber, Part_numberSCC-SS20S314-PHSHT-TLB-2-R-2
qtyInStock0
tierPrice1317.68
urlhttps://www.zoro.com/service-caster-3-inch-ss-high-temp-phenolic-top-plate-caster-set-with-2-brake-2-rigid-scc-scc-ss20s314-phsht-tlb-2-r-2/i/G905429910/
ASINB07Y43RBGT B089772PC9
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07Y43RBGT
Bullet_pointBrake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on. Weight Capacity: 300 lbs Capacity/Caster
ClassificationId383663011 511228
Color2 Swivel w/2 Top Lock Brakes - 2 Rigid
Currency, CurrencyCodeUSD
DisplayNameHardware
Exterior_finishMetallic Polished
Externally_assigned_product_identifier, Identifier0670533927114 670533927114
FetchTime1682572828 1704716957
Height, Width1000 500 75
IdentifierTypeEAN UPC
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_nameStainless Steel High Temp Phenolic Swivel Top Plate Caster Set of 4 w/3" x 1.25" Brown Wheels-Includes 2 Swivel with Top Locking Brakes & 2 Rigid-1200 lbs Total Capacity-Service Caster Brand
Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity4
Item_type_keywordplate-casters
KeywordSCC-SS20S314-PHSHT-2-R-2
Linkhttps://m.media-amazon.com/images/I/410cCTsaxkL._SL75_.jpg https://m.media-amazon.com/images/I/410cCTsaxkL.jpg https://m.media-amazon.com/images/I/41Uu8ckBCGL._SL75_.jpg https://m.media-amazon.com/images/I/41Uu8ckBCGL.jpg https://m.media-amazon.com/images/I/514fZWHE7jL._SL75_.jpg https://m.media-amazon.com/images/I/514fZWHE7jL.jpg https://m.media-amazon.com/images/I/519MFXoed4L.jpg https://m.media-amazon.com/images/I/51MsE10TXxL._SL75_.jpg https://m.media-amazon.com/images/I/51MsE10TXxL.jpg https://m.media-amazon.com/images/I/51sx4tEsfuL._SL75_.jpg https://m.media-amazon.com/images/I/51sx4tEsfuL.jpg https://m.media-amazon.com/images/I/612KER3kvFL.jpg https://m.media-amazon.com/images/I/61KVZ0-kMmL.jpg https://m.media-amazon.com/images/I/61v3NJDa8EL.jpg https://m.media-amazon.com/images/I/71YLlguZx+L.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity300.0
Marketplace_idATVPDKIKX0DER
Name, ThemeCOLOR_NAME/SIZE_NAME
ParentAsinsB089772PC9
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductTypeWHEEL
ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for a a set of four (4) Service Caster Series #20 stainless steel casters, two (2) rigid and two (2) swivel casters with top locking brakes, with 3" diameter by 1-1/4" wide high temp phenolic wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2019-09-19T19:34:44.030Z
Rank1279256 1447583 505341 5709 578177 6801
Size3" Wheel
SkuSERVICE CASTER SCC-20S514-PHR-TLB-2-R-2
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Industrial & Scientific Plate Casters Stainless Steel High Temp Phenolic Swivel Top Plate Caster Set of 4 w/3" x 1.25" Brown Wheels-Includes 2 Swivel with Top Locking Brakes & 2 Rigid-1200 lbs Total Capacity-Service Caster Brand
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41Uu8ckBCGL._SL75_.jpg
Unitinches pounds
Unit_count4.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight4.9

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG905429910111 @ $317.68

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

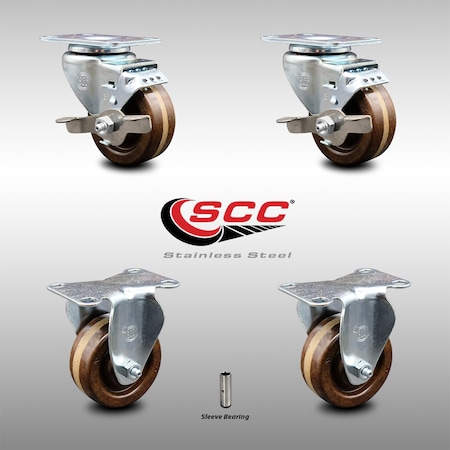

Stainless Steel High Temp Phenolic Swivel Top Plate Caster Set of 4 w/3" x 1.25" Brown Wheels-Includes 2 Swivel with Top Locking Brakes & 2 Rigid-1200 lbs Total Capacity-Service Caster Brand
Brand: Service Caster
Listing is for a a set of four (4) Service Caster Series #20 stainless steel casters, two (2) rigid and two (2) swivel casters with top locking brakes, with 3" diameter by 1-1/4" wide high temp phenolic wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 300 lbs Capacity/Caster
  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #20
Part numberSCC-SS20S314-PHSHT-TLB-2-R-2
Items per pack4
LabelService Caster
ManufacturerService Caster
