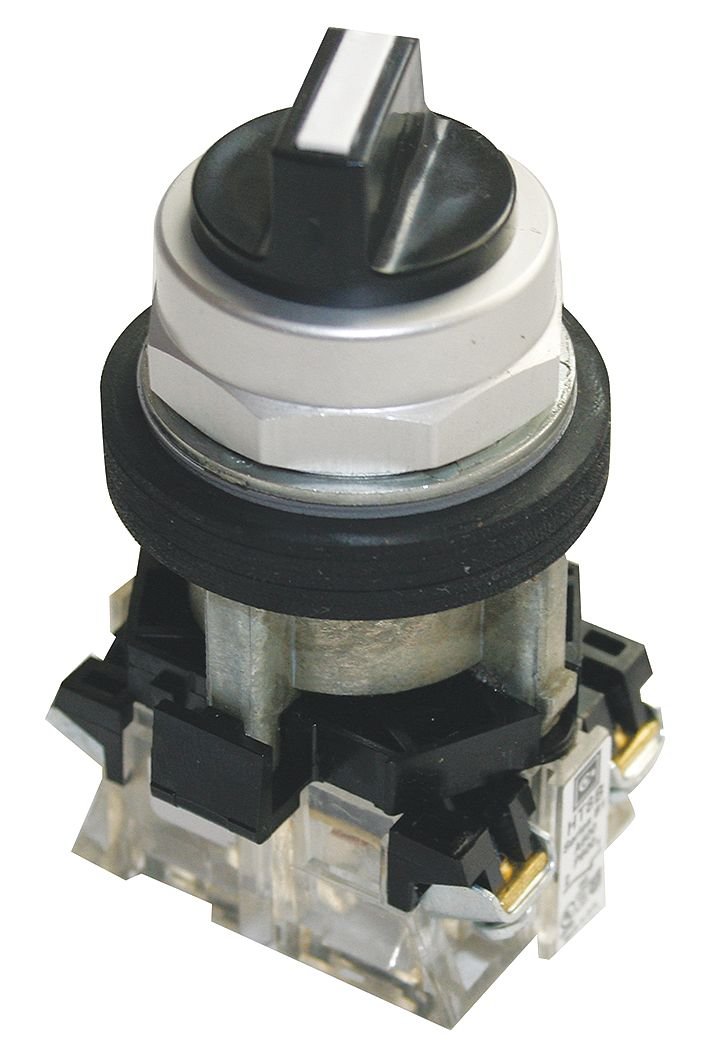

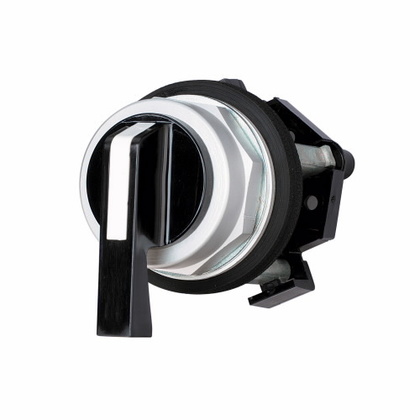

Eaton Non-Illum Selectr Swtch,30mm,2 Pos,Lever HT8JDH3AF1Q1 ZO-G4220133 - SIM Supply

This non-illuminated selector switch is engineered to protect against the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings. It also offers protection against the ingress of water from dripping, splashing, and hosedowns. The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure.<br /><br /> Item: Non-Illuminated Selector Switch<br /> Size: 30mm<br /> Position: 2<br /> Action: Maintained / Maintained<br /> Contact Form: 2NO/2NC<br /> Type of Operator: Lever<br /> Color: Black<br /> Key Removal: No Key<br /> Operator Head Material: Dielectric Polymer<br /> Basic Material: Metal<br /> Bezel Material: Anodized Aluminum<br /> Bezel Color: Chrome<br /> Contact Rating: 10A @ 600VAC<br /> NEMA Contact Rating Designation: A600/P600<br /> NEMA Rating: 1, 2, 3, 4, 4X, 12, 13<br /> IP Rating: 68<br /> Cam: 3A<br /> Switch Operation @ Position A: XOXO<br /> Switch Operation @ Position B: OXOX<br /> Switch Operation @ Position C: No Third Position<br /> Switch Operation @ Position D: No Fourth Position<br /> Standards: UL Listed, CSA Certified<br /> Includes: Assembled Pushbutton<br />
