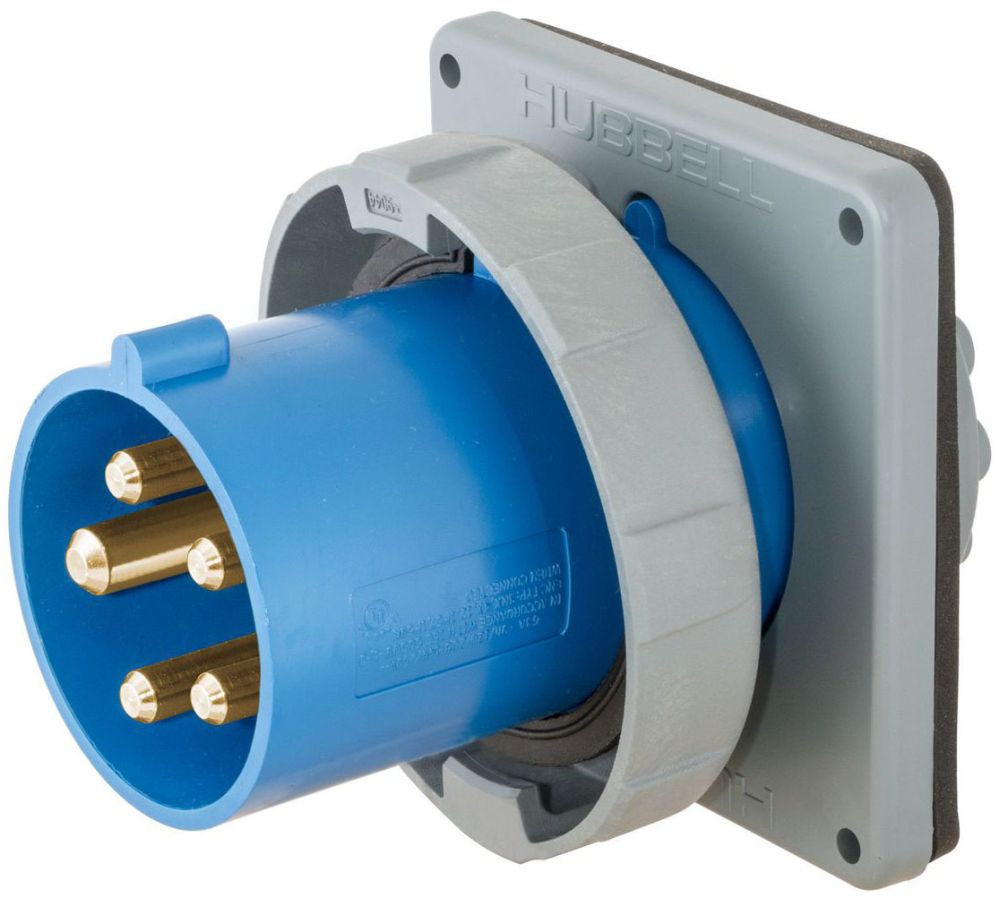

Hubbell Wiring Devices 4P5W 20A 120/208V Pin&sleeve Inlet Rohs Compliant: Yes - HBL520B9W

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating. This listing is for each. Amperage 20 Amperage Rating 20 Application High Ampacity Watertight Connections Approximate Weight 0.95 Brand WIRING DEVICE-KELLEMS Catalog Number HBL520B9W Color Blue Connection Pressure Screw Terminals Country of Origin USA Dielectric Strength Withstands 3000V Minimum in Environmental Conditions Watertight Insulation Insulated Body Manufacturer Hubbell Wiring Material Thermoplastic Mounting Screw Mount NEMA Configuration Non-NEMA NEMA Rating Non-NEMA Number Of Poles 4-Pole Number Of Wires 5-Wire Phase Three Phase Size Standard Sized Product Special Features Watertight Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032 Stock Status NONSTOCK Temperature Rating Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact Trade Size Standard Sized Product Type Watertight Inlet Voltage 3 Phase Y 120/208 Wattage 4, 160 Wire Size #14 AWG to #10 AWG Wire Size / Gauge #14 AWG to #10 AWG
