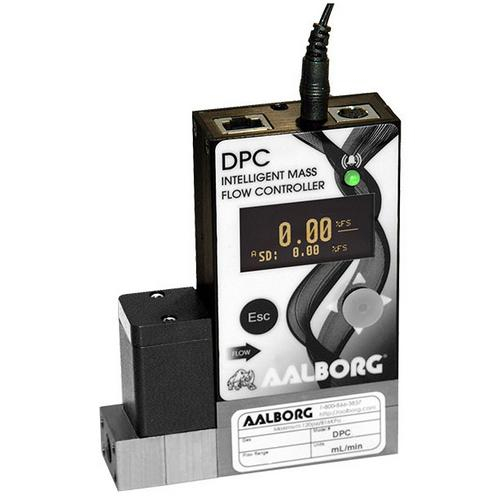

Order DPC47S-V0L6-AA2 by Aalborg DPC Precision Digital Mass Flow Controller - US Mega Store

Aalborg . DPC47S-V0L6-AA2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAalborg
Attribute00, Attribute22Please note that DPC Mass Flow Controller are designed to work only with clean, non-corrosive gases. Never try to control flow rates of liquids with any DPC.
Attribute01, Attribute23Performed at standard conditions 14.7 psia (101.4 kPa) and 70 °F (21.1 °C)
Attribute02, Attribute24Installation Level II; Pollution Degree II
Attribute03, Attribute25±(0.5% RD + 0.2% FS) at calibration temperature and pressure conditions after tare
Attribute04, Attribute26±0.2% of full scale
Attribute05, Attribute270.05% of full scale / °C or better
Attribute06, Attribute280.01% of full scale / psi (6.895 kPa) or better
Attribute07, Attribute29Default 150 ms (adjustable)
Attribute08, Attribute30< 5 seconds
Attribute09, Attribute31133% Full Scale
Attribute10, Attribute320.5% to 100% Full Scale / 200:1
Attribute11, Attribute3370&deg;F and 14.696 PSIA
Attribute12, Attribute34120 PSIG
Attribute13, Attribute3512 PSID
Attribute14, Attribute36145 PSIG
Attribute15, Attribute37Normally Closed
Attribute16, Attribute38-10 to +60 &deg;C (14 to 140 &deg;F)
Attribute17, Attribute39None
Attribute18, Attribute400 to 100% (Non-Condensing)
Attribute19, Attribute41IP40
Attribute20, Attribute42Linear 0-5 Vdc (3000 ohms min. load impedance)
Attribute21, Attribute43Linear 0-5 Vdc
AttributeKey00, AttributeKey22Flow Medium
AttributeKey01, AttributeKey23Calibrations
AttributeKey02, AttributeKey24Environmental (per IEC 664)
AttributeKey03, AttributeKey25Flow Accuracy (including Linearity)
AttributeKey04, AttributeKey26Repeatability
AttributeKey05, AttributeKey27Flow Temperature Coefficient
AttributeKey06, AttributeKey28Flow Pressure Coefficient
AttributeKey07, AttributeKey29Typical Flow Response Time
AttributeKey08, AttributeKey30Instrument Warm-Up Time
AttributeKey09, AttributeKey31Maximum Controllable Flow Range
AttributeKey10, AttributeKey32Operating Range / Turndown Ratio
AttributeKey11, AttributeKey33Mass Reference Conditions STP
AttributeKey12, AttributeKey34Maximum Internal Gas Pressure (Static)
AttributeKey13, AttributeKey35Maximum Instantaneous Differential Pressure Across Differential Sensor
AttributeKey14, AttributeKey36Proof Pressure
AttributeKey15, AttributeKey37Valve Type
AttributeKey16, AttributeKey38Operating Temperature
AttributeKey17, AttributeKey39Mounting Attitude Sensitivity
AttributeKey18, AttributeKey40Relative Gas Humidity Range
AttributeKey19, AttributeKey41Ingress Protection
AttributeKey20, AttributeKey42Analog Output Signals
AttributeKey21, AttributeKey43Analog Set Point Input Signals
CategoryL1Process Control & Automation
CategoryL2Indicators
CategoryL3Flow
CategoryL4Aalborg DPC47S-V0L6-AA2
ConditionNEW
Extra Product NameOrder DPC47S-V0L6-AA2 by Aalborg DPC Precision Digital Mass Flow Controller - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUDPC47S-V0L6-AA2
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Aalborg, DPC47S-V0L6-AA2, DPC Precision Digital Mass Flow Controller with Multi-Gas Functionality </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature </li> <li>Multi-Gas functionality: support for 90 different gases and gas mixes </li> <li>"User Defined Mixture" functionality allows to create and store up 20 custom gas mixes with up to 5 different gases each </li> <li>Quick (100-150 ms) response time </li> <li>Standard accuracy &plusmn; (0.5% RD + 0.2% FS) </li> <li>200 to 1 turn-down ratio </li> <li>Two programmable mass flow rate totalizers </li> <li>High, Low or In Range Alarms with preset action delay for Mass Flow, Temperature and Pressure </li> <li>User programmable mass flow rate Pulse Output (via SSR) </li> <li>Extensive Self Diagnostics with status LED or OLED indication </li> <li>All 3 user selectable analog input and output interfaces are standard: 0-5Vdc, 0-10Vdc, 4-20mA </li> <li>Two user selectable digital communication interfaces (RS-232 and RS-485) are standard </li> <li>Universal 12-26 Vdc power supply input </li> <li>Free, easy-to-use configuration and calibration software (RS-232 / RS-485) </li> <li>Programmable set point table with ramping up/down capability up to 16 steps </li> </ul> <p>DPC series precision digital mass flow controller provides accurate and stable control of mass flow rates of process gases. With simultaneous displays of Mass Flow, Volumetric Flow, Pressure and Temperature parameters it can be used in a variety of industries: scientific and analytical applications, bioreactors and surfacedepositions, gas sampling, manufacturing and metrology activities. DPC flow controllers support various functions including: user selectable local, analog, digital or program set point control, two programmable flow totalizers, low, high or range flow, temperature and pressure alarms, automatic zero adjustment (activated via local or communication interface), programmable SSR relay, programmable 0-5 Vdc, 0-10 Vdc or 4-20 mA analog inputs and outputs, user-programmable pulse output (via SSR) and extensive self-diagnostics functionalities. DPC differential pressure mass flow controller feature totalizer with batch processing mode (0.5% RD + 0.2%FS) standard accuracy, 200:1 turn-down ratio and less than 150 ms response time. Significant savings are apparent, comparing to the cost of a single DPC embodying these features with that of acquiring and installing multiple, application-specific devices. </p> <p>Operation of DPC flow controller is based on the measurement of the differential pressure across specially designed restrictor flow elements. The restrictor flow element is designed to establish laminar flow across the entire range of the instrument&rsquo;s operation from 0 to 133% of full scale range. A high accuracy and high resolution differential pressure sensor is utilized to measure pressure drop across a laminar fl ow channel, which is linearly proportional to volumetric flow rate. To convert volumetric flow into mass flow, high accuracy and high resolution absolute pressure and temperature sensors are utilized. Based on data from the sensors and gas properties from the built-in data base of the instrument, the micro-controller calculates volumetric and mass flow. </p>
tierPrice11919

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comDPC47S-V0L6-AA212 Weeks Factory Lead Time11 @ $1919.00
MegadepotDPC47S-V0L6-AA2111 @ $1919.00
heavydutydepot.comDPC47S-V0L6-AA2111 @ $1919.00
