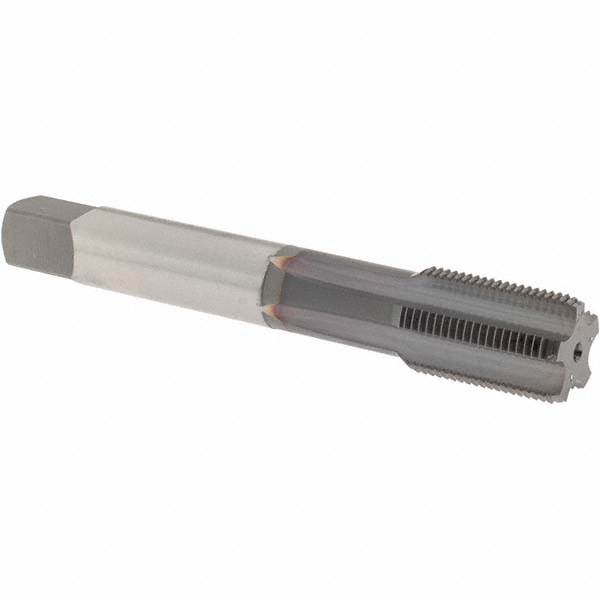

Straight Flute Hand Tap, M20-1.50, Bottoming, 5 Flutes, Metric Fine

These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S. The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. Coolant-through taps have holes that allow coolant to flow to their tip to reduce heat and friction during threading tasks. Powdered-metal with high-speed steel taps are an economical alternative to powdered-metal with cobalt taps. This listing is for each. Technical Specification Item Straight Flute Tap Thread Size M20x1.5 Thread Standard Metric Fine Tap Chamfer Bottom Tap Material Powdered Metal Tap Finish TiCN Thread Length 30.00 mm Overall Length 125.00 mm 75% Thread Drill Size 18.50 mm Thread Limit D6 Thread Direction Right Hand Number of Flutes 5 Tap Length Standard DIN Tap Shank Standard ANSI 55% Thread Drill Size 18.90 mm 65% Thread Drill Size 18.75 mm Coolant Fed Non-Coolant Through Extended Neck Yes Measurement System Metric Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper Primary Material Application ISO Code K, N Series 11052 Shank Dia. 16.56 mm Shank Length 63.00 mm Shank Type - Machining Straight Spiral Direction Neutral Square Size 12.42 mm Tap Grouping Individual Tap Style Straight Flute (Hand) Thread Limit / Class of Fit D6 Thread Pitch 1.50mm
