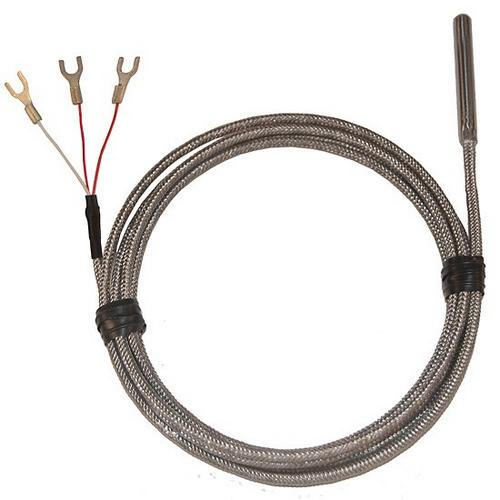

Order WD-93822-00 by Digi Sense Compact RTD Probe, 4ft SS Braid Cable - US Mega Store

Digi Sense . WD-93822-00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDigi Sense
Attribute00, Attribute12RTD
Attribute01, Attribute13-58
Attribute02, Attribute14900
Attribute03, Attribute15-50
Attribute04, Attribute16482
Attribute05, Attribute17+/-1.1°C, +/-0.12% of reading
Attribute06, Attribute18Spade Lugs
Attribute07, Attribute19316 Stainless Steel
Attribute08, Attribute201.5
Attribute09, Attribute210.1875
Attribute10, Attribute22Braided SS
Attribute11, Attribute2348
AttributeKey00, AttributeKey12Probe Type
AttributeKey01, AttributeKey13Min Temperature (° F)
AttributeKey02, AttributeKey14Max Temperature (° F)
AttributeKey03, AttributeKey15Min Temperature (° C)
AttributeKey04, AttributeKey16Max Temperature (° C)
AttributeKey05, AttributeKey17Temperature Accuracy
AttributeKey06, AttributeKey18Connector Type
AttributeKey07, AttributeKey19Sheath material
AttributeKey08, AttributeKey20Sheath Length (in)
AttributeKey09, AttributeKey21Sheath Diameter (in)
AttributeKey10, AttributeKey22Cable Type
AttributeKey11, AttributeKey23Cable Length (in)
CategoryL1Test Equipment
CategoryL2Leads & Probes
CategoryL3Digi Sense WD-93822-00
ConditionNEW
Extra Product NameOrder WD-93822-00 by Digi Sense Compact RTD Probe, 4ft SS Braid Cable - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWD-93822-00
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Digi-Sense, WD-93822-00, Compact RTD Probe, Length 1.5", Diameter .188", 4ft SS Braid Cable </strong> </p> <p><strong>Features: </strong> </p> <ul><li>This probe are ideal for use in ovens or environments with continuous high temperature </li> <li>Ideal for log trm istallation in hrsh idustrial evironments </li> <li>Time Constant: 3 seconds or greater </li> </ul> <p>Maximum error for probe assembly is +/-1.1&deg;C + 0.12% of reading below 300&deg;F, +/-0.35% of reading above 300&deg;F. Alpha coefficient is 0.003850 omega / omega / &deg;C (DIN IEC 751). Resistance at ice point (0&deg;C) is 100 omega. Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handle are rated to 220&deg;F (104&deg;C); PVC handle are rated to 200&deg;F (93&deg;C); Stainless Steel handle are rated at 450&deg;F (232&deg;C); Mini Connector are rated to 392&deg;F (200&deg;C). </p>
tierPrice1108.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWD-93822-001-211 @ $108.70
MegadepotWD-93822-00111 @ $93.54
