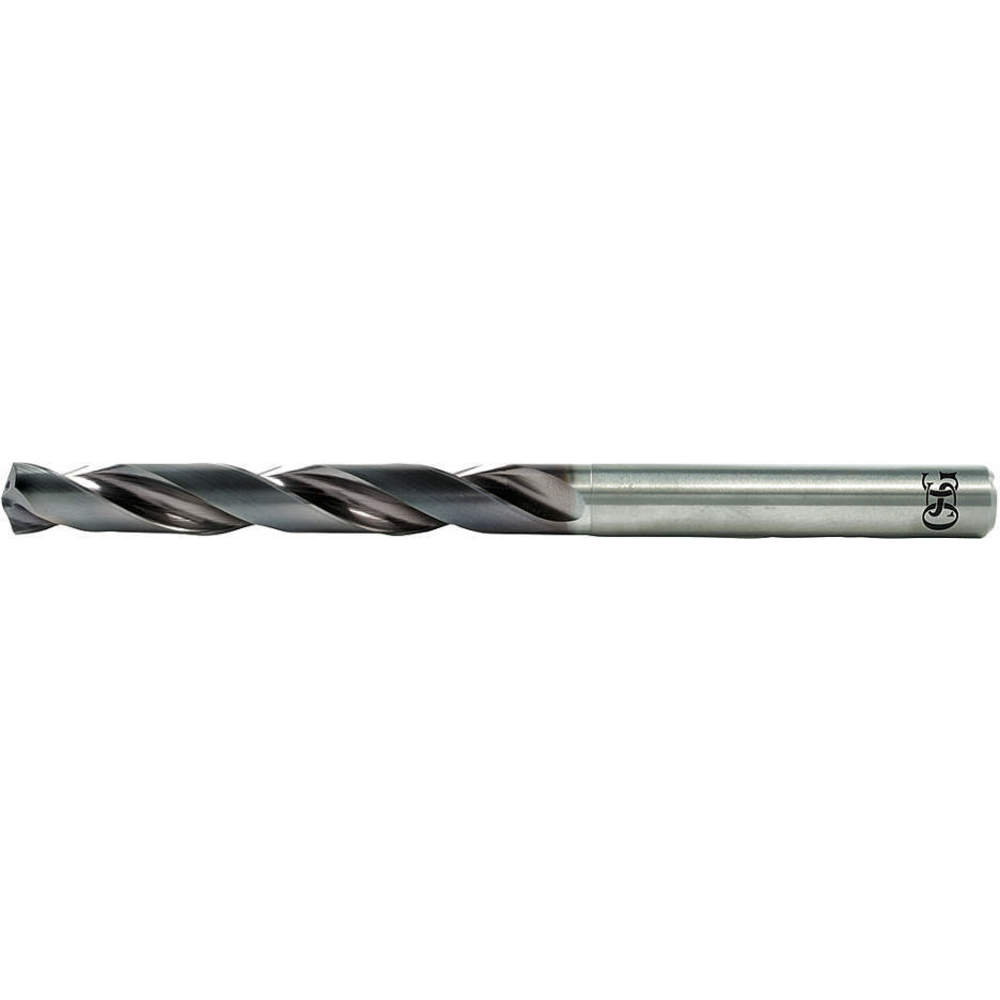

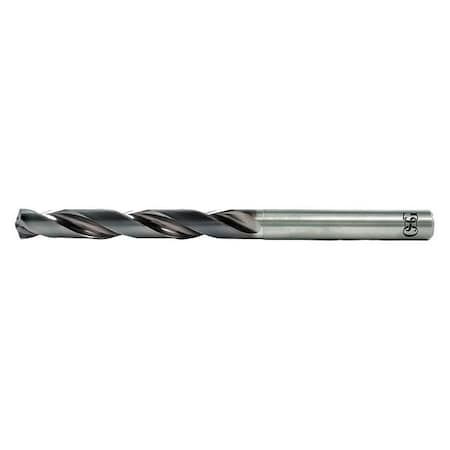

Osg HP255-3543 | Jobber Drill 9mm 140 Carbide | 33PA39 | Raptor Supplies Worldwide

These drill bits come in sizes expressed in millimeters. They have a TiAlN coating that withstands high temperatures and protects the bits from wear during high-speed, dry machining applications with difficult-to-machine ferrous metals. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder. This listing is for each. Technical Specification Item Jobber Length Drill Bit Drill Bit Size 9.00 mm Decimal Equivalent 0.3543 Measurement System Metric Material - Machining Carbide Finish - Machining TiAlN Drill Bit Point Angle 140 Degrees Drill Bit Point Type R Thinning Point Coolant Fed Coolant Through Number of Coolant Holes 2 Flute Type Spiral Number of Flutes 2 Flute Length 61.00 mm Maximum Drilling Depth 61.00 mm Helix Angle 30 Degrees Cutting Direction Right Hand Shank Type - Machining Straight Shank Dia. 10.00 mm Shank Length 42.00 mm Overall Length 103.00 mm Depth:Dia. Ratio 5xD Drill Length Class Jobber Length Drill Bit Grouping Individual Series HP255 Standards Not Rated Drill Diameter Tolerance +0.006/+0.021 mm Sheeter Drill No Material Grade - Machining High Performance Primary Material Application Cast Iron, Hardened Steel, Stainless Steel, Steel, Tool and Die Steel Primary Material Application ISO Code H, K, M, P Secondary Material Application Aluminum, Hardened Steel, Nickel, Stainless Steel, Titanium Secondary Material Application ISO Code H, M, N, S
