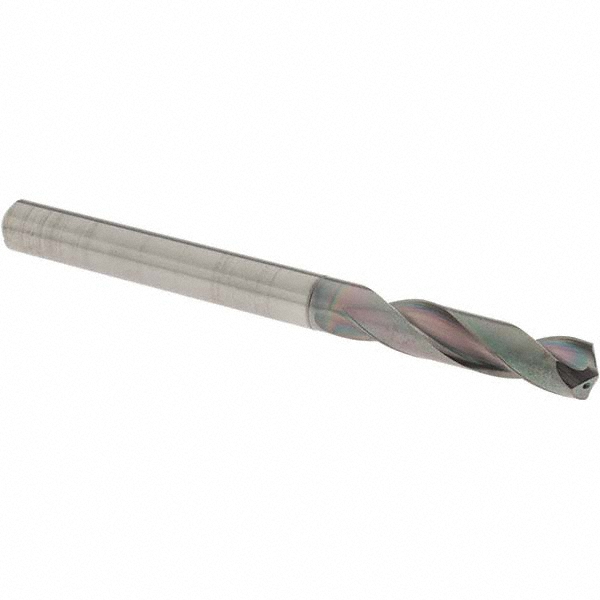

Carbide Drill, 94.00mm L, 7.90mm Shank Dia
Brand: OSG
'Carbide Drill, Metric, Drill Bit Size 7.94mm, Decimal Equivalent 0.3126, Drill Bit Point Angle 140 Degrees, Drill Bit Material Solid Carbide, Drill Bit Finish EgiAs, Shank Type Straight, Flute Type Spiral, Coolant Through Yes, Overall Length 94.00mm, Cutting Direction Right Hand, Grade High Performance, Shank Dia. 7.90mm, Flute Length 40.00mm, Point Type X Thinning, List Number 6500, Metalworking, Number of Flutes 2'
Details
- <b>Price For:</b> Each <b>Drill Bit Point Angle</b>: 140 Degrees <b>Drill Bit Material</b>: Solid Carbide <b>Flute Length</b>: 40.00mm <b>List Number</b>: 6500
- <b>Application</b>: For Aluminum : 6061, 7071, Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 300, Stainless Steels : 400, Stainless Steels : 17-4PH, Nickel Alloy: Inconel, Titanium: 6Al4V, Hardened Steels : 35 HrC, Hardened Steels : 35-45 HrC, Hardened Steels : 45-50 HrC <b>Flute Type</b>: Spiral <b>Drill Bit Dimension Type</b>: Fractional Inch
- <b>Coolant Through</b>: Yes <b>Overall Length</b>: 94.00mm <b>Decimal Equivalent</b>: 0.3125 <b>Number of Flutes</b>: 2 <b>Drill Bit Size</b>: 5/16" <b>Grade</b>: High Performance <b>Shank Dia.</b>: 7.90mm <b>Drill Bit Finish</b>: EgiAs <b>Cutting Direction</b>: Right Hand <b>Item</b>: Screw Machine Drill Bit <b>Depth x Dia. Ratio</b>: 3xD <b>Shank Type</b>: Straight <b>Point Type</b>: X Thinning <b>Depth:Dia. Ratio</b>: 3xD <b>Standards</b>: Not Rated <b>Coolant Fed</b>: Coolant Through
- <b>Series</b>: A-Drill <b>Material - Machining</b>: Carbide <b>Finish - Machining</b>: EgiAs <b>Secondary Material Application</b>: Aluminum. Nickel Alloy. Stainless Steel <b>Drill Diameter Tolerance</b>: +0.000/-0.022mm <b>Primary Material Application ISO Code</b>: H, K, P, S <b>Sheeter Drill</b>: No <b>Primary Material Application</b>: Cast Iron, Hardened Steel, Steel, Titanium, Tool and Die Steel <b>Material Grade - Machining</b>: High Performance
- <b>Drill Bit Point Type</b>: X Thinning Point <b>Drill Length Class</b>: Screw Machine Length <b>Measurement System</b>: Fractional Inch <b>Shank Type - Machining</b>: Straight <b>Shank Length</b>: 54.00mm <b>Number of Coolant Holes</b>: 2 <b>Secondary Material Application ISO Code</b>: M, N, S <b>Maximum Drilling Depth</b>: 40.00mm <b>Country of Origin (subject to change)</b>: Multiple
Listing
| Product group | BISS Basic |
|---|---|
| Product type | DRILL_BITS |
| Model | 650031211 |
| Part number | 650031211 |
| Items per pack | 1 |
| Label | OSG |
| Manufacturer | OSG |
