Kyocera

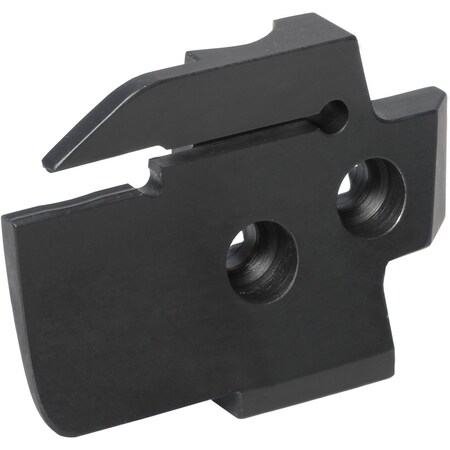

<p>Kyocera KGDF Face Grooving feature MEGACOAT Coating Technology for Long Tool Life and High Efficiency Machining</p><ul><li>Wide Range of Chipbreakers Available for Face Grooving</li><li>MEGACOAT Coating Technology for Long Tool Life</li><li>High Clamping Strength</li></ul><p>Product Details:</p><ul><li>Grooving Type: Face Grooving </li><li>Hand of Blade: Left-Hand</li><li>Series: KGDF</li><li>Toolholder Style: Switchblade </li><li>[CW] Insert Cutting Width (Decimal Inch): 0.118110236220472</li><li>[CW] Insert Cutting Width (mm): 3</li><li>[DAXN] Minimum Face Groove Diameter (Decimal Inch): 1.181</li><li>[DAXN] Minimum Face Groove Diameter (mm): 29.9974</li><li>[DAXX] Maximum Face Groove Diameter (Decimal Inch): 1.575</li><li>[DAXX] Maximum Face Groove Diameter (mm): 40.005</li><li>[L] Blade Length (Decimal Inch): 1.864</li><li>[L] Blade Length (mm): 47.3456</li><li>[T] Insert Seat Depth (Decimal Inch): 0.512</li><li>[T] Insert Seat Depth (mm): 13.0048</li><li>[A] Insert Seat Width (Decimal Inch): 0.079</li><li>[A] Insert Seat Width (mm): 2.0066</li><li>Coolant Through: No</li><li>Insert Holding Method: Clamp Screw</li><li>Application: Face Grooving</li><li>Blade Material: Steel</li><li>Unit of Measure: Inch</li><li>Compatible Toolholder Hand: Right-Hand</li><li>Compatible Toolholder (Partial): KGDR....-C, KGDSR....-C</li><li>Compatible Inserts (Partial): GDFM 3020…</li></ul>
