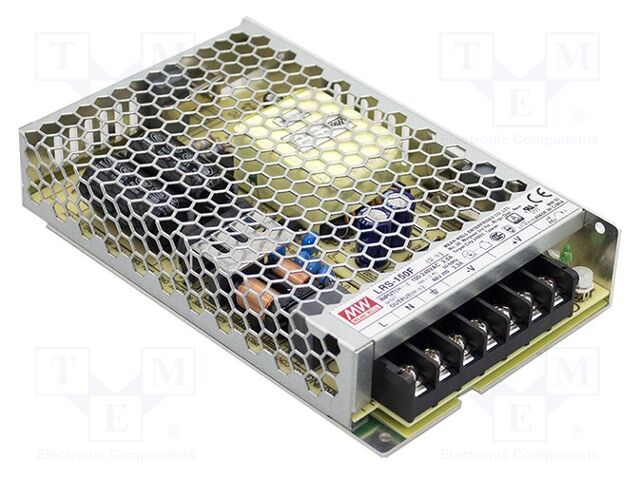

Mean Well Power Supply, Ac-Dc, 36V, 4.3A - LRS-150F-36

This item will ship LRS-150F-36*1pcs,enjoy shopping and best wishes!

<b>Features</b><br>No load power consumption <0.2W for 35W/50W;<0.3W for 75W/100W<br>Universal AC input / Full range<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections: Short circuit / Overload / Over voltage<br>Cooling by free air convection<br>Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances<br>Operating altitude up to 5000 meters<br>High efficiency, long life and high reliability<br>LED indicator for power on<br>Low cost<br>3 years warranty

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Withstand 300VAC surge input for 5 second</p> <p>No load power consumption<0.5W</p> <p>Miniature size and 1U low profile</p> <p>High operating temperature up to 70°C</p> <p>Protections: Short circuit / Overload / Over voltage /Over temperature</p> <p>Cooling by free air convection</p> <p>Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances</p> <p>Operating altitude up to 5000 meters</p> <p>Withstand 5G vibration test</p> <p>High efficiency, long life and high reliability</p> <p>LED indicator for power on</p> <p>100% full load burn-in test</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:85~264VAC ; 120~370VDC</p> <p>AC inrush current (max.):Cold start 60A/230VAC</p> <p>Overload:110 ~ 140% rated output power;Protection type : Hiccup mode, recovers automatically after fault condition is removed</p> <p>Over voltage protection:Protection type : Shut down o/p voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC</p> <p>Working temperature:-30~ +70°C(Refer to "Derating Curve")</p> <p>Safety standards:UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 approved</p> <p>EMC standards:Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2 Class A(≤80% Load ),EN61000-3-3</p> <p>Dimension (LxWxH)(mm):159x 97x 30 mm</p>

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!
