Omron Automation . X10GW22B
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Master Electronics | X10GW22B | 1 | 363 | 1 | 1 @ $29.12, 2 @ $28.11 |
| Guardian | 54045174 | 1 | 1 | ||
 bscsource.com | X10GW22B | 1 | 1 | ||
| Airline Hydraulics | OMRON X-10GW22-B | 1 | 1 | 1 @ $25.53 | |
 Misumi USA | X-10GW22-B | 1 | 1 | 1 @ $36.64, 2 @ $23.78, 3 @ $23.78 | |
| X-10GW22-B | 1 | 1 | 1 @ $21.07 | ||
| AC2JTX | 1 | 1 | 1 @ $39.11 | ||
 Zoro | G2457016 | 1 | 1 | 1 @ $14.79 | |
| Waldom | OMRON ELECTRONICS X-10GW22-B | 1 | 1 | ||
| Allied Electronics | 70179341 | 1 | 1 | ||
| us.rs-online.com | 70179341 | 1 | 5 | 1 | 1 @ $37.82, 3 @ $35.93 |
| RS Delivers | 752-9810 | 1 | 160 | 1 | 1 @ $18.42 |
| RS Online | 7529810 | 1 | 1 | ||
 Radwell | X-10GW22-B | 1 | 1 | ||
| sustainablesupply.com | C1181249 | 1 | -2 | 1 | 1 @ $27.41 |
 Amazon | B00208J6XM | 1 | 1 | ||
| X-10GW22-B | 1 | 1 | |||
| Digi-Key | Z11319-ND | 1 | 40 | 1 | |
| 2KRP8 | 1 | 34 | 1 | 1 @ $24.71 | |
| X10GW22B | 1 | 322 | 1 | 1 @ $16.63, 10 @ $15.12, 25 @ $12.23, 50 @ $11.71, 100 @ $11.24, 250 @ $10.94, 500 @ $10.66 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

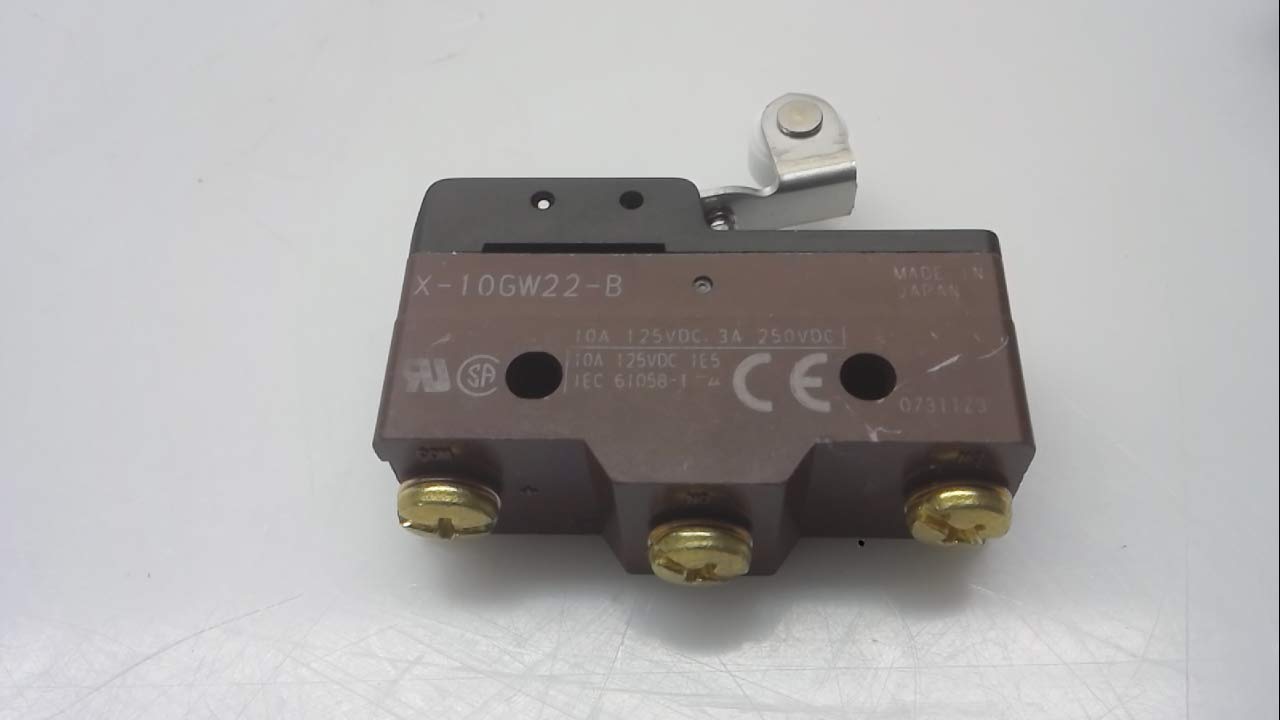

Swch, 10A, SPDT, Shrt Hinge Roller Lever
Brand: Omron
'Industrial Snap Switch, Series X, Type of Actuator Short Hinge Roller Lever, 1.05 In. Actuator Length, Contact Form SPDT, Current Rating 10A, Voltage Rating 125VDC, Terminal Type Screw, Operating Force 7.77 oz., Max. Pretravel 0.225 In., Release Force 1.24 oz., Differential Travel 0.067 In., Over Travel 0.090 In., Length 1.94 In., Height 1.16 In., Depth 0.69 In., Mounting Dimension 1.00 In. Centers, Operating Temp. Range -13 Degrees to 176 Degrees F, Housing Material Phenolic'
Details
- Price For: Each Mounting Dimension: 1.00" Centers Item: Industrial Snap Switch Type of Actuator: Short Hinge Roller Lever Mounting Dimension: 1.00" Centers Terminal Type: Screw Standards: UL/ CSA/ LLOYD/ SEV/ IEC 1058-1 Over Travel: 0.090" Depth: 0.69" Differential Travel: 0.067" Release Force: 1.24 oz. Max. Pretravel: 0.225" Actuator Length: 1.05" Current Rating: 10A
- Operating Force: 7.77 oz. Housing Material: Phenolic Operating Temp. Range: -13 Degrees to 176 Degrees F Contact Form: SPDT Voltage Rating: 125VDC Length: 1.94" Series: X Height: 1.16" Country of Origin (subject to change): Japan
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_SWITCH |
| Model | X-10GW22-B |
| Part number | X-10GW22-B |
| Items per pack | 1 |
| Label | OMRON |
| Manufacturer | OMRON |
Catalog
| Feature | Price For: Each Mounting Dimension: 1.00" Centers Item: Industrial Snap Switch Type of Actuator: Short Hinge Roller Lever Mounting Dimension: 1.00" Centers Terminal Type: Screw Standards: UL/ CSA/ LLOYD/ SEV/ IEC 1058-1 Over Travel: 0.090" Depth: 0.69" Differential Travel: 0.067" Release Force: 1.24 oz. Max. Pretravel: 0.225" Actuator Length: 1.05" Current Rating: 10A |
|---|---|
| Category | Industrial & Scientific |
| MPN | X-10GW22-B |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | OMRON |
Omron X-10GW22-B General Purpose Basic Switch, Built In Magnetic Blowout, Screw Terminal, Short Hinge Roller Lever, 0.9mm Contact Gap, 10A at 125VDC Rated Current
Brand: Omron
Omron X-Series General purpose basic switch having 1 NO - 1 NC contacts performs switching operation by 2.16 N force with the input voltage as well as current rating of 125 VDC and 10 A respectively. Brand Name|Omron#MFR Part Number|X10GW22B#UNSPSC|39122243#Item|Basic Switch#Type|General Purpose#Voltage Rating|125 VDC#Amperage Rating|10 A#Operating Force|2.16 N#Release Force|0.34 N#Contact Configuration|1 NO - 1 NC#Actuator Type|Short Hinge Roller Lever#Contact Form|SPDT#Travel|2.4 mm Over Travel, 1.7 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact, Stainless Steel Lever#Temperature Range|-25 to 80 deg C#Enclosure Type|IP00#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines
Details
- Direct Current Switch with Built-in Magnetic Blowout.
- Incorporates a small permanent magnet in the contact mechanism to deflect the arc to effectively extinguish it.
- Same shape and mounting procedures as the Z Basic Switches.
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRONIC_SWITCH |
| Model | final carrera ind. |
| Part number | X-10GW22-B |
| Items per pack | 1 |
| Label | Omron |
| Manufacturer | Omron |
Catalog
| Feature | Direct Current Switch with Built-in Magnetic Blowout. |
|---|---|
| Category | Industrial & Scientific |
| MPN | X-10GW22-B |
| EAN | 4536854245084 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | Omron |
