Omron . S8VS-12024

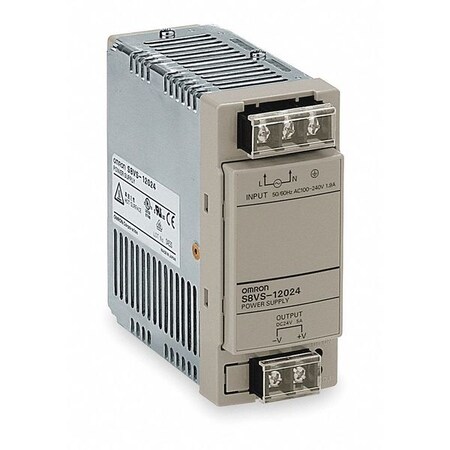

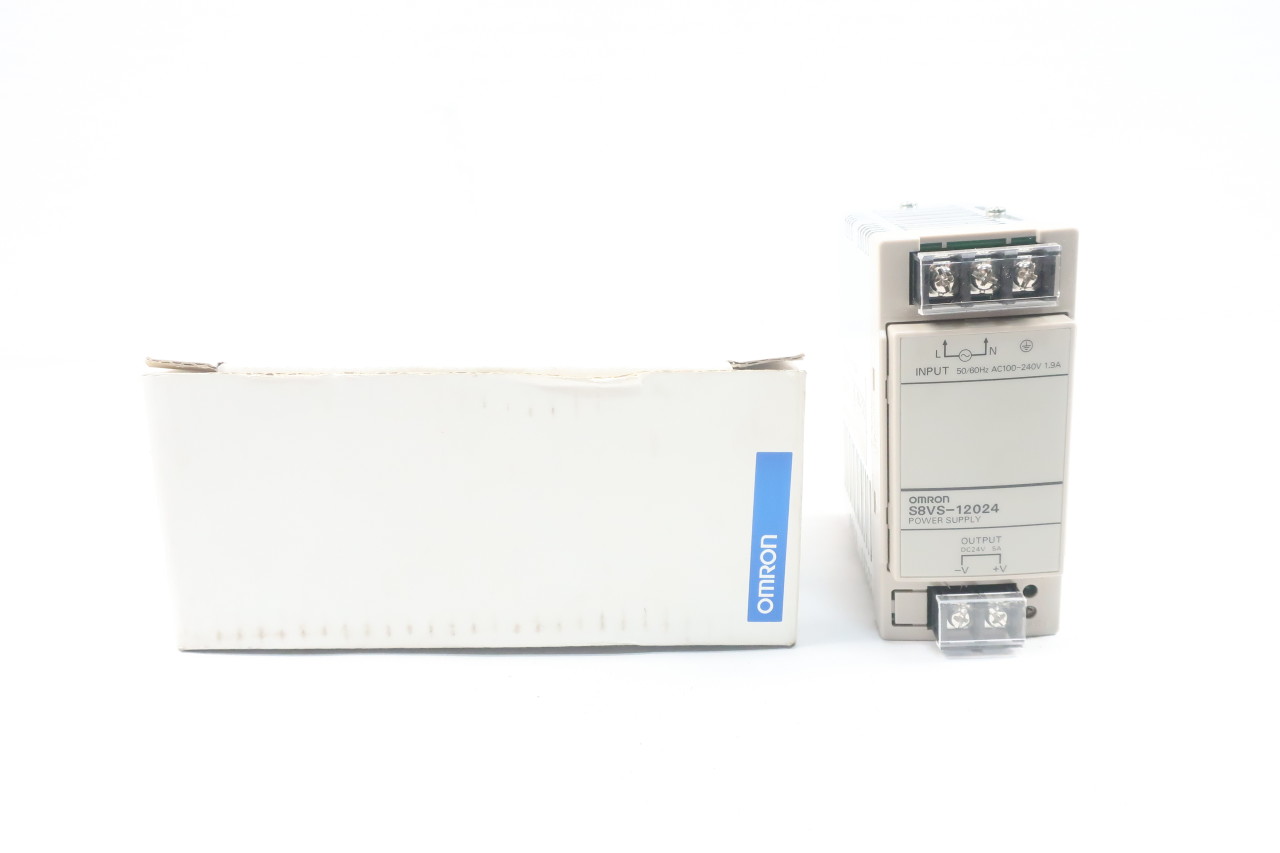

Omron S8VS-12024 Power Supply

[Power rating] 120 W <br>[Efficiency] 84 % TYP. (At 100 VAC input), <br>87 % TYP. (At 200 VAC input) <br>[Rated input voltage] 100 to 240 VAC <br>[Allowable-input voltage variable range] 85 to 264 VAC,80 to 370 VDC <br>[Note at DC input] The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC). <br>[Frequency] 50/60 Hz (47 to 450 Hz Single-phase) <br>[Rated input current] 1.5 A TYP. (At 100 VAC input) <br>0.71 A TYP. (At 200 VAC input) <br>[Power factor] 0.9Min. <br>[Harmonic Current] EN61000-3-2 <br>[Leakage current] 0.5 mA Max. (At 100 VAC input) <br>1.0 mA Max. (At 200 VAC input) <br>[Inrush current] 14 A TYP. (At 100 VAC input) <br>28 A TYP. (At 200 VAC input) <br>[Output voltage] 24 VDC <br>[Ripple] 2 %(p-p) Max. <br>60 mV Max. (Under the rated I/O conditions.) <br>[Rated output current] 5 A <br>[Series operation] Yes (Up to 2 Power Supplies with external diode) <br>[Applicable standard] UL: Standard No.: UL Listed: UL508 (Listing, Class 2: Per UL1310), UL UR: UL60950-1 (Recognition) <br>CSA: Standard No.: cUL: CSA C22.2 No.107.1 (Class 2: Per No.223), cUR: CSA C22.2 No.60950-1 <br>EN: EN50178, EN60950-1 <br>EC Directive (EMC Directive): EMI: EN61204-3 Class B <br>Emission Enclosure: Conforms to EN55011 Group 1 Class B <br>Emission AC mains: Conforms to EN55011 Group 1 Class B and based on FCC Class A <br>Harmonic Current: EN61000-3-2 <br>EMS: EN61204-3 High severity levels <br>VDE: VDE0160, VDE0805 Teil 1 <br>SEMI: F47-0200 (200 VAC input) <br>[Output indicator] Yes (color: green) <br>[Heat radiation] Natural air-cooling <br>[Construction] Covered type <br>[Terminal type] Screw terminal <br>[Mounting type] DIN Rail mounting type <br>[Weight (Main)] Approx. 550 g<br><br><br>1
