PCR18-8-8-SS, 1/2" x 1/2" Four Beam Coupling, Stainless | Ruland

Ruland . PCR18-8-8-SS

Gallery

Attributes

Brand name, Manufacturer name, BrandRuland
ManufacturerRuland Ruland Manufacturing
Attribute00, Attribute010.5000 in
Attribute02, Attribute030.695 in
Attribute041.125 in
Attribute05+0.001 in / -0.000 in
Attribute061.500 in
Attribute07+0.0000 in / -0.0005 in
Attribute08M4
Attribute09Alloy Steel
Attribute103.0 mm
Attribute11Black Oxide
Attribute124.6 Nm
Attribute132 ea
Attribute1411.5 lb-in
Attribute153.0°
Attribute1623 lb-in
Attribute170.015 in
Attribute1846 lb-in
Attribute190.010 in
Attribute200.111 Deg/lb-in
Attribute210.0603 lb-in
Attribute226,000 RPM
Attribute23, Attribute24, Attribute25Yes
Attribute28Type 303 Austenitic, Non-Magnetic Bar
Attribute29-40°F to 350°F (-40°C to 176°C)
Attribute30Bright, No Plating
Attribute31, Label, Man, Publisher, StudioRuland Manufacturing
Attribute32USA
Attribute33, Weight0.278000
Attribute34, UPC, EAN, EANList, UPCList634529049938
Attribute358483.60.8000
Attribute3631163003
Attribute37Torque ratings are at maximum misalignment.
Attribute38Performance ratings are for guidance only. The user must determine suitability for a particular application.
Attribute39Torque ratings for the couplings are based on the physical limitations/failure point of the machined beams. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the machined beams. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the machined beams. Please consult technical support for more assistance.
AttributeKey00Bore (B1)
AttributeKey01Small Bore (B2)
AttributeKey02B1 Max Shaft Penetration
AttributeKey03B2 Max Shaft Penetration
AttributeKey04, height_Attrib, width_AttribOuter Diameter (OD)
AttributeKey05Bore Tolerance
AttributeKey06, length_AttribLength (L)
AttributeKey07Recommended Shaft Tolerance
AttributeKey08Cap Screw
AttributeKey09Screw Material
AttributeKey10Hex Wrench Size
AttributeKey11Screw Finish
AttributeKey12Seating Torque
AttributeKey13Number of Screws
AttributeKey14Dynamic Torque Reversing
AttributeKey15Angular Misalignment
AttributeKey16Dynamic Torque Non-Reversing
AttributeKey17Parallel Misalignment
AttributeKey18Static Torque
AttributeKey19Axial Motion
AttributeKey20Torsional Stiffness
AttributeKey21Moment of Inertia
AttributeKey22Maximum Speed
AttributeKey23Full Bearing Support Required?
AttributeKey24Zero-Backlash?
AttributeKey25Balanced Design
AttributeKey26Torque Wrench
AttributeKey27Recommended Hex Key
AttributeKey28Material Specification
AttributeKey29Temperature
AttributeKey30Finish Specification
AttributeKey31Manufacturer
AttributeKey32Country of Origin
AttributeKey33, Weight_AttribWeight (lbs)
AttributeKey34UPC
AttributeKey35Tariff Code
AttributeKey36UNSPC
AttributeKey37Note 1
AttributeKey38Note 2
AttributeKey39Note 3
AttributeKey40Prop 65
DimensionUnitinch
Extra Product NamePCR18-8-8-SS, 1/2" x 1/2" Four Beam Coupling, Stainless | Ruland
WeightUnitlbs
diameter, height, width1.125
keywordsPCR18-8-8-SS, Beam Coupling, Four Beam Coupling
length1.5
moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, SKU, Part Number, Keyword, Model, ModelNumber, Model_number, PartNumber, Part_numberPCR18-8-8-SS
qtyInStock-2
qtySourceFieldMap
snippetRuland part number PCR18-8-8-SS is a 303 stainless steel four beam coupling with 1/2" x 1/2" bores. Download a 2D/3D CAD file or purchase the PCR18-8-8-SS directly from the manufacturer.
tierMinQty210
tierMinQty325
tierMinQty450
tierPrice1170.29
tierPrice2154.8
tierPrice3129.01
tierPrice4116.1
Product GroupBISS
ASINB0060LT5BS B08DLTNLC7
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Amount, List_price144.24
AsinB0060LT5BS
BindingMisc.
Bullet_pointClamp mounting style installation helps increase positioning accuracy Four beam coupling for use in angular, parallel, and axial misalignment scenarios requiring zero backlash and torsional stiffness Operating temperatures range from -40 to 350 degrees F Single-piece coupling for longer service life than couplings with moving parts Stainless steel for torsional stiffness and resistance to corrosion
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 16310181 16411711 16411721
ClassificationId16411731
Currency, CurrencyCodeUSD
DisplayNameBeam
Externally_assigned_product_identifier, Identifier00634529049938 0634529049938 634529049938
FeatureFour beam coupling for use in angular, parallel, and axial misalignment scenarios requiring zero backlash and torsional stiffness
FetchTime1534713263 1572906723 1572906732 1617667300 1637147301 1683668312 1714685198
Height299 45 50 773
IdentifierTypeEAN GTIN UPC
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleRuland PCR18-8-8-SS Clamping Beam Coupling, Stainless Steel, Inch, 1/2" Bore A Diameter, 1/2" Bore B Diameter, 1-1/8" OD, 1-1/2" Length, 34 lb-in Nominal Torque
Item_type_keywordbeam-couplings
Linkhttps://m.media-amazon.com/images/I/41k0FcVvctL._SL75_.jpg https://m.media-amazon.com/images/I/41k0FcVvctL.jpg https://m.media-amazon.com/images/I/718VEhDJ22L.jpg
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeStainless Steel
ParentAsinsB08DLTNLC7
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameFLEXIBLE_COUPLINGS
Product_site_launch_date2011-10-28T15:33:01.186Z
Size1/2 inches
SkuPCR18-8-8-SS RULAND MANUFACTURING PCR18-10MM-1/4"-SS RULAND MANUFACTURING PCR18-8-8-SS
String_value1-1/2 1-1/8 1/2
StyleModern
TypeVARIATION ean gtin upc
URLhttp://ecx.images-amazon.com/images/I/41k0FcVvctL._SL75_.jpg https://m.media-amazon.com/images/I/41LS37M3egL._SL75_.jpg https://m.media-amazon.com/images/I/41k0FcVvctL._SL75_.jpg
Unitinches
Unitspixels
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1292 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandPCR18-8-8-SS1-211 @ $170.29, 10 @ $154.80, 25 @ $129.01, 50 @ $116.10
Raptor SuppliesAF9VRE111 @ $287.17
cbtcompany.comPCR18-8-8-SS11
ZoroG8424455111 @ $139.00
Grainger30VC19111 @ $189.81
Applied Industrial10203121911
Digi-Key1361293811011 @ $214.98
motionindustries.com02337853111 @ $211.58
sustainablesupply.comC16455531-211 @ $217.47
AmazonB0060LT5BS11
AmazonTPB0060LT5BS111 @ $214.02

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

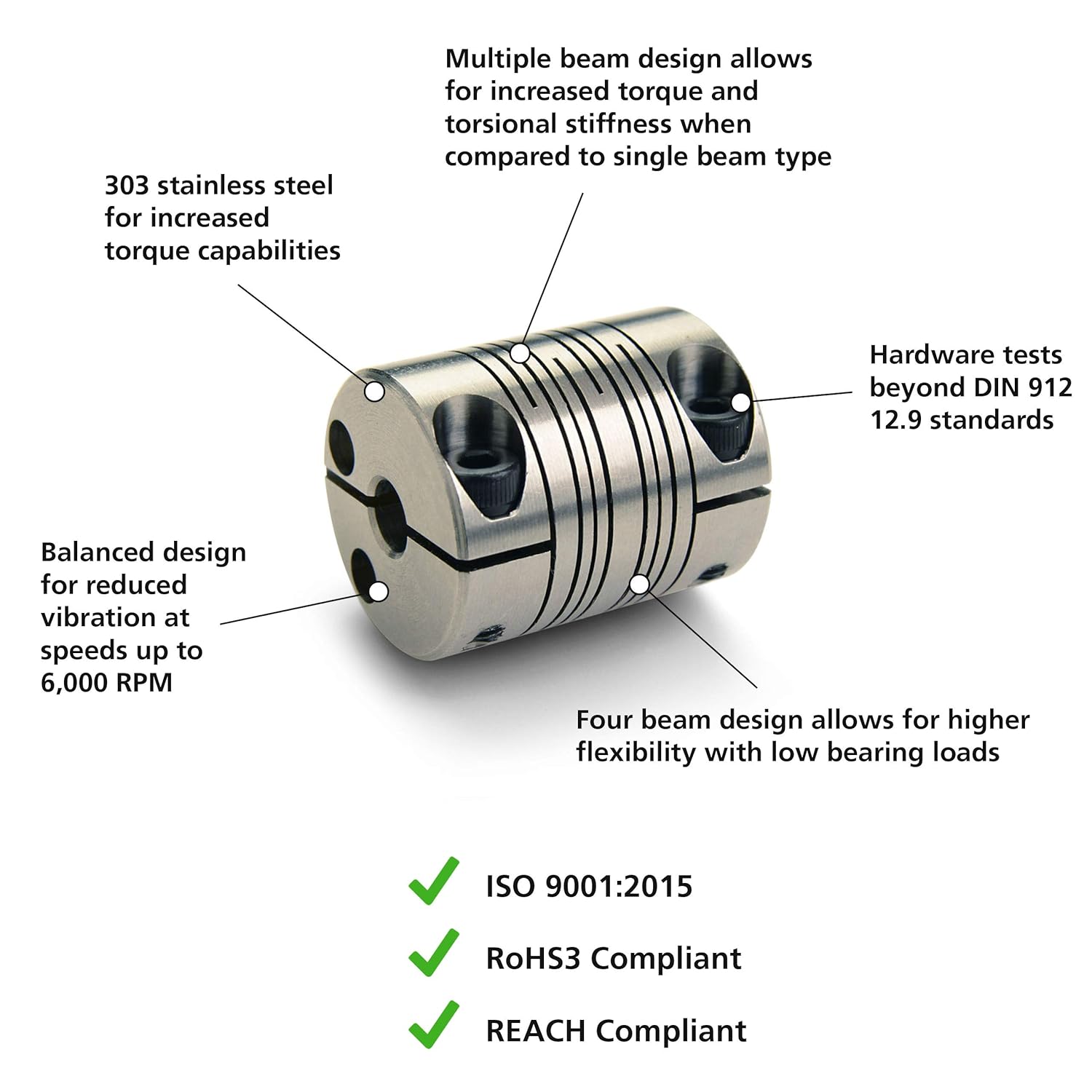

Ruland PCR18-8-8-SS Clamping Beam Coupling, Stainless Steel, Inch, 1/2" Bore A Diameter, 1/2" Bore B Diameter, 1-1/8" OD, 1-1/2" Length, 34 lb-in Nominal Torque
Brand: Ruland
Details
  • Four beam coupling for use in angular, parallel, and axial misalignment scenarios requiring zero backlash and torsional stiffness
  • Stainless steel for torsional stiffness and resistance to corrosion
  • Clamp mounting style installation helps increase positioning accuracy
  • Single-piece coupling for longer service life than couplings with moving parts
  • Operating temperatures range from -40 to 350 degrees F
Listing
BindingMisc.
Product groupBISS Basic
Product typeFLEXIBLE_COUPLINGS
ModelPCR18-8-8-SS
Part numberPCR18-8-8-SS
Items per pack1
LabelRuland Manufacturing
ManufacturerRuland Manufacturing
Catalog
FeatureFour beam coupling for use in angular, parallel, and axial misalignment scenarios requiring zero backlash and torsional stiffness
CategoryIndustrial & Scientific
MPNPCR18-8-8-SS
UPC634529049938
EAN634529049938
Product groupBISS
Product typeFLEXIBLE_COUPLINGS
ManufacturerRuland Manufacturing
