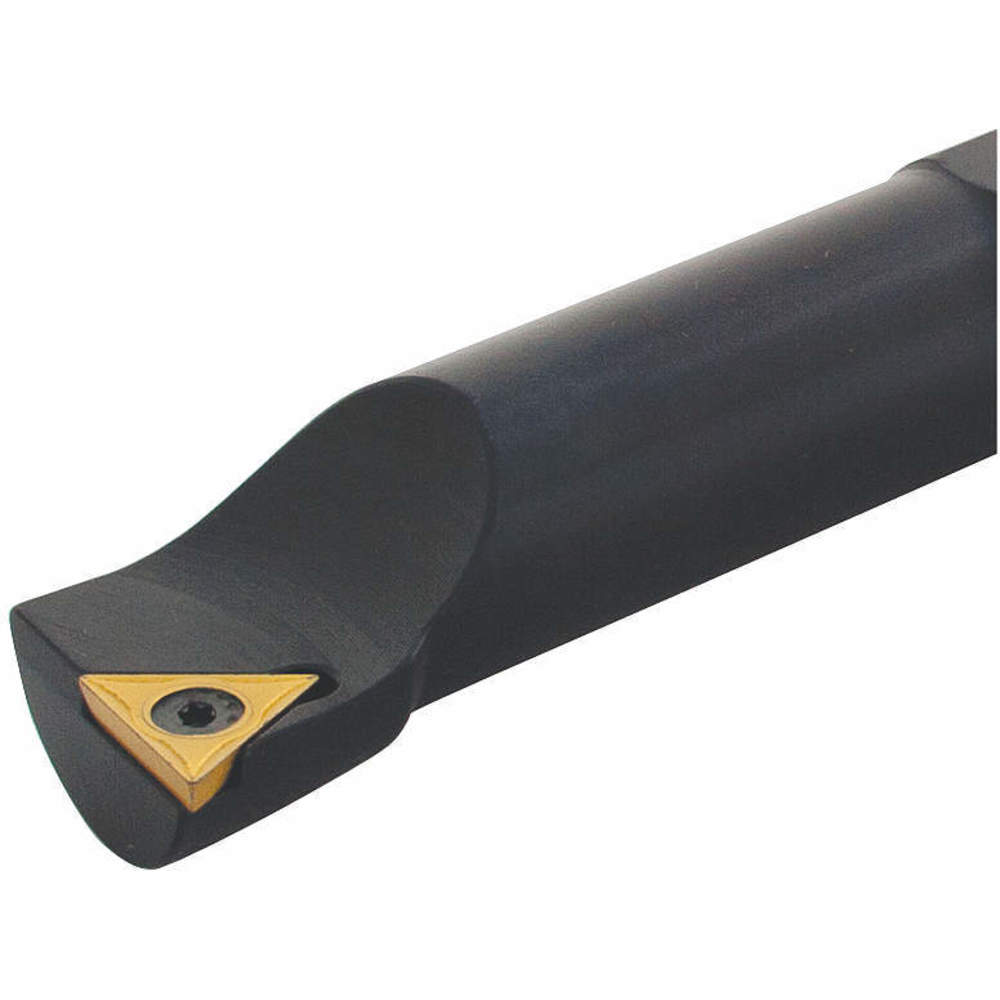

Dorian Indexable Boring Bar,1.1150",HSS 73310155666 ZO-G7586101 - SIM Supply

Technical Specification Item Indexable Boring Bar Insert Style TPGH Insert Shape Triangle Overall Length 12 Shank Dia. 1 Number of Inserts 1 ANSI Code TPBN16-3 Center to Cutting Tip 0.555 Compatible Hardware T-10 Torx Key, TS-44-3M Insert Torx Screw Cutting Application Roughing to Finishing Cutting Direction Right Hand Features Clearance Angle of Insert in Relation to Cutting Edge Gives Micro Finish, Fast Material Removal Head Material Steel Insert Holding Type Screw On Insert Inscribed Circle 3/8 Insert Size 322 ISO Number TPBN16-3 Max. Bore Depth 3 Min. Bore Dia. 1.115 Rake Negative Shank Length 9 Shank Material High Speed Steel Side Cutting Edge Angle -5 Degrees This listing is for each. Material : Steel Overall Length : 12 in Insert Shape : Triangle Type : Standard Steel Min. Bore : 1.115 Style : TPBN16-3 Lead Angle : 0 Degrees Inscribed Circle : 0.375 Cutting Direction : Right Hand Insert Screw : TS-44-3M1 Width Offset : 0.555 Item : Indexable Boring Bar Shank Dia. : 1 in Insert Thickness : 0.1562 Mounting Style : Screw Lock Insert Size : 322 Shank : Round Rake : Negative Shank Material : High Speed Steel Insert Style : TPGH Min. Bore Dia. : 1.1150 in Features : Clearance Angle of Insert in Relation to Cutting Edge Gives Micro Finish, Fast Material Removal Cutting Application : Roughing to Finishing Side Cutting Edge Angle : -5 Degrees Center to Cutting Tip : 0.5550 in ISO Number : TPBN16-3 Compatible Hardware : T-10 Torx Key, TS-44-3M Insert Torx Screw Insert Inscribed Circle : 3/8 in Max. Bore Depth : 3 in Number of Inserts : 1 Shank Length : 9 in Insert Holding Type : Screw On ANSI Code : TPBN16-3 Head Material : Steel Country of Origin (subject to change) : United States
