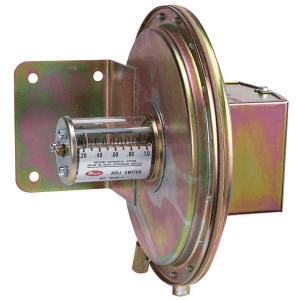

Order 1640-3KPA by Dwyer 1640 Floating Contact Null Switch - US Mega Store

Dwyer . 1640-3KPA

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute11Air and non-combustible, compatible gases
Attribute01, Attribute12-30 to 110°F (-34.4 to 43.3°C)
Attribute02, Attribute1310 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge
Attribute03, Attribute14Single-pole double throw (SPDT) floating contact (not snap action)
Attribute04, Attribute15Non-inductive: 2.5 A @ 110 VAC, 1.5 A @ 220 VAC, 1 A @ 24 VDC, 0.5 A @ 110 VAC; Inductive: 1 A @ 110 VAC, 0.5 A @ 220 VAC, 0.5 A @ 24 VDC. (De-rate 70-80% for very slow pressure changes.)
Attribute05, Attribute163 screw type, common, normally open and normally closed
Attribute06, Attribute171/8" female NPT
Attribute07, Attribute18Diaphragm in vertical position.
Attribute08, Attribute19Screw type
Attribute09, Attribute204 lb 13 oz (2.18 kg)
Attribute10, Attribute21CE
AttributeKey00, AttributeKey11Service
AttributeKey01, AttributeKey12Temperature Limits
AttributeKey02, AttributeKey13Pressure Limits
AttributeKey03, AttributeKey14Switch Type
AttributeKey04, AttributeKey15Electrical Rating
AttributeKey05, AttributeKey16Electrical Connections
AttributeKey06, AttributeKey17Process Connections
AttributeKey07, AttributeKey18Mounting Orientation
AttributeKey08, AttributeKey19Set Point Adjustment
AttributeKey09, AttributeKey20, Weight_AttribWeight
AttributeKey10, AttributeKey21Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Pressure
CategoryL4Dwyer 1640-3KPA
ConditionNEW
Extra Product NameOrder 1640-3KPA by Dwyer 1640 Floating Contact Null Switch - US Mega Store
Weight4
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKU1640-3KPA
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Dwyer, 1640-3KPA, Series 1640 Floating Contact Null Switch For High And Low Actuation 1.0 - 3.0 kPa </strong> </p> <p>VisualSet Point Adjustment, Adjustable Null Zone </p> <p><strong>The unique electric switch design in the 1640 is another Dwyer Instrument, Inc. innovation. </strong> The Dwyer&#174; Model 1640 Differential Pressure Switch resembles the Series 1630 switches. However, the Model 1640 is equipped with a single pole, double throw floating contact switch (not snap acting) so it functions as a null switch. </p> <p>Drawing shows the switching action schematically. As the diaphragm moves in response to pressure changes, it moves the floating contact to cause switching action at two preset points with no switching action between these points. The "high" circuit will be closed when rising pressure differential reaches the preset level. The "low" circuit will be closed when falling pressure differential reaches the preset level. </p> <p>A typical example of usage is to position motorized dampers when static pressure in a duct system reaches a desired maximum and reposition the dampers when the static pressure falls to a pre-established minimum. By using a Pitot tube sensing element the Model 1640 switch can serve in the same way to control air velocity and maintain a constant volume of air in a supply duct. </p> <p><strong>Approvals </strong> CE Approval. </p> <p><strong>Caution: For Use Only With Air Or Compatible Gases. </strong> </p>
tierPrice1758

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com1640-3KPA12 Weeks Factory Lead Time11 @ $758.00
Megadepot1640-3KPA111 @ $743.00
heavydutydepot.com1640-3KPA111 @ $743.00
cappusa.com4123334111 @ $0.00
blackhawksupply.com1640-3KPA1Get a Quote1
alliedcontrols.com1640-3KPA1Factory Stock11 @ $892.50
Transcat1640-3KPA111 @ $714.00
Galco1640-3KPA-DWYR111 @ $714.00
Radwell1640-3KPA111 @ $660.00
