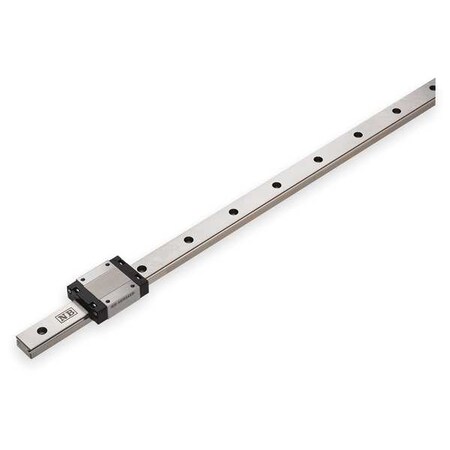

NB . SEBS15BUU-1-270MM

Mini-Guide Assembly, Single Carriage, Running Clearance 4.0 mm In/mm, Base Width 15 mm, Overall Height 16 mm, Rail Height 9.5 mm, Rail Length 270 mm, Carriage Height 12 mm, Carriage Width 32 mm, Carriage Length 42 mm, Carriage Hole Size M3x4.0 In/mm, Number of Rail Holes 7, Max Speed 79 In/Sec, Temp Range 176 F, Stainless Steel Rail Material, Stainless Steel Rail Finish, Standard Carriage Type, Stainless Steel Carriage Material, Seals Dimension L2 : 42 mm Rail Material : Stainless Steel Cnt Mtg Hole to Qualify Edge (In/mm) : - Base Width : 15mm Rail Finish : Stainless Steel Dimension W2 : 20 mm Max. Pv : - Carriage Type : Standard Dimension H4 : - Dynamic Load Capacity (N) : 5650 Dimension D2 : - Dimension W3 : - Running Clearance (In/mm) : 4.0 mm Dimension H1 : 9.5 mm Dimension S X l (Carriage Hole Size) : M3x4.0 Overall Height (mm) : 16 Dimension W1 : 25 mm Agency Compliance : None Number of Rail Holes : 7 Thread Size : - Item : Mini-Guide Assembly Carriage Hole Size (In.) : M3 x 4.0 Mounting Hole to End (In/mm) : 15mm Dimension D3 : - Rail Height : 9.50mm Max. Speed (In/Sec) : 79 For Use With : - Rail Length : 270mm Carriage Material : Stainless Steel Type : Single Carriage Dimension L1 : - Dimension h : - Includes : - Mounting Hole Center to Center (In/mm) : 40mm Temp. Range (F) : 176 Dimension L3 : - Dimension N : 15 mm Carriage Length : 42mm Liner : - Dynamic Load Capacity (Lb.) : 1267.9 Dimension X : - Overall Height (In.) : - Static Load Capacity (N) : 6760 Dimension Y : - Dimension W4 : - Hole Size : 3.5 .5 Static Load Capacity (Lb.) : 1516.9 Carriage Height : 12mm Dimension W : 8.5 mm Seals : Yes Carriage Width : 32mm Country of Origin (subject to change) : Japan
