Kyocera

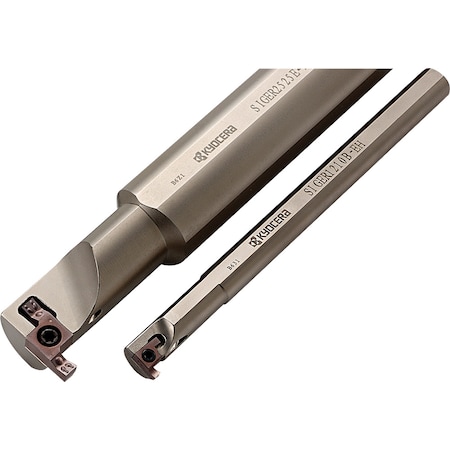

<ul><li>Left-Hand Toolholder with a Clamp Screw Insert Holding Design for Internal Grooving</li><li>Internal screw clamp holder provides excellent chip evacuation</li><li>Very stable machining with long tool life</li><li>Compatible with Left-Hand GEL…E Inserts</li></ul><p>Product Details:</p><ul><li>Grooving Type: Internal</li><li>Hand of Holder: Left-Hand</li><li>Series: SIGE</li><li>Toolholder Style: SIGE</li><li>Lead Angle (Degree): Insert Reliant</li><li>[DMIN] Minimum Bore Diameter (Decimal Inch): 1.5748</li><li>[DMIN] Minimum Bore Diameter (mm): 40.00</li><li>[DCON] Shank Diameter (Decimal Inch): 1.2500</li><li>[DCON] Shank Diameter (mm): 31.75</li><li>[H] Shank Height (Decimal Inch): 1.1700</li><li>[H] Shank Height (mm): 29.72</li><li>[LF] Functional Length (Decimal Inch): 9.8400</li><li>[LF] Functional Length (mm): 249.94</li><li>[LH] Head Length (Decimal Inch): 1.7720</li><li>[LH] Head Length (mm): 45.01</li><li>[WF] Cutting Edge Distance (Decimal Inch): 0.9060</li><li>[WF] Cutting Edge Distance (mm)23.01</li><li>[CDX] Max Depth of Cut (Decimal Inch): 0.2559</li><li>[CDX] Max Depth of Cut (mm): 6.50</li><li>[CW] Insert Cutting Width (Decimal Inch): 0.0394</li><li>[CW] Insert Cutting Width (mm): 1.00</li><li>Coolant Through: Yes</li><li>[G] Coolant Hole Thread Size (Decimal Inch): 0.1969</li><li>[G] Coolant Hole Thread Size (mm): 5.00</li><li>Insert Holding Method: Clamp Screw</li><li>Multi-Use Tool: No</li><li>Application: Grooving</li><li>Toolholder Material: Steel</li><li>Unit of Measure: Inch</li><li>Compatible Insert Hand: Left-Hand</li><li>Compatible Inserts (Partial): GEL…E</li></ul><br>SIGE Internal Grooving Brochure
