13MHHM50-75 - Single Pin Clamp - Cross Hole Wing Nut - Dixon

Dixon 13MHHM Single Pin Heavy Duty Clamps are constructed from 304 stainless steel and intended for use with sanitary Tri-Clamp fitting connections. These cross hole wing nut style sanitary clamps allow for quick and easy tightening without the need for tools, although Rubber Fab is proud to offer theTorque Tee Universal Sockets. These wingnut sockets can be used with a standard 1/4" drive torque wrench to guarantee proper clamping pressure is applied to your connection, ensuring a leak free seal.<br><br>Dixon Sanitary offers a complete line of replacement components and accessories to compliment their sanitary clamps. While these clamps are designed for heavy duty applications, over time the wear and tear of repeated change outs will start to take a toll. So, whether it's a lost wing nut, bent rivet pin, or cross threaded bolt, we have you covered! You can even upgrade these clamps with a Spring Loaded Nut or Torque-Rite Nut for added security in high vibration or PTFE creep environments.<br><br><b>Safety Note:</b> Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.

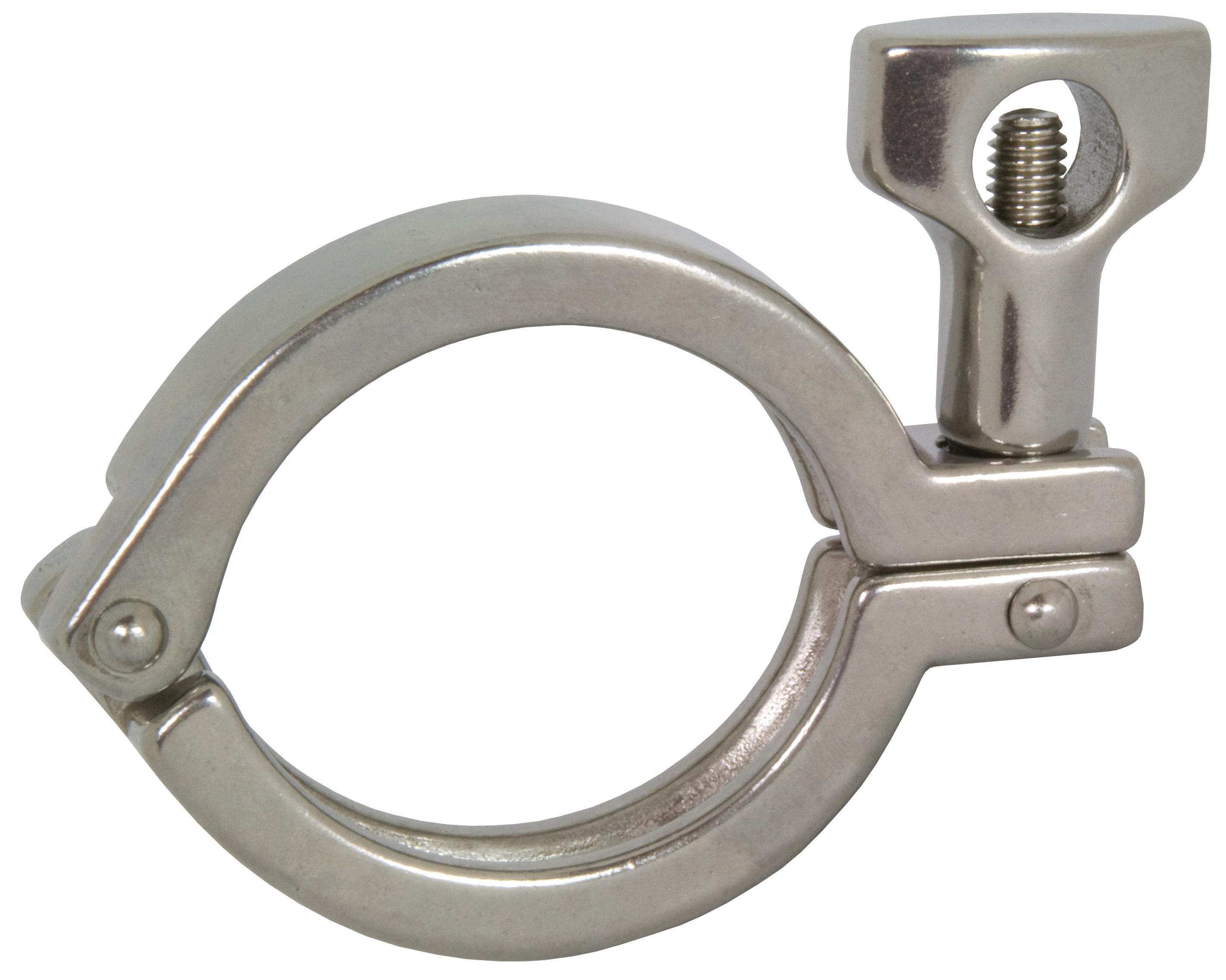

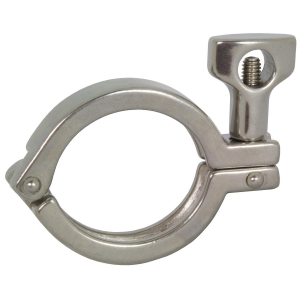

<p><strong>Dixon, 13MHHM50-75, .50"-.75" Stainless Steel Single Pin Heavy Duty Clamp w/ Cross Hole Wing Nut</strong></p><p><strong>Use</strong></p><ul><li>Wingnut tightened to 25 in. lb. of torque</li></ul><p><strong>Safety notes</strong></p><ul><li>Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.</li><li>Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.</li></ul>
