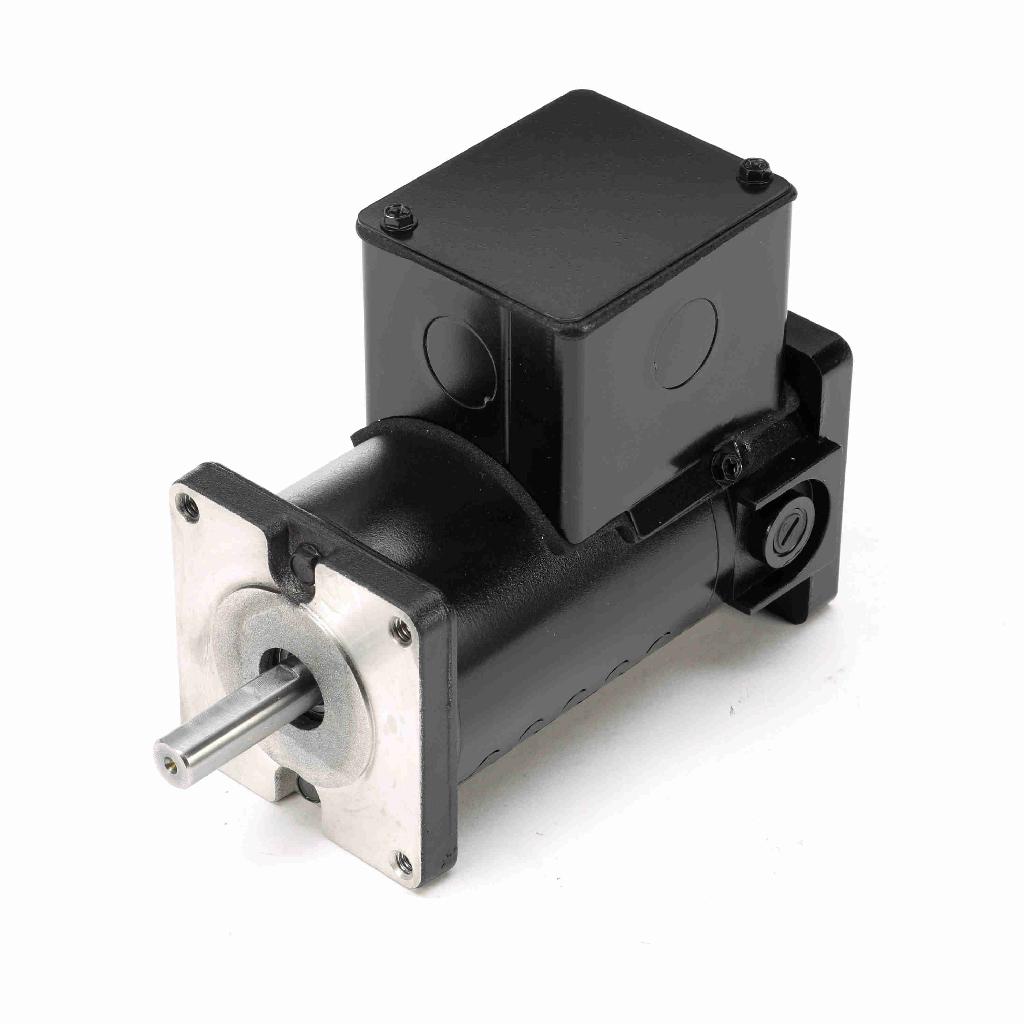

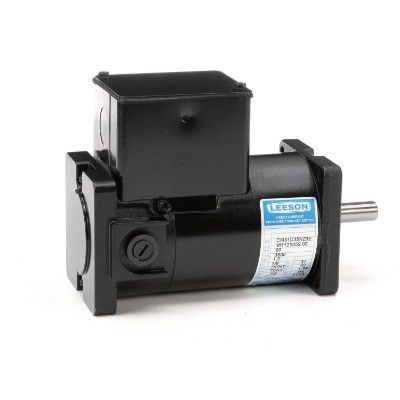

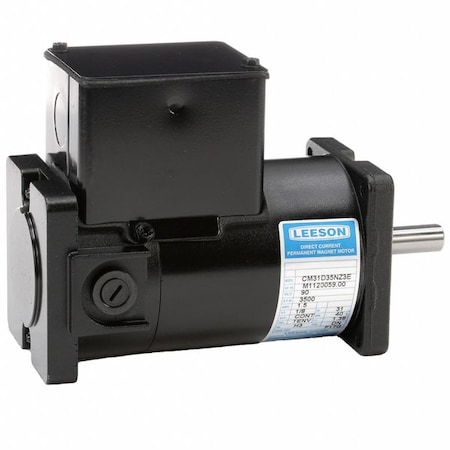

LEESON ELECTRIC . M1120059.00

LEESON M1120059.001/8HP 3500RPM 31 TENV 90V CONT 40C1 00SF SQ FLANGE DC SUB-FHPCM31D35NZ3D

Compact space savings designs. Ball bearings. Long-life brushes. Easy access to brushes for service. High starting torques. Class F insulation , Lot of 1

<p><ul><li>Compact, space saving design</li><li>Ball bearing construction</li><li>Long life brushes</li><li>External access to brushes allows for easy replacement further prolonging motor life</li><li>Conduit box standard on 31 and 34 frame models</li><li>Continuous duty with full wave un-filtered rectified SCR (thyristor) controls</li><li>Linear speed torque characteristics throughout the speed range</li><li>High starting torques</li><li>Reversible rotation</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Family:-Permanent Magnet </li><li> Motor Type:-Brushed </li><li> Horsepower:-1/8 hp </li><li> Full Load Efficiency:-68.00 % </li><li> DC Armature Voltage:-90 V </li><li> Base RPM:-3500 rpm </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Duty / Condition Type:-Continuous Duty </li><li> NEMA / IEC Frame Size:-31 </li><li> Thermal Protection:-None </li><li> Field Full Load Current:-1.50 A </li><li> Shaft Diameter:-0.50 in </li><li> Shaft Rotation:-Reconn </li><li> Motor Length Less Shaft:-3.50 in </li><li> Overall Length (C-Dimension):-7.45 in </li><li> Insulation Class:-H </li><li> Mounting Type:-SQ Flange </li><li> Service Factor:-1.00 </li><li> Operating Temperature Range:-40 °C </li><li> Standards Met:-CE, CSA, UL Recognized </li><li> Drive End Bearing Size:-6201-13 </li><li> Opposite Drive End Bearing Size:-6201-13 </li><li> Weight:-7 lbs </li></ul></p>
