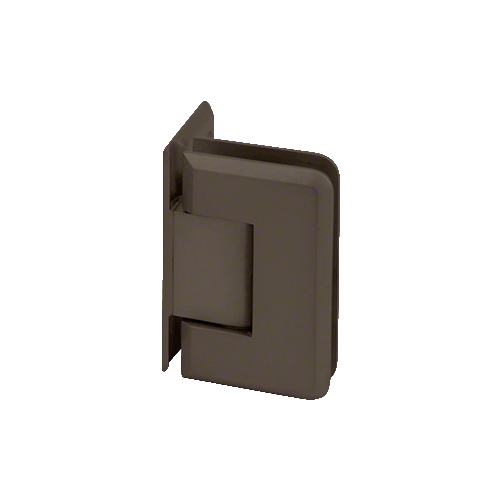

CRL C0L5440RB Oil Rubbed Bronze Cologne 544 Series 5? Pre-Set Wall Mount Offset Back Plate Hinge | thebuilderssupply.com

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Available in Several Beautiful Finishes Three Year Warranty The CRL Cologne Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Cologne Hinges are self-centering, and contain a Reversible 5° Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. Color: Oil Rubbed Bronze Standard Reversible Pivot Pin: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 degrees. The opposite side is marked 85 degrees. Offset Models come with the Pin pre-set to 85 degrees (5 degree tighter closure into the shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. Standard Cologne Hinges come with the 90 degrees side activated. Using two hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters). Using three hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 140 pounds (63 kilograms) with a maximum width of 36 inches (914 millimeters). Specifications: Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass Construction: Solid Brass Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out Hinge Swings: 90 Degrees Inwards and Outwards Closing Type: Self-Centering when within 15 Degrees of Closed Position Includes: One Hinge, Gaskets, Screws and Template
