Amp Te Connectivity D3521N=Fu Relay 200 Mw 3 V-Smd - 1-1462036-7
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 35AC6336 | 1 | 500 | 1 | 1 @ $5.78, 10 @ $5.50, 25 @ $5.20, 50 @ $4.70, 100 @ $4.24, 500 @ $3.81 |
| Waldom | TE CONNECTIVITY AMP BRAND 1-1462036-7 | 500 | 500 | 500 | 500 @ $1.23 |
| Waldom | TE CONNECTIVITY 1-1462036-7 | 1 | 1 | ||
 Zoro | G800973419 | 3 | 3 | 1 @ $3.15 | |
| 1-1462036-7 | 1 | 2500 | 1 | 1 @ $4.17, 25 @ $4.09, 100 @ $4.01, 625 @ $3.81, 1250 @ $2.02, 1875 @ $1.42, 2500 @ $1.39 | |
| E5330637 | 1 | 1000 | 1 | 1 @ $3.12 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

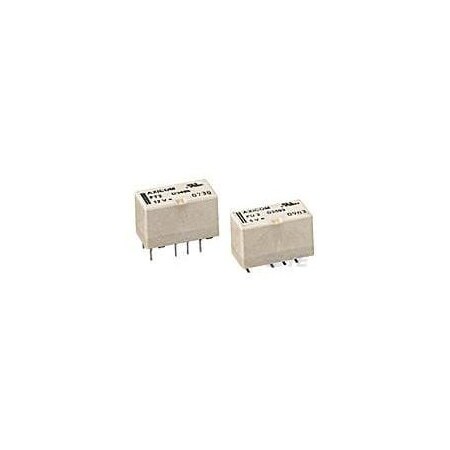

TE Connectivity / AMP Brand 1-1462036-7 Signal Relays (Dry to 3 Amps)
Brand: TE Connectivity / AMP
Electromechanical Relay 3VDC 45Ohm 2A DPDT (15x7.5x10)mm SMD Signal Relay
Listing
| Product group | BISS Basic |
|---|---|
| Product type | RELAY |
| Part number | 1-1462036-7 |
| Label | TE Connectivity / AMP Brand |
| Manufacturer | TE Connectivity / AMP Brand |
1-1462036-7, Electromechanical Relay 3VDC 45Ohm 2A DPDT (15x7.5x10) mm SMD Signal Relay (10 Items)
Brand: TE Connectivity / AMP
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | 1-1462036-7 |
| Part number | 1-1462036-7 |
| Items per pack | 10 |
| Label | TE Connectivity / AMP Brand |
| Manufacturer | TE Connectivity / AMP Brand |
Signal Relay 3VDC 2A DPDT(15x7.5x10) mm SMD
Brand: TE Connectivity
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Obsolete Contact Arrangement: DPDT Contact Form: 2 Form C DC Coil Voltage (V): 3 Coil Current (mA): 66.67 Coil Resistance (Ohm): 45 Maximum Contact Resistance (mOhm): <70 Insulation Resistance (MOhm): >1000 Maximum Pick-Up Voltage: 2.25VDC Minimum Dropout Voltage: 0.3VDC Maximum AC Switching Voltage (V): 250 Maximum DC Switching Voltage (V): 220 Maximum Switching Current (A): 2 Operate Time (ms): 3 Release Time (ms): 2 Electrical Life (Operations): 2500000 Mechanical Life (Operations): 100000000 Relay Construction: Non-Latching Contact Material: Palladium Ruthenium/Gold Maximum Switching Power: 62.5VA|60W Mounting: Surface Mount Termination Style: J Legs Number of Terminals: 8 IP Rating: IP67 Seal: Unsealed Minimum Operating Temperature (°C): -55 Maximum Operating Temperature (°C): 85 Package Type: SMD Product Weight (g): 3 Product Length (mm): 15 Product Depth (mm): 7.5 Product Height (mm): 10
Listing
| Product group | BISS Basic |
|---|---|
| Product type | RELAY |
| Model | 1-1462036-7 |
| Part number | 1-1462036-7 |
| Items per pack | 25 |
| Label | TE Connectivity |
| Manufacturer | TE Connectivity |
