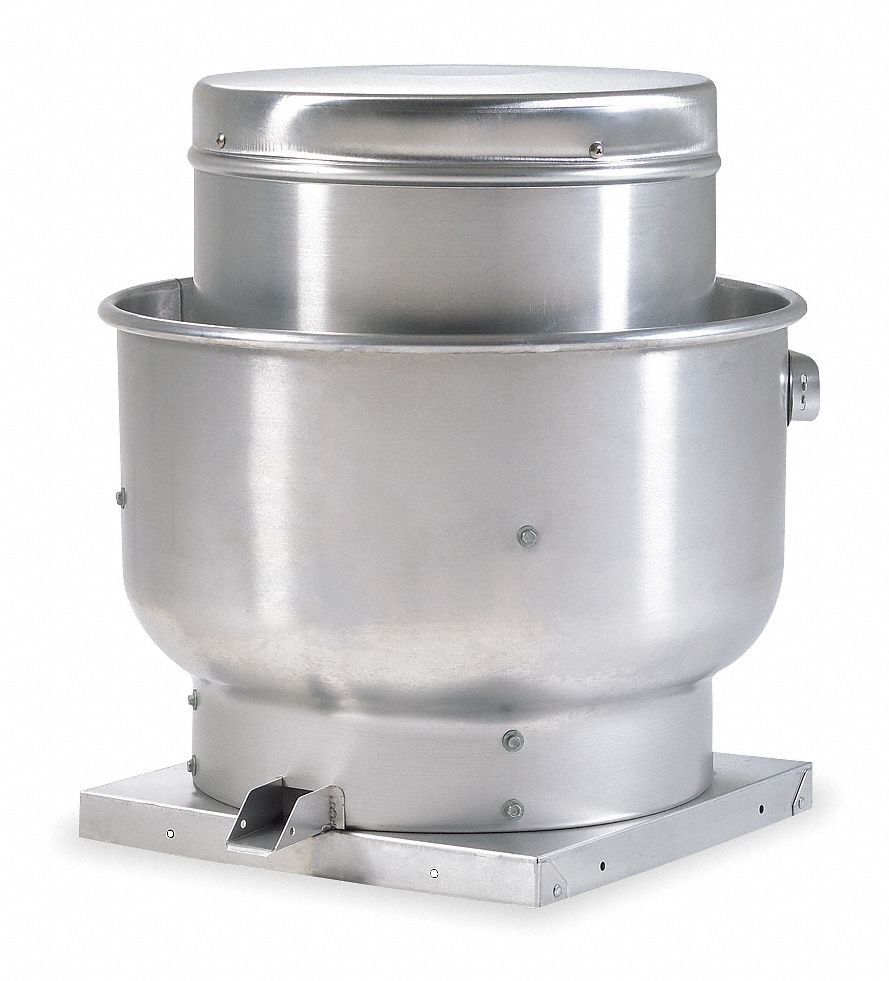

UPBLAST EXHAUST VENT, 14-3/4 IN.

DAYTON . 4YY16-22CC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDAYTON
Attribute00Centrifugal Upblast Roof Exhaust Fan
Attribute01Belt
Attribute02Not Applicable
Attribute03, Attribute3022 in
Attribute041 3/4 in wc
Attribute05998 cfm
Attribute061/4 hp
Attribute071,105 RPM
Attribute08Spun Aluminum
Attribute09, Attribute12, Attribute40, Attribute54No
Attribute10Kitchen Air
Attribute11AMCA Sound and Air, UL/cUL 762
Attribute131 3/4 in
Attribute1413/50 hp, 17/50 hp, 13/25 hp, 79/100 hp, 1 hp
Attribute1524Y860, 2RB75-2RB77, 2RB79-2RB82, 2ZV82-2ZV85
Attribute1617.5 in
Attribute1715 x 15 in
Attribute18Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design
Attribute19Spun
Attribute20NEMA 1 Junction Box
Attribute21, Attribute341,725 RPM
Attribute22Out of Airstream
Attribute23, moq, multiple, tierMinQty11
Attribute2424 7/8 in
Attribute253/4 in
Attribute26Fan RPM 1105 : 10.9 sones @ 0.000 in SP and 5 ft, 10.8 sones @ 0.125 in SP and 5 ft, 10.6 sones @ 0.250 in SP and 5 ft, 10.3 sones @ 0.375 in SP and 5 ft, 10.0 sones @ 0.500 in SP and 5 ft, 9.9 sones @ 0.625 in SP and 5 ft, 9.6 sones @ 0.750 in SP and 5 ft, Fan RPM 1210 : 12.2 sones @ 0.000 in SP and 5 ft, 12.2 sones @ 0.125 in SP and 5 ft, 11.7 sones @ 0.250 in SP and 5 ft, 11.6 sones @ 0.375 in SP and 5 ft, 11.2 sones @ 0.500 in SP and 5 ft, 11.0 sones @ 0.625 in SP and 5 ft, 10.9 sones @ 0.750 in SP and 5 ft, 10.6 sones @ 0.875 in SP and 5 ft, Fan RPM 1390 : 14.9 sones @ 0.000 in SP and 5 ft, 14.7 sones @ 0.125 in SP and 5 ft, 14.2 sones @ 0.250 in SP and 5 ft, 13.2 sones @ 0.375 in SP and 5 ft, 12.9 sones @ 0.500 in SP and 5 ft, 12.5 sones @ 0.625 in SP and 5 ft, 12.1 sones @ 0.750 in SP and 5 ft, 11.4 sones @ 0.875 in SP and 5 ft, 11.0 sones @ 1.000 in SP and 5 ft, Fan RPM 1595 : 20.0 sones @ 0.000 in SP and 5 ft,19.0 sones @ 0.125 in SP and 5 ft, 18.5 sones @ 0.250 in SP and 5 ft, 19.5 sones @ 0.375 in SP and 5 ft, 16.1 sones @ 0.500 in SP and 5 ft, 14.2 sones @ 0.625 in SP and 5 ft, 13.3 sones @ 0.750 in SP and 5 ft, 12.6 sones @ 0.875 in SP and 5 ft, 12.3 sones @ 1.000 in SP and 5 ft, 12.6 sones @ 1.250 in SP and 5 ft, 11.6 sones @ 1.500 in SP and 5 ft, Fan RPM 1725 : 26.0 sones @ 0.000 in SP and 5 ft, 23.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, 24.0 sones @ 0.375 in SP and 5 ft, 24.0 sones @ 0.500 in SP and 5 ft, 18.0 sones @ 0.625 in SP and 5 ft, 15.1 sones @ 0.750 in SP and 5 ft, 14.1 sones @ 0.875 in SP and 5 ft, 13.4 sones @ 1.000 in SP and 5 ft, 14.3 sones @ 1.250 in SP and 5 ft, 13.8 sones @ 1.500 in SP and 5 ft, 13.8 sones @ 1.750 in SP and 5 ft
Attribute27Backward Inclined Centrifugal
Attribute28Industrial and Commercial Buildings, Restaurants, Schools
Attribute2914 3/4 in
Attribute31Square
Attribute323,066 cfm
Attribute331 hp
Attribute35Unassembled
Attribute36Aluminum
Attribute37Roof
Attribute38, Attribute48300 Degrees F
Attribute3926 3/8 in
Attribute41Sealed Pillow Block
Attribute422RB76, 2ZV82, 4C670, 4HX55, 4HX61
Attribute434HX65
Attribute4417.5 in L x 17.5 in W
Attribute45Power Cord
Attribute46, Attribute4728.9 in
Attribute4914.2 sones
Attribute50Roof Curb
Attribute5128 1/8 in
Attribute5228 7/8 in
Attribute53Fully Rolled Windband
AttributeKey00Item
AttributeKey01Drive Type
AttributeKey02Base Diameter
AttributeKey03Base Width
AttributeKey04Maximum Static Pressure
AttributeKey05Minimum Airflow
AttributeKey06Minimum Motor Horsepower
AttributeKey07Minimum Motor Speed
AttributeKey08Housing Material
AttributeKey09For High-Static Pressure Applications
AttributeKey10For Air Type
AttributeKey11Standards
AttributeKey12Includes Drive Package
AttributeKey13Base Height
AttributeKey14Brake Horsepower
AttributeKey15Compatible Curb Manufacturer Part Number
AttributeKey16Cutout Length
AttributeKey17Damper Size
AttributeKey18Features
AttributeKey19Housing Material Fabrication
AttributeKey20Includes
AttributeKey21Maximum Fan Speed
AttributeKey22Motor Location
AttributeKey23Number of Speeds
AttributeKey24Overall Diameter
AttributeKey25Propeller Shaft Diameter
AttributeKey26Sound Level
AttributeKey27Wheel Type
AttributeKey28Application
AttributeKey29Wheel Diameter
AttributeKey30Base Length
AttributeKey31Base Shape
AttributeKey32Maximum Airflow
AttributeKey33Maximum Motor Horsepower
AttributeKey34Maximum Motor Speed
AttributeKey35Assembly
AttributeKey36Wheel Material
AttributeKey37Mounting Location
AttributeKey38Maximum Inlet Air Temperature
AttributeKey39, height_AttribOverall Height
AttributeKey40Includes Motor
AttributeKey41Bearing Type
AttributeKey42Compatible Curb Grainger Part Number
AttributeKey43Compatible Damper Grainger Part Number
AttributeKey44Cutout Size
AttributeKey45Electrical Connection
AttributeKey46, length_AttribHousing Length
AttributeKey47, width_AttribHousing Width
AttributeKey48Maximum Ambient Temperature
AttributeKey49Maximum Noise Level @ 5 Feet
AttributeKey50Mount Type
AttributeKey51Overall Depth
AttributeKey52Overall Width
AttributeKey53Safety Features
AttributeKey54Speed Controllable
DimensionUnitinch
Extra Product NameUPBLAST EXHAUST VENT, 14-3/4 IN.
UNSPSC40101502
Weight56.0
WeightUnitlbs
height26.375
length, width28.9
MPN4YY16-22CC
originalCurrency{'currency': 'CAD', 'tierPrice1': '1214.92'}
qtyInStock0
SKUWWG16D524
tierPrice1881.79622552

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG16D524111 @ $881.80
