6 Inch Kingpinless Solid Poly Wheel Swivel Caster with Brake and Swivel Lock SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute006
Attribute012
Attribute022-5/8" x 3-5/8" to 3" x 3"
Attribute03-50 degrees F to 180 degrees F
Attribute04Swivel caster w/side lock brake & bolt on swivel lock
Attribute05, Model, ModelNumber, Model_numberSeries#KP30
Attribute06Bright Zinc Plated Finish
Attribute077-1/2"
Attribute08Solid Polyurethane
Attribute09Top Plate
Attribute101200
Attribute11Top Lock Brake & Bolt on Swivel Lock
Attribute124" x 4-1/2"
Attribute1360D
Attribute14, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Caster Bolt Hole Pattern
AttributeKey03Caster Temp. Range
AttributeKey04Type
AttributeKey05Series
AttributeKey06Finish
AttributeKey07, height_AttribMounting Height
AttributeKey08Material
AttributeKey09Caster Mounting Type
AttributeKey10Capacity (Lb.)
AttributeKey11Caster Swivel Lock Type
AttributeKey12Plate Size
AttributeKey13Durometer
AttributeKey14Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name6 Inch Kingpinless Solid Poly Wheel Swivel Caster with Brake and Swivel Lock SCC
WeightUnitlbs
diameter, length6.0
extendedLead26
extendedQty-2
height7.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S620-SPUR-SLB-BSL
qtyInStock0
tierPrice1197.63
urlhttps://www.zoro.com/service-caster-6-inch-kingpinless-solid-poly-wheel-swivel-caster-with-brake-and-swivel-lock-scc-scc-kp30s620-spur-slb-bsl/i/G305438505/
width, Backspacing2.0
ASINB08KBJQMLF B08KHRX7BM
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08KBJQMLF
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1200 lbs. on the 8”.
ClassificationId511228
ColorSwivel - Brake & Bolt on Swivel Lock - Blue
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586556812 011586556812
FetchTime1697261298 1704455224
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Solid Polyurethane Swivel Top Plate Caster w/6" x 2" Blue Wheel & Side Lck Brake and Bolt on Swivel Lock - 1200 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S820-SPUR-BSL
Linkhttps://m.media-amazon.com/images/I/31aQsbMjNYL._SL75_.jpg https://m.media-amazon.com/images/I/31aQsbMjNYL.jpg https://m.media-amazon.com/images/I/41pR0cu-iQL._SL75_.jpg https://m.media-amazon.com/images/I/41pR0cu-iQL.jpg https://m.media-amazon.com/images/I/51067ifvyxL._SL75_.jpg https://m.media-amazon.com/images/I/51067ifvyxL.jpg https://m.media-amazon.com/images/I/51DEcOwAeHL.jpg https://m.media-amazon.com/images/I/51RbgAQ3h9L._SL75_.jpg https://m.media-amazon.com/images/I/51RbgAQ3h9L.jpg https://m.media-amazon.com/images/I/51tc-F22wDL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61busaoAH2L.jpg https://m.media-amazon.com/images/I/71HRBZLqxGL.jpg
List_price0.0
Load_capacity1200.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypePolyurethane
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08KHRX7BM
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide solid polyurethane wheel with a side lock brake & bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 solid polyurethane wheel casters. The Service Caster Series KP30 features a non-marking, non-marring polyurethane wheel. Molded as one solid piece, this wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-28T20:19:02.383Z
Size6" Wheel 6.0
Supplier_declared_dg_hz_regulationnot_applicable
TypeCount VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31aQsbMjNYL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight7.45

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG305438505111 @ $197.63

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Kingpinless Solid Polyurethane Swivel Top Plate Caster w/6" x 2" Blue Wheel & Side Lck Brake and Bolt on Swivel Lock - 1200 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster

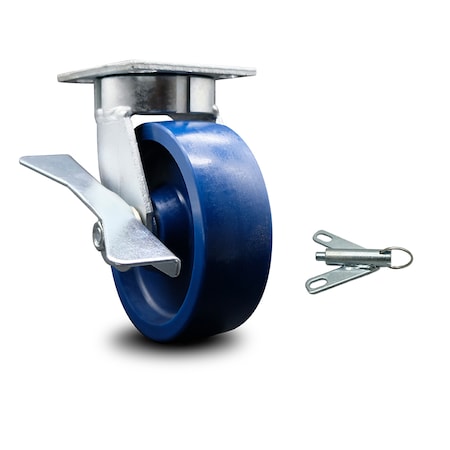

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 6" diameter by 2" wide solid polyurethane wheel with a side lock brake & bolt on swivel lock capable of supporting 1,200 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 solid polyurethane wheel casters. The Service Caster Series KP30 features a non-marking, non-marring polyurethane wheel. Molded as one solid piece, this wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1200 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S620-SPUR-SLB-BSL
Items per pack1
LabelService Caster
ManufacturerService Caster
