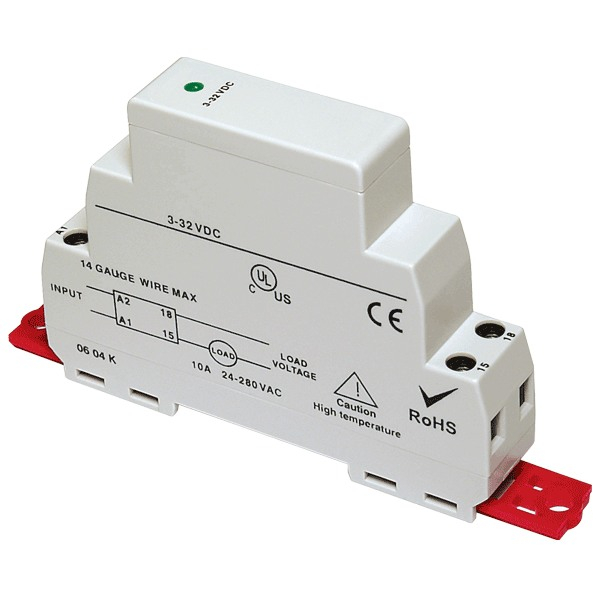

Order 861SSR210-AC-1 by Dwyer Series 861SSR Solid State Relay - US Mega Store

Dwyer . 861SSR210-AC-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute1124 to 280 VAC
Attribute01, Attribute1210 amps max
Attribute02, Attribute13Screw terminals
Attribute03, Attribute14SPST normally open
Attribute04, Attribute15Zero cross
Attribute05, Attribute16-22 to 176°F (-30 to 80°C)
Attribute06, Attribute171.6 VAC max
Attribute07, Attribute1810 mA max
Attribute08, Attribute19Lexan 943
Attribute09, Attribute204.1 oz
Attribute10, Attribute21cUL, UL, CE, RoHS
AttributeKey00, AttributeKey11Operating and Load Voltage Range
AttributeKey01, AttributeKey12Sensor Current
AttributeKey02, AttributeKey13Electrical Connection
AttributeKey03, AttributeKey14Switching Operation
AttributeKey04, AttributeKey15Switching Type
AttributeKey05, AttributeKey16Temperature Limits
AttributeKey06, AttributeKey17Voltage Loss
AttributeKey07, AttributeKey18Output Leakage Current
AttributeKey08, AttributeKey19Housing
AttributeKey09, AttributeKey20, Weight_AttribWeight
AttributeKey10, AttributeKey21Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Controllers
CategoryL3Solid State Relays
CategoryL4Dwyer 861SSR210-AC-1
ConditionNEW
Extra Product NameOrder 861SSR210-AC-1 by Dwyer Series 861SSR Solid State Relay - US Mega Store
Weight4.1
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKU861SSR210-AC-1
qtyInStockContact Us
snippet<p><strong>Dwyer, 861SSR210-AC-1, Series 861SSR DIN/Panel Mountable Solid State Relay, 90-280 VAC Input </strong> </p> <p>10 Amp, SPST-NO Operation, Internal Heat Sink </p> <p><strong>Series 861SSR DIN/Panel Mountable Solid State Relay </strong> features an internal heat sink, bistable clips for DIN rail or panel mounting and an LED indicator light. It is a completely solid state relay - it has NO moving parts. The 861SSR provides reliable switching and long-life operation in applications where high inrush currents or induced currents can affect mechanical state relay operation. The compact housing also minimizes panel space. </p> <p><strong>Features </strong> </p> <ul><li>Internal heat sink </li> <li>No contact bounce </li> <li>No mechanical delay </li> <li>DIN and panel mountable </li> <li>17 mm wide modular design </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>RoHS Certificate </li> <li>CE Approval </li> <li>UL Approval - Switches, Ind'l Control_US </li> </ul>
tierPrice1119

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com861SSR210-AC-11Contact Us11 @ $119.00
Megadepot861SSR210-AC-1111 @ $114.70
heavydutydepot.com861SSR210-AC-1111 @ $114.70
Galco861SSR210-AC-1-DWYR111 @ $0.00
cappusa.com4125447111 @ $0.00
industrialzone.com861SSR210-AC-12-211 @ $107.00
alliedcontrols.com861SSR210-AC-11Factory Stock11 @ $107.50
Transcat861SSR210-AC-1111 @ $81.50
