HBL420MI9W-Hubbell-Bypass Switches - Enclosed

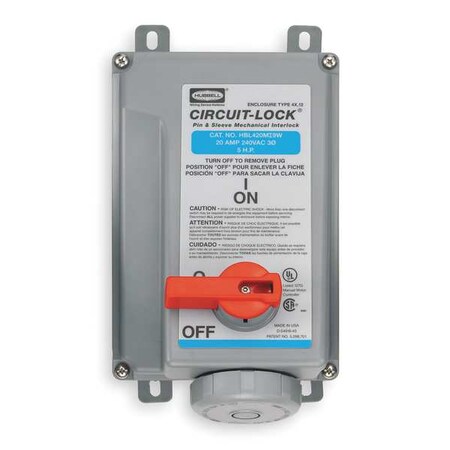

Size: 8.750 Inch Length x 7.750 Inch Width x 11.250 Inch Height Three molded-in conduit drill points are located on top, bottom and back surface of enclosure 10000 Mechanical cycles and 6000 electrical cycle Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping Enclosure housing with brass inserts and stainless steel screws for higher torque and better sealing Hubbell Wiring Unfused Circuit-Lock Mechanical interlock in blue color measuring 8.750 Inch x 7.750 Inch x 11.250 Inch features 4-wires and has 20 Amps, 240 Volts, 600 VAC RMS rating. It has two-stage interlocking mechanism that helps to defeat tampering and lockable handle to lockout/tagout regulation. It has replaceable spring-loaded liftcover with gasket for a watertight seal and color-coded rating pad and receptacle mount helps to signify voltage. 3-Pole Interlock is used for high ampacity watertight conditions and meets UL 498, IEC 309-1 and 309-2 standards. Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight Product Specification Amperage Rating 20 Application High Ampacity Watertight Connections Brand Hubbell Wiring Device-Kellems Connection Pressure Screw Terminals Environmental Conditions Watertight Finish 2 Blue 00783585392882 Height 7.2000 Height Unit IN Item Status A Length 12.2000 Length UOM IN Material Thermoplastic Mounting Screw Mount NEMA Rating Non-NEMA Number Of Poles 3 Number of Wires 4 Phase 3 Ships Freight No Ships Ground. Eligible for expedited shipping Yes Size Standard Sized Product Special Features Watertight Standard UL Listed Sub-Brand Pin and Sleeve Devices Type Mechanically Interlocked Single Voltage Rating 3 Phase 240 Wattage 5, 000 Width 7.8000 Width UOM IN Wire Size #14 AWG To #10 AWG
