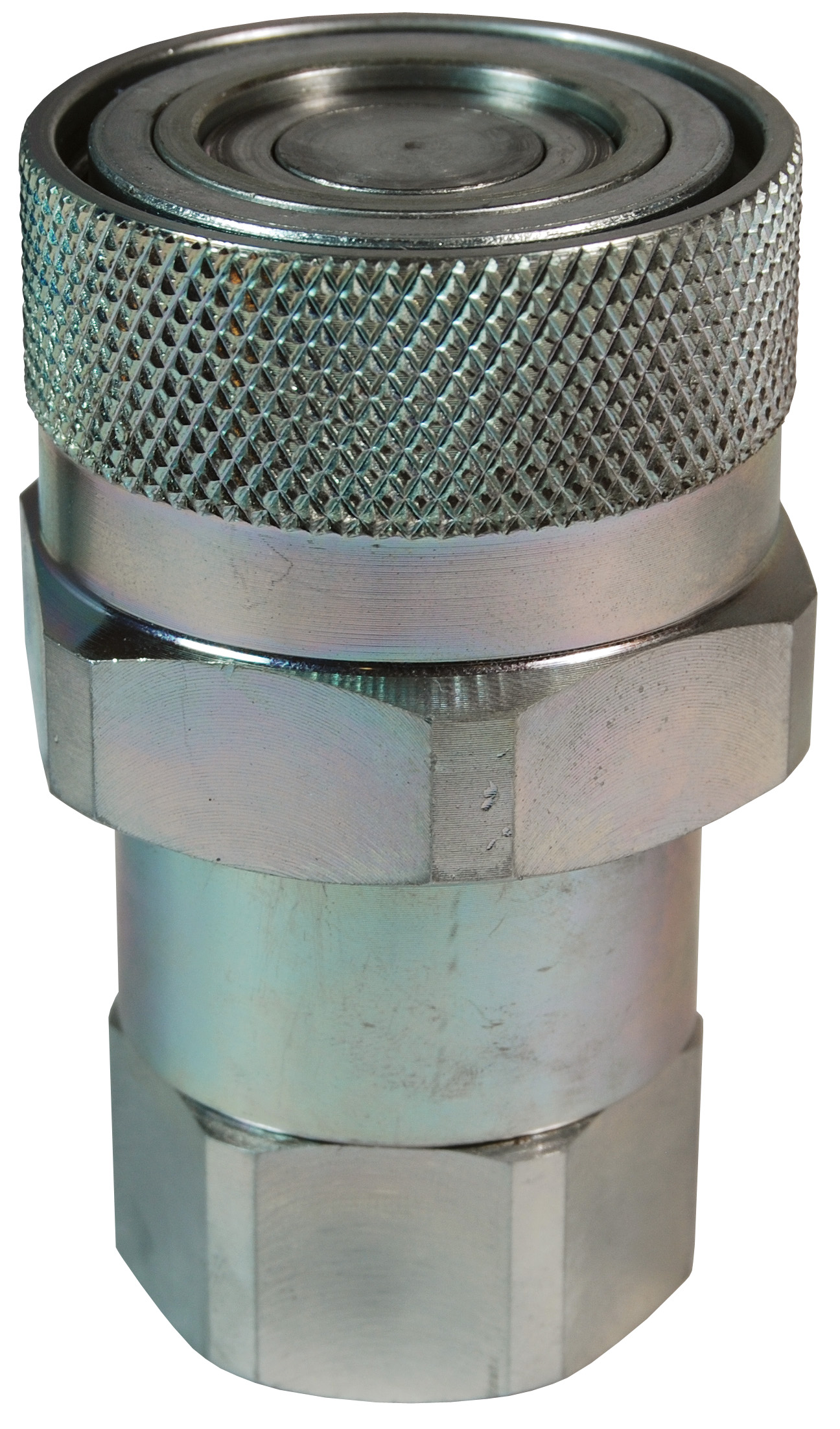

Order 12VEPOF12 by Dixon Valve VEP-Series 1-1/2" Female Coupler 1-1/2" ORB - US Mega Store

Specifications Maximum Impulse Pressure 2 : 5800 PSI (40 MPa) Burst Pressure Connected: 18000 PSI (124 MPa) Burst Pressure Coupler: 12000 PSI (83 MPa) Maximum Pressure Connect and Disconnect 3 : 3000 PSI (21 MPa) Features Two-stage valving to protect critical sealing components during pressurized connection and disconnection Posi-Lock valve system secures valving during surge-flow conditions to prevent high-velocity damage No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection. Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures. Construction Machined components are manufactured using solid steel bar stock Stainless steel retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance. Valve stems have molded Polyurethane seals, with a temperature range of -65 degree F to +212 degree F (-54 degree C to +100 degree C) Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 degree F to +250 degree F (-40 degree C to +121 degree C) TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage Compatibility and Interchange Data Interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series and Holmbury HFT Series How it works Prior to connecting, thoroughly clean all mating surfaces and threads on both halves, the pull the coupler sleeve forward. To initiate the connection, align the coupler and plug, pushing/turning the coupler sleeve towards the plug while engaging the threads. Keep the mating halves aligned during the connection process. Allow the threads to pull the coupler onto the plug, do not push the coupler onto the plug.
