JBL AM7215/64 Two-way full range loudspeake - Conference Room AV

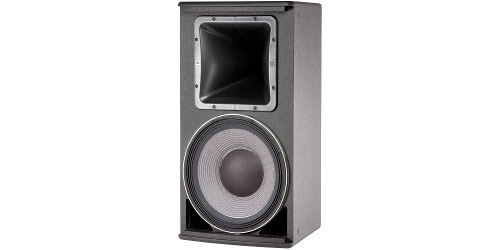

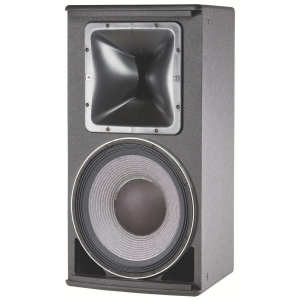

JBL AM7215/64 High Power 15 Inch 2 Way Installation Speaker (Black)

The AM7215/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. Frequency Range ( -10 dB) : 34 Hz - 20 kHz Frequency Response ( ± 3 dB) : 40 Hz - 18 kHz Coverage : 60° x 40° horn LF Driver : 2265H HF Driver : 2432H System Type : 15" Two - Way, High Power, Full - Range Dimensions (H x W x D) : 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) Weight : 27.2 kg (60 lb) Directivity Factor (Q) : 18.1 Directivity Index (DI) : 12.6 dB Crossover Modes : Bi-amp/Passive switchable Passive Crossover Frequency : 1.8 kHz Transducer Power Rating (AES) : LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs Long-Term System Power Rating (IEC) : Passive mode: 600 W (2400 W peak), 100 hrs Maximum SPL (dB-SPL, 1W @ 1m) : Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 124 dB-SPL cont avg (130 dB peak) System Sensitivity (1W @ 1m) : Passive mode: 96 dB SPL Nominal Impedance : 8 ohms
