Kyocera

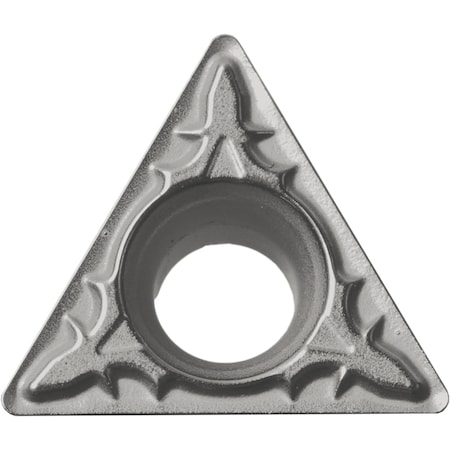

<ul><li>Insert for External Turning, Boring, Internal Facingm, Copying, Back Boring</li><li>Low Carbon Steel with 3 Cutting Edges</li><li>Inner structure has high toughness and chipping resistance along with thermal shock resistance</li><li>Application: Recommended cermet for high wear resistance</li></ul><p>Product Details:</p><ul><li>Insert Style: TPMT</li><li>Insert Size: 321</li><li>Chipbreaker: XP</li><li>Insert Grade: TN610</li><li>Material: Cermet</li><li>Coating Process: Uncoated</li><li>Coating / Composition: TiCN</li><li>[IC] Inscribed Circle (Decimal Inch): 0.3750</li><li>[IC] Inscribed Circle (mm): 9.53</li><li>[S] Thickness (Decimal Inch): 0.1250</li><li>[S] Thickness (mm): 3.18</li><li>[RE] Corner Radius (Decimal Inch): 0.0156</li><li>[RE] Corner Radius (mm): 0.40</li><li>[D1] Hole Diameter (Decimal Inch): 0.1732</li><li>[D1] Hole Diameter (mm): 4.40</li><li>Rake: Positive</li><li>[AN] Relief Angle (Degree): 11</li><li>Included Angle (Degree): 60</li><li>Primary Workpiece Material: Steel</li><li>Shape: Triangle</li><li>Cutting Edge Style: Low Carbon Steel</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 3</li><li>Application: External Turning, Boring, Internal Facing, Copying, Back Boring</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Finishing</li><li>Compatible Holders (Partial): ...-STLPR16-..., ...-STLPL16-..., ...-STWPR16-..., ...-STWPL16-...</li></ul><p >TN610 / TN620 / PV710 / PV720 Brochure</p>
