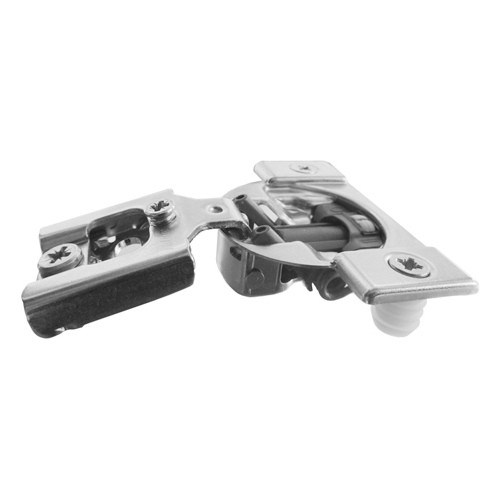

Blum 38N358B.05 Compact BLUMOTION 38N Hinge, Soft-Close, 105 Degree, 5/16 Overlay, Dowel

Blum Compact B038N series hinges for face frame cabinets with overlay doors. Features include Blumotion soft-close integrated into the hinge cup, one-piece design and 3-way in and out cam adjustment. For overlays of 3/8" to 3/4". Nickel plated. For overlays of 1" or greater enter B039C355B.16 into the search box.

Compact Blumotion 38N Hinge & Mounting Plate 5/16" Overlay

Swing open cabinet doors easily with this Blumotion soft close hinge. This hinges opens up to an 105-degree angle and has self-closing technology to keep your cabinets in great working order. Integrated Blumotion Soft Close 105 degree opening angle 5/16 Overlay (1/8" door protrusion) Self closing hinge Overload safety feature 7/16 (11mm) cup depth Dowels come pre-attached Material: Metal Hardware Item Type: Hinge Finish: Silver Finish

Make your kitchen or bathroom a quieter space with this 10-pack of Blumotion soft-close hinges. The dowels on these hinges come pre-attached for quick installation.<br><br><br>Integrated Blumotion Soft Close <br>105 degree opening angle <br>5/16 Overlay (1/8" door protrusion) <br>Self closing hinge <br>Overload safety feature <br>7/16 (11mm) cup depth <br>Dowels come pre-attached <br>Material: Metal <br>Hardware Item Type: Hinge <br>Finish: Silver Finish<br>

Reduce the sound of slamming cabinets in your kitchen with this pack of five soft-close hinges. The overload safety feature helps protect these hinges when the door is closed too hard.<br><br><br>Integrated Blumotion Soft Close <br>105 degree opening angle <br>5/16 Overlay (1/8" door protrusion) <br>Self closing hinge <br>Overload safety feature <br>7/16 (11mm) cup depth <br>Dowels come pre-attached <br>Material: Metal <br>Hardware Item Type: Hinge <br>Finish: Silver Finish<br>

Open or close cabinets with ease with this soft-close compact cabinet hinge. This hinge creates a generous 105-degree opening angle to allow any door to swing ajar freely. Integrated Blumotion Soft Close 105 degree opening angle 5/16 Overlay (1/8" door protrusion) Self closing hinge Overload safety feature 7/16 (11mm) cup depth Dowels come pre-attached Material: Metal Hardware Item Type: Hinge Finish: Silver Finish

<p><b>COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.<br></b></p><p><b>Overload&nbsp;feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.<br></b></p><p><b>The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.<br></b></p><p><b>COMPACT hinges are small profile for face frame cabinets.</b></p><p><br></p><ul><li>35mm Cup Diameter, 45mm Boring Pattern</li><li>11mm Cup Depth Minimum</li><li>For 5/16" Overlays</li><li>Soft close is integrated into the hinge cup.</li><li>One piece assembly, no additional mounting plate is required.</li><li>Deactivation switch for small/light doors.</li><li>Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).</li><li>105° opening, concealed, soft-closing hinge</li><li>Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.</li><li>One-piece wraparound hinge</li><li>7/16" cup depth</li></ul><p>&nbsp;</p><p><b>&nbsp;Adjustability:</b></p><ul><li>+/- 1/8" height adjustment.</li><li>+/- 1/16" side adjustment only.</li><li>+3/32 and -1/32"cam depth adjustment.</li></ul><p><br></p><p><b>Included:</b></p><ul><li>Blum Hinge(s) with 5/16 Overlay. Part # 38N358B.05</li><li>“Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567</li></ul><p>&nbsp;</p><p><b>Made in:</b></p><ul><li>Hinge made in: Austria</li><li>Dexter Group screws are made in USA</li></ul><p>&nbsp;</p><p><b>Trademarks</b></p><ul><li>Blum and the Blum Logo are trademarks of Blum Inc.</li><li>Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.</li></ul>

<p><b>COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.<br></b></p><p><b>Overload&nbsp;feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.<br></b></p><p><b>The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.<br></b></p><p><b>COMPACT hinges are small profile for face frame cabinets.</b></p><p><br></p><ul><li>35mm Cup Diameter, 45mm Boring Pattern</li><li>11mm Cup Depth Minimum</li><li>For 5/16" Overlays</li><li>Soft close is integrated into the hinge cup.</li><li>One piece assembly, no additional mounting plate is required.</li><li>Deactivation switch for small/light doors.</li><li>Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).</li><li>105° opening, concealed, soft-closing hinge</li><li>Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.</li><li>One-piece wraparound hinge</li><li>7/16" cup depth</li></ul><p>&nbsp;</p><p><b>&nbsp;Adjustability:</b></p><ul><li>+/- 1/8" height adjustment.</li><li>+/- 1/16" side adjustment only.</li><li>+3/32 and -1/32"cam depth adjustment.</li></ul><p><br></p><p><b>Included:</b></p><ul><li>Blum Hinge(s) with 5/16 Overlay. Part # 38N358B.05</li><li>“Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567</li></ul><p>&nbsp;</p><p><b>Made in:</b></p><ul><li>Hinge made in: Austria</li><li>Dexter Group screws are made in USA</li></ul><p>&nbsp;</p><p><b>Trademarks</b></p><ul><li>Blum and the Blum Logo are trademarks of Blum Inc.</li><li>Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.</li></ul>

<p><b>COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.<br></b></p><p><b>Overload&nbsp;feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.<br></b></p><p><b>The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.<br></b></p><p><b>COMPACT hinges are small profile for face frame cabinets.</b></p><p><br></p><ul><li>35mm Cup Diameter, 45mm Boring Pattern</li><li>11mm Cup Depth Minimum</li><li>For 5/16" Overlays</li><li>Soft close is integrated into the hinge cup.</li><li>One piece assembly, no additional mounting plate is required.</li><li>Deactivation switch for small/light doors.</li><li>Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).</li><li>105° opening, concealed, soft-closing hinge</li><li>Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.</li><li>One-piece wraparound hinge</li><li>7/16" cup depth</li></ul><p>&nbsp;</p><p><b>&nbsp;Adjustability:</b></p><ul><li>+/- 1/8" height adjustment.</li><li>+/- 1/16" side adjustment only.</li><li>+3/32 and -1/32"cam depth adjustment.</li></ul><p><br></p><p><b>Included:</b></p><ul><li>Blum Hinge(s) with 5/16 Overlay. Part # 38N358B.05</li><li>“Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567</li></ul><p>&nbsp;</p><p><b>Made in:</b></p><ul><li>Hinge made in: Austria</li><li>Dexter Group screws are made in USA</li></ul><p>&nbsp;</p><p><b>Trademarks</b></p><ul><li>Blum and the Blum Logo are trademarks of Blum Inc.</li><li>Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.</li></ul>

<p><b>COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.<br></b></p><p><b>Overload&nbsp;feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.<br></b></p><p><b>The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.<br></b></p><p><b>COMPACT hinges are small profile for face frame cabinets.</b></p><p><br></p><ul><li>35mm Cup Diameter, 45mm Boring Pattern</li><li>11mm Cup Depth Minimum</li><li>For 5/16" Overlays</li><li>Soft close is integrated into the hinge cup.</li><li>One piece assembly, no additional mounting plate is required.</li><li>Deactivation switch for small/light doors.</li><li>Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).</li><li>105° opening, concealed, soft-closing hinge</li><li>Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.</li><li>One-piece wraparound hinge</li><li>7/16" cup depth</li></ul><p>&nbsp;</p><p><b>&nbsp;Adjustability:</b></p><ul><li>+/- 1/8" height adjustment.</li><li>+/- 1/16" side adjustment only.</li><li>+3/32 and -1/32"cam depth adjustment.</li></ul><p><br></p><p><b>Included:</b></p><ul><li>Blum Hinge(s) with 5/16 Overlay. Part # 38N358B.05</li><li>“Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567</li></ul><p>&nbsp;</p><p><b>Made in:</b></p><ul><li>Hinge made in: Austria</li><li>Dexter Group screws are made in USA</li></ul><p>&nbsp;</p><p><b>Trademarks</b></p><ul><li>Blum and the Blum Logo are trademarks of Blum Inc.</li><li>Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.</li></ul>

<p><b>COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.<br></b></p><p><b>Overload&nbsp;feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.<br></b></p><p><b>The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.<br></b></p><p><b>COMPACT hinges are small profile for face frame cabinets.</b></p><p><br></p><ul><li>35mm Cup Diameter, 45mm Boring Pattern</li><li>11mm Cup Depth Minimum</li><li>For 5/16" Overlays</li><li>Soft close is integrated into the hinge cup.</li><li>One piece assembly, no additional mounting plate is required.</li><li>Deactivation switch for small/light doors.</li><li>Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).</li><li>105° opening, concealed, soft-closing hinge</li><li>Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.</li><li>One-piece wraparound hinge</li><li>7/16" cup depth</li></ul><p>&nbsp;</p><p><b>&nbsp;Adjustability:</b></p><ul><li>+/- 1/8" height adjustment.</li><li>+/- 1/16" side adjustment only.</li><li>+3/32 and -1/32"cam depth adjustment.</li></ul><p><br></p><p><b>Included:</b></p><ul><li>Blum Hinge(s) with 5/16 Overlay. Part # 38N358B.05</li><li>“Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567</li></ul><p>&nbsp;</p><p><b>Made in:</b></p><ul><li>Hinge made in: Austria</li><li>Dexter Group screws are made in USA</li></ul><p>&nbsp;</p><p><b>Trademarks</b></p><ul><li>Blum and the Blum Logo are trademarks of Blum Inc.</li><li>Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.</li></ul>
