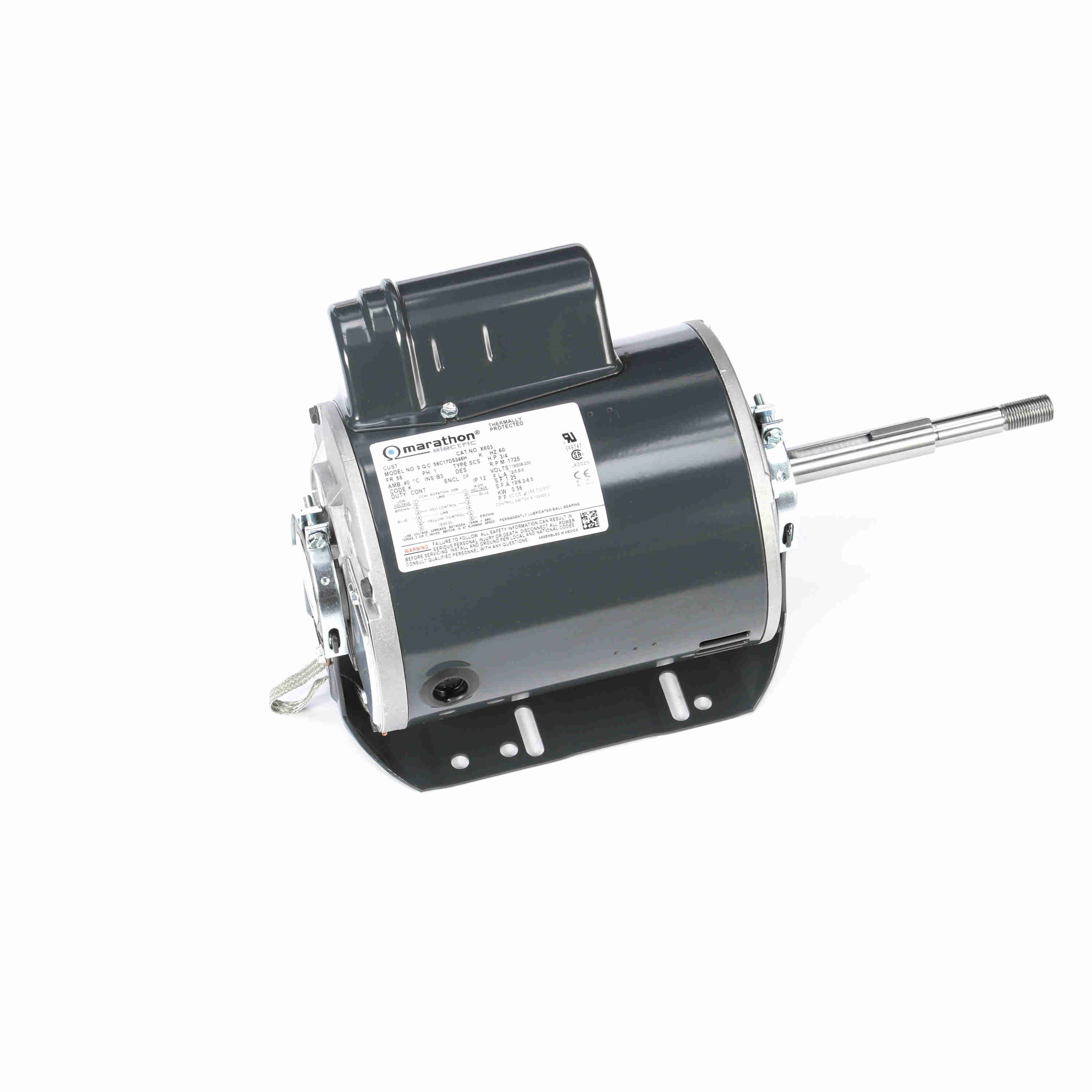

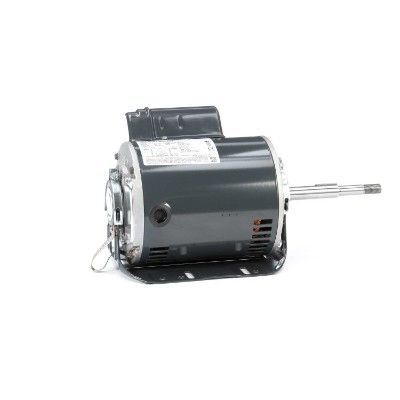

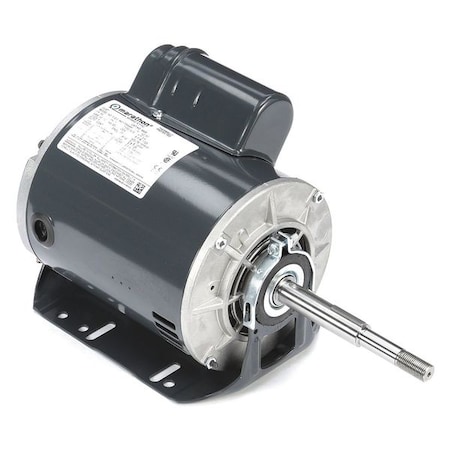

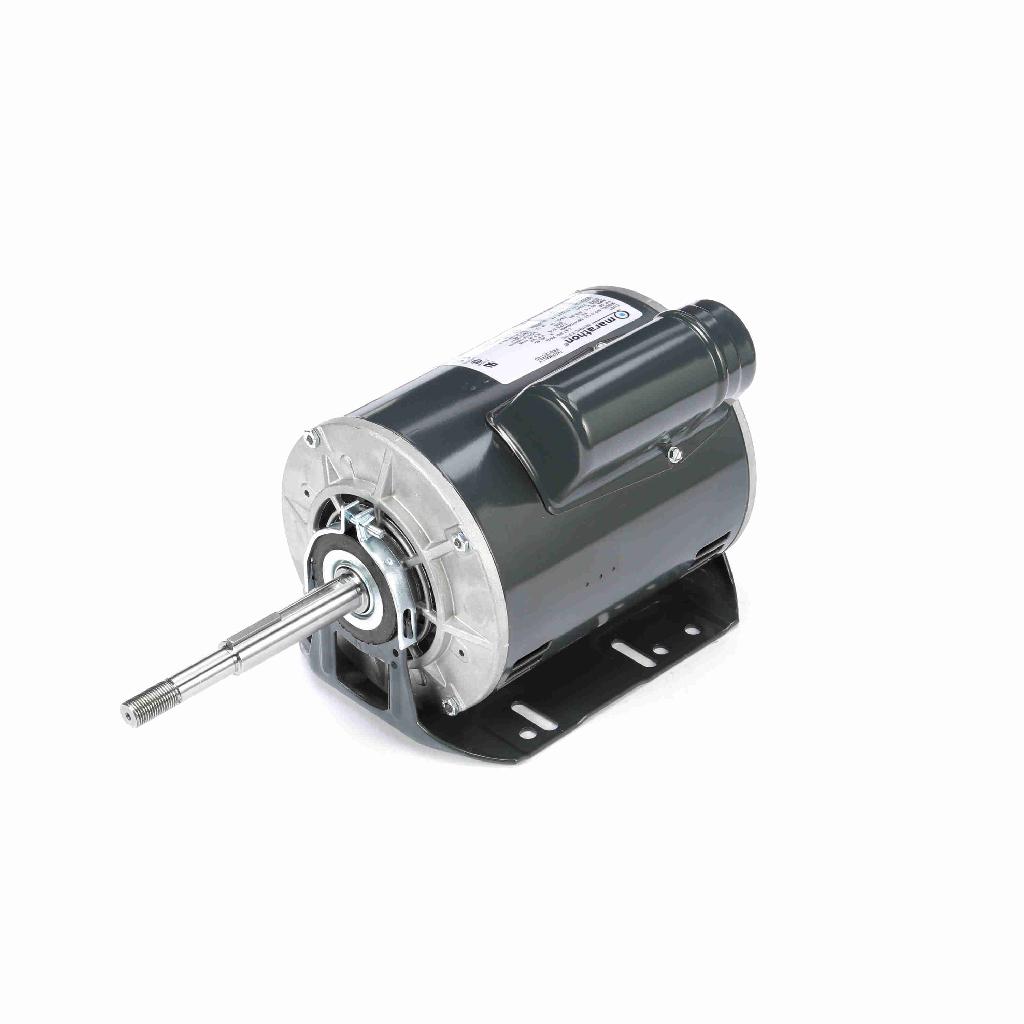

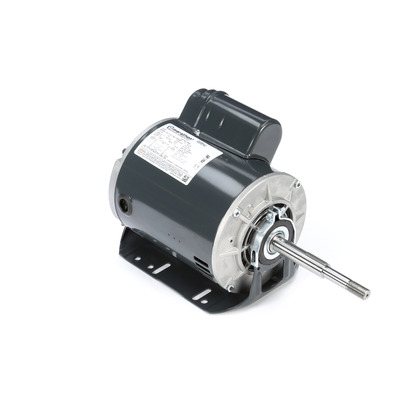

Marathon 056C17D5346, Motor, 3/4 HP, 115/208-230 Volts, 6.0 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 56 Frame, Resilient Base, Rolled Steel Frame, Catalog No: X603

'Direct Drive Blower Motor, Capacitor-Start Motor Type, Open Dripproof Enclosure, 3/4 HP, 1725 Nameplate RPM, Voltage 115/208-230, 12/5.8-6 Full Load Amps, 60 Hz, 1 Phase, 56 Frame, Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Rigid Base, Shaft Orientation Horizontal, Bearings Ball, Thermal Protection Auto, Rotation CCW, Nominal Efficiency 66.0 Percent, Body Dia. 6-1/2 In., Length Less Shaft 9-7/16 In.'

Keep air circulating with this direct drive blower motor. It features a capacitor-start design, which is typically used in pumps, compressors, tools, conveyors, farm equipment, and industrial ventilators. It also features an open drip proof enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 3/4<br /> Nameplate RPM: 1725<br /> Voltage: 115/208-230<br /> Full Load Amps: 12.0/5.8-6.0<br /> Hz: 60<br /> Phase: 1<br /> Frame: 56<br /> Motor Service Factor: 1.25<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CCWSE<br /> Nominal Efficiency: 66.0%<br /> Body Dia.: 6-1/2"<br /> Length Less Shaft: 9-7/16"<br /> Overall Length: 15"<br /> Shaft Dia.: 3/4"<br /> Shaft Length: 5-11/16"<br /> Motor Shaft Design: Threaded<br /> Capacitor Required: Included<br /> Resilient Ring Dia.: 2-1/2"<br /> Ring to Ring Center: 9-1/8"<br /> RPM Range: 1701-1800<br /> Standards: UL Recognized (E6312), CSA Certified (LR2025)<br /> Application: Commercial Laundry Dryer<br /> Manufacturers Warranty Length: 1 yr.
