LEESON ELECTRIC . 116703.00

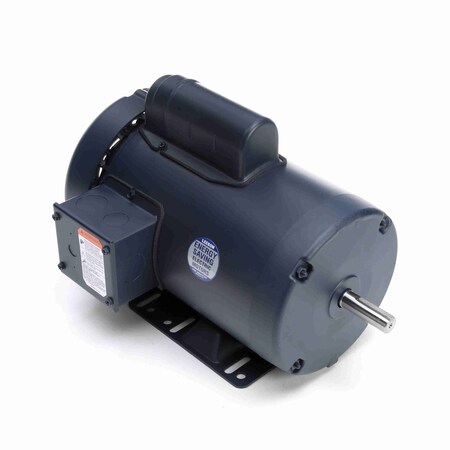

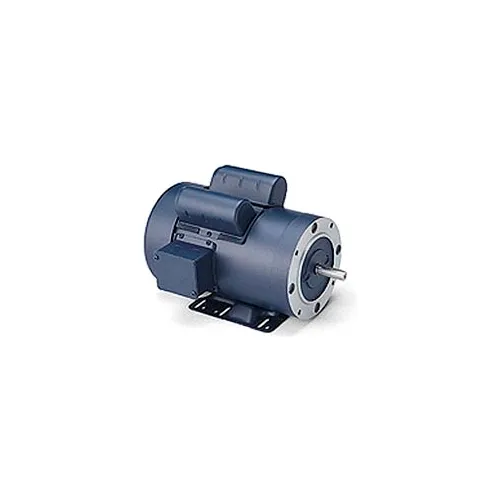

The single phase 1 1/2 HP LEESON Pressure Washer Duty Electric Motor is specially suited for use in hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. UL listed and CSA approved. Capacitor Run Yes, Shank Length in. 2, HP 1 1/2, Rated RPM 1,800, Rigid Base Yes, Totally Enclosed Housing Yes, Amps 8.6, Shank Diameter in. 5/8, Auto Overload Protection No, Volts 115/208-230, Frame Type 56HC, UL Yes, Manual Overload Protection Yes, Hertz 60, Motor Phases 1, Open Drip Proof Housing No, Capacitor Start Yes, Rotation Direction Reversible, CSA Yes, Resilient Base No, Reversible Yes. Double-shielded ball bearings are pre-lubricated with a special formulation for moisture resistance to provide extra long life Allows for operating temperatures ranging from -20F to +350F Extra-heavy varnish on winding to provide additional protection High efficiency, reduced amperage energy-saving design Dynamically balanced rotor for low vibration operation High temperature copper magnet wire for high overload capacity Manual reset overload protects against motor overload and automatic resets Reversible rotation direction adds versatility Continuous duty operation High service factor of 1.15 C-Face with base mounting allows for direct mounting to a gearbox or other direct coupled equipment Totally enclosed, fan-cooled TEFC housing has an external fan to provide cooling by blowing air over the outside frame Model Number: 116703.00. Size: 1. Color: Brown. Age Group: Adult.
