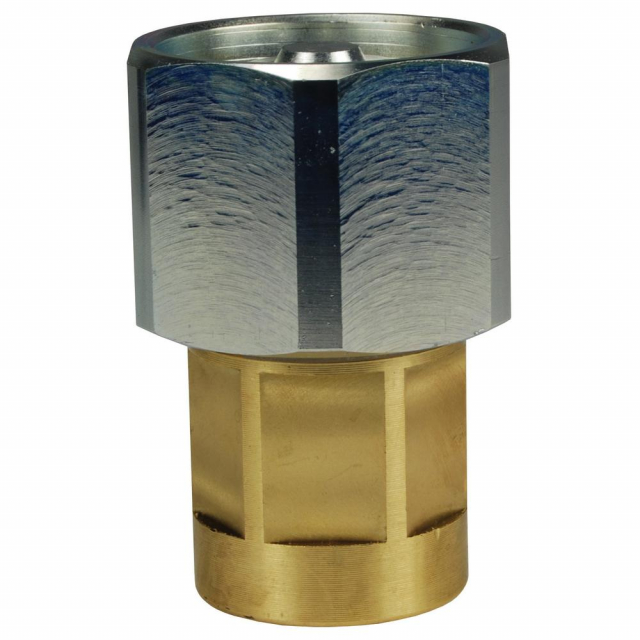

Order 12WF12-B-HN by Dixon Valve W-Series Hex-Nut Female Coupler - US Mega Store

1-1/2" Wing Style, 1-1/2" NPTF Brass (200372-12) Hex Nut

<p><strong>Dixon, 12WF12-B-HN, W-Series 1-1/2" Brass Wingstyle Interchange Hex-Nut Female Coupler NPTF</strong></p><p><strong>Construction</strong></p><ul><li>Machined components are manufactured using solid bar stock</li><li>Stainless steel retaining rings and springs maximize corrosion resistance and extend service life</li><li>Steel componentry is plated using ROHS Compliant Trivalent Chrome</li><li>Nitrile (Buna-N) seals are standard</li><li>Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection</li><li>Redundant O-Ring on the coupler body will engage nipple for secondary sealing support</li></ul><p><strong>Compatibility &amp; Interchange Data</strong></p><ul><li>Aeroquip 5100-Series, Parker 6100-Series</li><li>Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series</li></ul><p><strong>Safety notes</strong></p><ul><li>Although wingstyle couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety. If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process</li><li>W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures</li><li>WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling</li></ul>
