WILWOOD . 140-11291-R

Wilwood D52 Front Caliper Kit w Piston Rotor for 85-02 Chevy Astro 140-11291-R Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below. Features: Direct replacement for the single piston the OE cast iron calipers Includes D52 calipers, hardened slide pins and BP-10 high friction pads Floating construction Forged billet aluminum body Includes high-temperature seals Lightweight, only 5.5 pounds Inlet fitting: 7/16-20" banjo Forged billet bodies and FEA computer designed reinforced bridges for excellent strength Two piston pad clamping power Stainless steel pistons for corrosion resistance Specifications: Caliper Material: Aluminum Caliper Color: Red Powder Coat

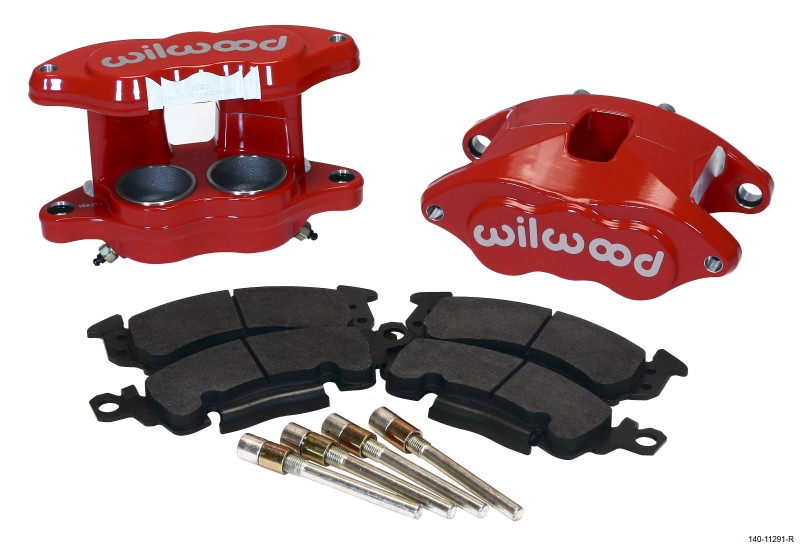

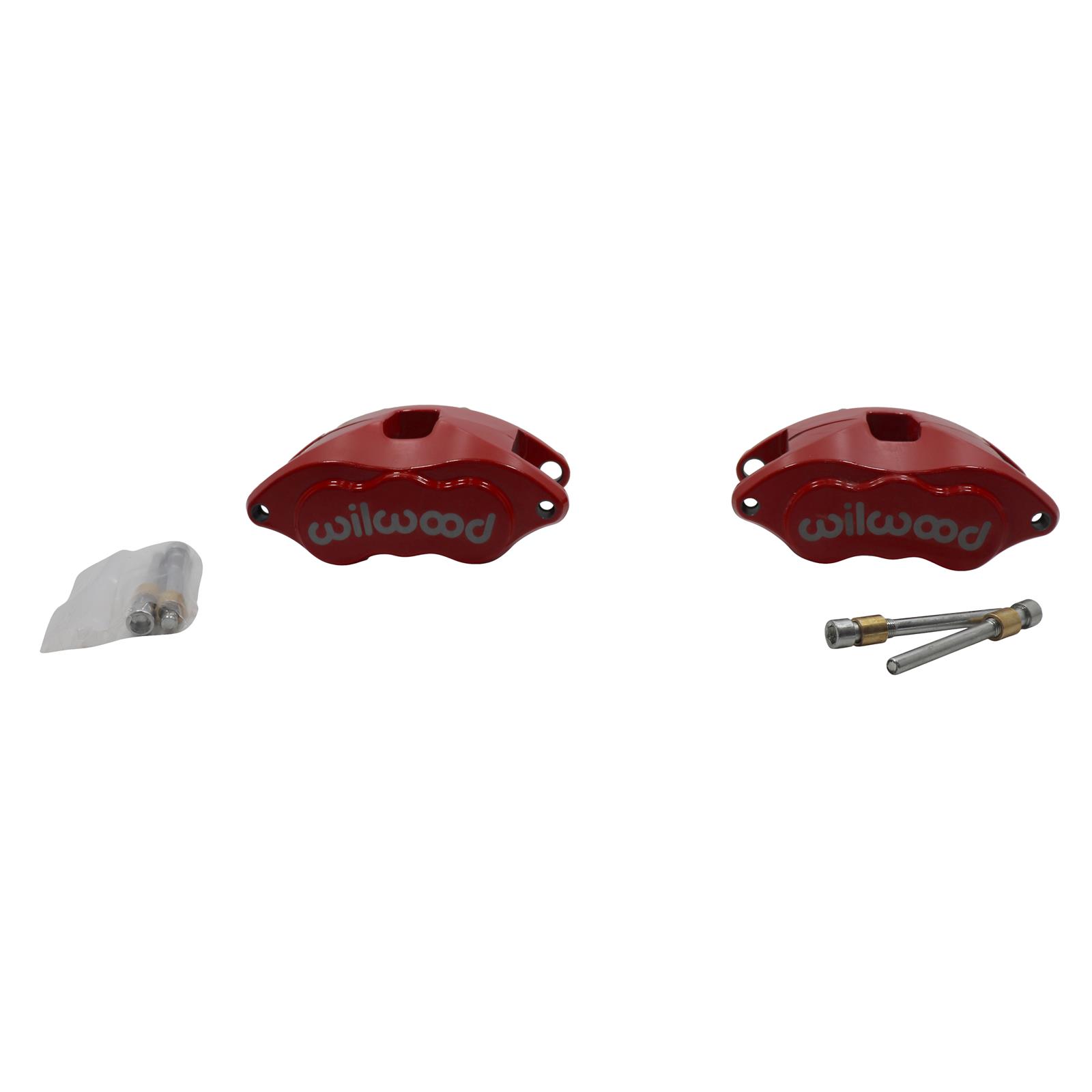

<b>Brand New Wilwood D-52 Brake Caliper Set (Part # 140-11291-R) for Both Front Wheels.</b> </p><ul> <li>Features Powder Coated <b>Red Calipers</b>. </p></ul> <p> <b>Wilwood brake kits</b> consist of specifically engineered and matched groups of components designed to provide superior brake system performance and custom appeal over a wide range of applications. </p></ul> <p> <b>Brake kit includes parts for both front wheels:</b> </p><ul> <p> <li><b>D52 Calipers - Red</b> <li><b>BP-10</b> Smart Compound Brake Pads <li>Caliper Slide Pin Bolts with Sleeves <li>Complete kit weighs approximately <b>17 lbs</b> </p></ul> <p>
