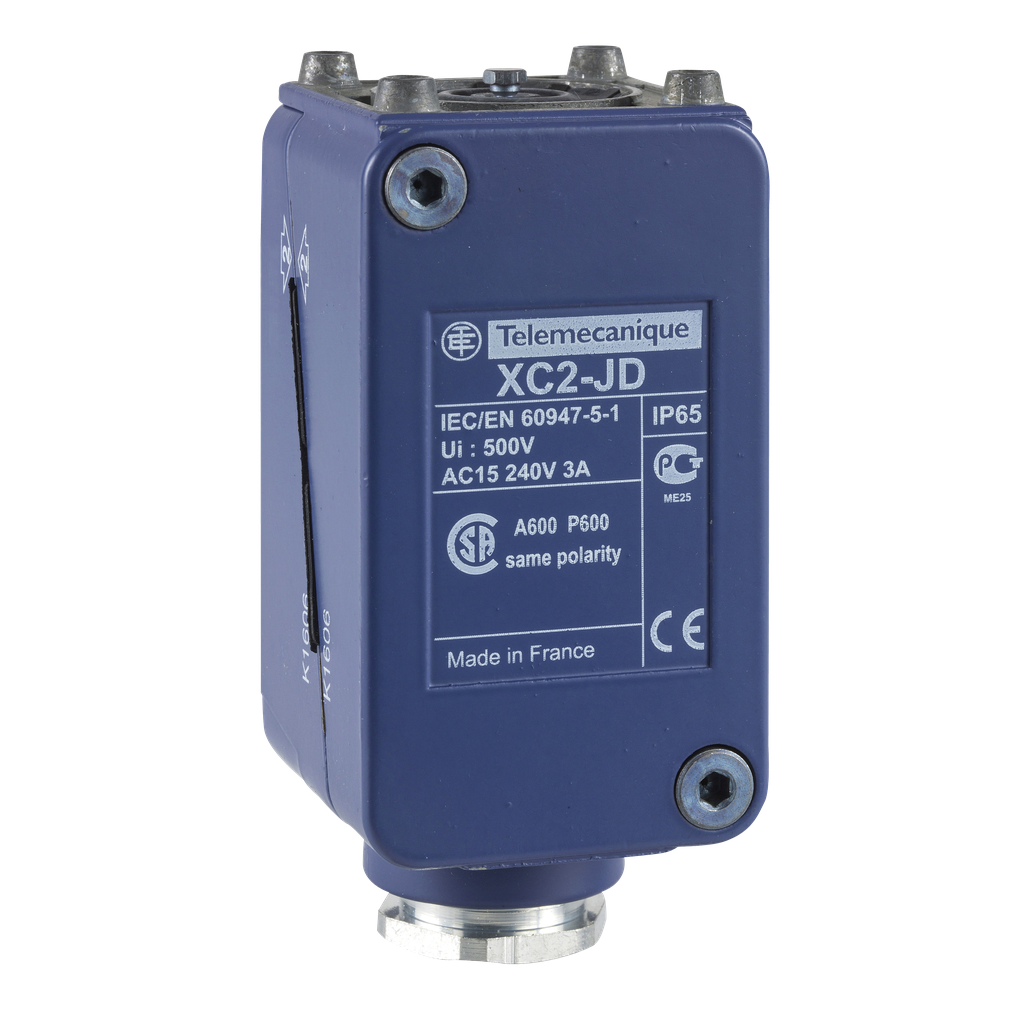

Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 2C/O | Mayer Electric

SQUARE D . SQDZC2JD48

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00standard format
Attribute012 C/O
Attribute02plug-in body
Attribute03Telemecanique Limit switches XC Standard
Attribute04snap action
Attribute05silver plated contacts
Attribute06ZC2JE83 || ZC2JE04 || ZC2JE82 || ZC2JE85 || ZC2JE07 || ZC2JE81 || ZC2JE84 || ZC2JE06
Attribute07metal
Attribute081 tapped entry for Pg 13.5 cable gland (included)
Attribute09limit switch body part with contact
Attribute10XC2J
Attribute112 3 positions || 2 sequential
Attribute12ZC2J
Attribute132
Attribute1418 months
Attribute1581-81 mm
Attribute165000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Attribute17(11-12)NC || (13-14)NO || (21-22)NC || (23-24)NO
Attribute1810 A cartridge fuse gG
Attribute19500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
Attribute20, Attribute27without
Attribute210.01 m/min
Attribute223 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Attribute23screw-clamp terminals 1 x 0.75...2 x 1.5 mm?
Attribute2410 A
Attribute2542 mm
Attribute2641 mm
Attribute280.38 kg
Attribute290.25 mOhm IEC 60255-7 category 3
Attribute30, Attribute31Yes
Attribute32ENVPEP110614EN
Attribute33Green Premium product
Attribute34Pro-active compliance (Product out of EU RoHS legal scope)
Attribute35Reference contains Substances of Very High Concern above the threshold
Attribute36Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute37-40-70 ?C
Attribute38corrosive
Attribute39-25-70 ?C standard environment
Attribute40IK08
Attribute41IP65
AttributeKey00Series Name
AttributeKey01Contacts Type And Composition
AttributeKey02Body Type
AttributeKey03Range Of Product
AttributeKey04Contact Operation
AttributeKey05Contacts Material
AttributeKey06Associated Head
AttributeKey07Body Material
AttributeKey08Cable Entry
AttributeKey09Product Or Component Type
AttributeKey10Product Compatibility
AttributeKey11Number Of Steps
AttributeKey12Device Short Name
AttributeKey13Number Of Poles
AttributeKey14Warranty
AttributeKey15, height_AttribHeight
AttributeKey16Electrical Durability
AttributeKey17Terminals Description Iso N?1
AttributeKey18Short-Circuit Protection
AttributeKey19[Ui] Rated Insulation Voltage
AttributeKey20Positive Opening
AttributeKey21Minimum Actuation Speed
AttributeKey22[Ie] Rated Operational Current
AttributeKey23Electrical Connection
AttributeKey24[Ithe] Conventional Enclosed Thermal Current
AttributeKey25, width_AttribWidth
AttributeKey26, length_AttribDepth
AttributeKey27Local Display
AttributeKey28, Weight_AttribNet Weight
AttributeKey29Maximum Resistance Across Terminals
AttributeKey30Rohs Exemption Information
AttributeKey31Mercury Free
AttributeKey32Environmental Disclosure
AttributeKey33Sustainable Offer Status
AttributeKey34Eu Rohs Directive
AttributeKey35Reach Regulation
AttributeKey36California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey37Ambient Air Temperature For Storage
AttributeKey38Environmental Characteristic
AttributeKey39Ambient Air Temperature For Operation
AttributeKey40Ik Degree Of Protection
AttributeKey41Ip Degree Of Protection
DimensionUnitmm
Extra Product NameLimit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 2C/O | Mayer Electric
UPC3389110325645
Weight0.38
WeightUnitkg
depth, length41.0
height162.0
jsonUrlData/Product/SQUARE-D-Limit-switch-body-part-with-contact-Limit-switches-XC-Standard-ZC2J-plug-in-without-display-2C-O-3389110325645
jsonUrlData29f5e51a8-6ced-43a0-882a-aeea00593344
moq, multiple, tierMinQty11
MPN, SKUSQDZC2JD48
qtyInStock0
tierPrice1254.19
width42.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZC2JD48111 @ $254.19
