Vaxis ATOM 600 KV Wireless TX/RX Kit for RED KOMODO VA20-600KV-TR01 - Filmtools

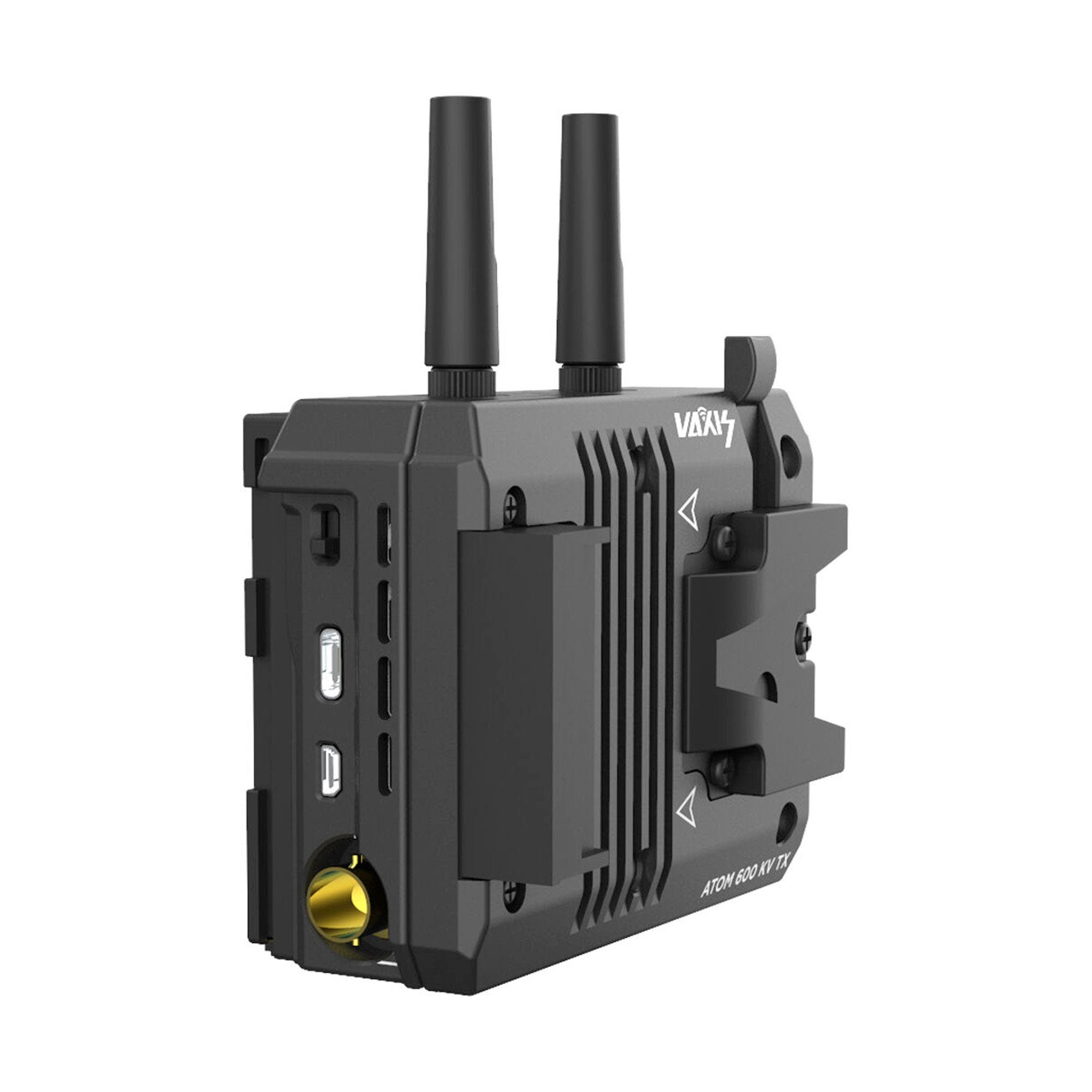

Wirelessly transmit and receive up to 1080p60 video to monitor your RED KOMODO camera with this ATOM 600 KV Wireless TX/RX Kit from Vaxis. This transmitter and receiver kit allows you to wirelessly transmit 1080p60 video signals to the Vaxis ATOM 500 SDI receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 600'.The transmitter features one SDI input and SDI and HDMI loop outputs, and it also supports multicast over Wi-Fi to up to three mobile iOS devices using the Vaxis Vision app for monitoring. The ATOM 500 receiver features one SDI and one HDMI output for a monitor, switch, or other video destination. They both feature a bright, clear OLED display and both feature smart cooling fan that can be turned on and off to prevent noise during your production.The transmitter mounts onto the KOMODO's dual-battery plate and powers using a V-mount plate for a separately available high-capacity V-mount battery, and it will also pass through power to the camera. The plate can be installed in a horizontal or vertical configuration that can be changed by the user by removing four screws on the battery plate. The receiver is powered using a USB Type-C power source or by using its L-series battery plate. Transmitter unit transmits up to 1080p60 wireless video up to 600' line of sight Transmits with less than 80 ms latency Transmitter features one SDI input and SDI and HDMI loop outputs; receiver features one

Specifications: Interface: 600KV TX: ·SDI input ·SDIHDMI Loop Out RX: ·HDMI Output ·SDI Output Voltage: 600KV TX: ·6-18V RX: ·5V DC Power Consumption: 600KV TX: ·6.5w RX: ·6.5w MicroHDMI Output Video Format: 600KV TX: ·720P@5060Hz ·1280x1024@60Hz ·1080I@5060Hz ·1080P@2425305060Hz HDMI Output Video Format: RX: ·720P@5060Hz ·1280x1024@60Hz ·1080I@5060Hz ·1080P@2425305060Hz SDI Input Video Format: 600KV TX: ·720P@5060Hz ·1280x1024@60Hz ·1080I@5059.9460Hz ·1080P@5060Hz SDI Output Video Format: 600KV TX: ·720P@5060Hz ·1080I@5059.9460Hz ·1080P@23.9824252997305059.9460Hz ·1080PSF23.98242529.9730Hz RX: ·720P@5060Hz ·1080I@5059.9460Hz ·1080P@23.98242529.97305059.9460Hz ·1080PSF23.98242529.9730Hz Weight: 600KV TX: ·400g RX: ·170g Dimensions: 600KV TX: ·96.5x74x50.4mm RX: ·113x63.5x20mm Frequency: ·5GHz Transmission Power: ·17dbm Delay: ·80ms Support iOS and Android mobile phone system. Package List: ·1xAtom 600 KV TX ·1xAtom 500 SDI RX ·1x 39 inch SDI Cable ·1x 12 inch SDI Cable ·2x Radar Antenna
