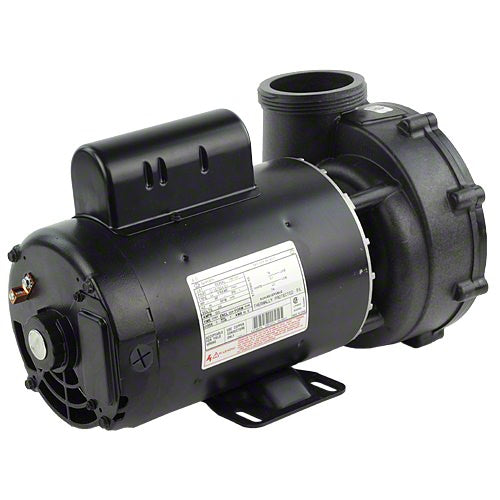

Waterway Viper 5 HP Pump 3722021-1V | Waterway 3722021-1V ? Sunplay

The Viper has a dual speed motor with four sets of insulated windings for increased efficiency, and a 2-1/2 intake and discharge Spa Pump Features: Viper wet end designed specifically for 56-frame motors; Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life; Two speed motors have four sets of insulated windings for increased efficiency; 56-frame motor for added strength, cooler operating temperature, and longer motor life; Large 2-1/2 intake for improved flow performance and reduced noise; Large 8 diameter wet end for increased volume capacity; Split capacitor, (start and run) for less energy consumption; Thermally protected to extend life expectancy of motor; Highly versatile wet end can be rotated every 90 degrees; Dimensions (H x W x L): 9.08 x 8.05 x 15.72; California Title 20 Compliant. Product Specifications: Motor Voltage: 230v Speed: 2 Speed (2-Spd) Motor Amperage/Wattage: 16.4A/4.8A Horsepower: 5.0hp Pump Model: Viper Suction Pipe Size: 2-1/2 Suction Connection Type: Male Buttress Thread (mbt) Suction Style: Center Discharge Pipe Size: 2-1/2 Discharge Connection Type: Male Buttress Thread (mbt) Discharge Style: Side Motor Frame: 56 Frame Thru-Bolt Drain Plug Location: 3,4,6,9 o`clock

Waterway 3722021-1V 2.5" x 2.5" 230V 5.0HP Viper PumpFeatures:Viper wet end designed specifically for 56-frame motors Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life Two speed motors have four sets of insulated windings for increased efficiency 56-frame motor for added strength, cooler operating temperature, and longer motor life Large 2-1/2" intake for improved flow performance and reduced noise Large 8" diameter wet end for increased volume capacity Split capacitor, (start and run) for less energy consumption Thermally protected to extend life expectancy of motor Highly versatile wet end can be rotated every 90 degrees Dimensions (H x W x L): 9.08" x 8.05" x 15.72"Specifications:Complete Pump Type: Portable Spa PumpSpeed: 2 Speed (2-Spd)Motor Voltage: 230vDrain Plug Location: 3,4,6,9 o`clockPump to Motor Foot Types: 1Suction Style: CenterSuction Connection (Physical Dimension): 3-11/16" odSuction Connection Type: Male Buttress Thread (mbt)Suction Pipe Size: 2-1/2"Discharge Style: SideDischarge Connection (Physical Dimension): 3-11/16" odDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2-1/2"Horsepower: 5.0hpMotor Frame: 56 Frame Thru-BoltMotor Amperage/Wattage: 16.4A/4.8APump Volute Fastening Type: 8 ScrewsVolute/Sealplate Number: 315-1500
