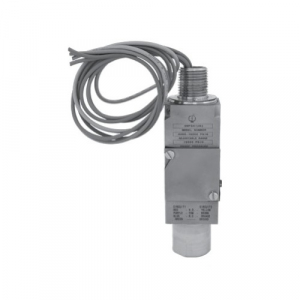

Order 9WPSH092CCVN2S by Winters Explosion Proof Pressure Switch, 700-5000 PSI - US Mega Store

Winters . 9WPSH092CCVN2S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWinters
Attribute00, Attribute01, Attribute18, Attribute19316 SS
Attribute02, Attribute20±2% of full scale
Attribute03, Attribute211/4" NPTF (1/2" NPTF optional)
Attribute04, Attribute221/2" NPTM, 18 AWG, 18" (457 mm) free leads
Attribute05, Attribute23VACuum and low pressure - seals: FKM diaphragm High pressure - piston: SS with PTFE backup ring and FKM o-ring
Attribute06, Attribute24Internal adjustment wheel with built in locking set-screws
Attribute07, Attribute25Fixed
Attribute08, Attribute2611 amps at 125/250 VAC 5 amps at 30 Vdc
Attribute09, Attribute271 x SPDT (2 x SPDT optional)
Attribute10, Attribute2810 g 10-500 Hz, MIL-STD-202F
Attribute11, Attribute2950 g 11 ms, MIL-S-901C
Attribute12, Attribute30EN55011
Attribute13, Attribute31-40°F to 149°F (-40°C to 65°C)
Attribute14, Attribute32NEMA 4X, 7 & 9
Attribute15, Attribute33CSA approved (Canada and USA) for use in hazardous locations Class I, Div. 1, Groups B, C & D; Class II, Div. 1, Groups E, F & G CRN registered (up to 3,000 psi model) ANSI Dual Seal Compliant NACE MR0175-2009
Attribute16, Attribute342.5 million cycles
Attribute17, Attribute351.85 lbs (839 grams)
AttributeKey00, AttributeKey18Housing Material
AttributeKey01, AttributeKey19Port Material
AttributeKey02, AttributeKey20Accuracy
AttributeKey03, AttributeKey21Pressure Connection
AttributeKey04, AttributeKey22Electrical Connection
AttributeKey05, AttributeKey23Wetted Parts
AttributeKey06, AttributeKey24Set Point Adjustment
AttributeKey07, AttributeKey25Deadband
AttributeKey08, AttributeKey26Contact Rating
AttributeKey09, AttributeKey27No. of Contacts
AttributeKey10, AttributeKey28Vibration
AttributeKey11, AttributeKey29Shock
AttributeKey12, AttributeKey30EMI/RFI Protection E
AttributeKey13, AttributeKey31Ambient Temperature
AttributeKey14, AttributeKey32Enclosure Rating
AttributeKey15, AttributeKey33Approvals
AttributeKey16, AttributeKey34Typical Life
AttributeKey17, AttributeKey35, Weight_AttribWeight
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Winters 9WPSH092CCVN2S
ConditionNEW
Extra Product NameOrder 9WPSH092CCVN2S by Winters Explosion Proof Pressure Switch, 700-5000 PSI - US Mega Store
Weight1.85
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKU9WPSH092CCVN2S
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Winters, 9WPSH092CCVN2S, Explosion Proof Compact Pressure Switch, 9 Wps, 700 to 5000 Psi, 1/2" Npt </strong> </p> <p><strong>Features: </strong> </p> <ul><li>VAC to 10,000 psi pressure range </li> <li>Explosion proof SPDT or DPDT switch </li> <li>Stainless steel with FKM and PTFE wetted parts </li> <li>ANSI dual seal design </li> <li>Diaphragm seal/piston sensor </li> <li>Safe to adjust during operation </li> <li>Lockable setpoint wheel to avoid shifting during operation </li> <li>&plusmn;2% of full scale accuracy </li> <li>NEMA 4X, 7 & 9 enclosure rating </li> <li>CSA approved for hazardous locations </li> <li>Designed for sour gas applications requiring NACE standards MR0175-2009 </li> <li>CRN registered (up to 3,000 psi models) </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Suitable for hazardous locations including safety panels and with pump and gas compressors, turbines and other oil & gas applications </li> <li>Appropriate for oil & gas, power plants, chemical facilities and water treatment </li> <li>Designed for hazardous locations where an explosion proof switch is required </li> </ul>
tierPrice11159

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com9WPSH092CCVN2S1-211 @ $1159.00
heavydutydepot.com9WPSH092CCVN2S1-211 @ $1159.00
globaltestsupply.com9WPSH092CCVN2S12 to 3 Weeks1
