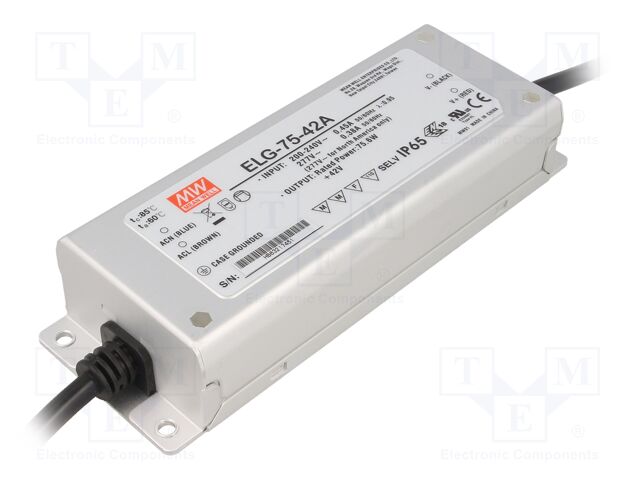

Mean Well Led Driver, Constant Current/volt, 75.6W Rohs Compliant: Yes - ELG-75-42A

<b>Features</b><br>Constant voltage+constant current <br>BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA auxiliary output (ELG-150 only)<br>Optional CCC models available<br>5 years warrantymodes<br>Universal AC input (up to 305VAC) / Full range<br>High efficiency up to 91%<br>No load / Standby power consumption <0.5W<br>Meet 6KV surge immunity level (IEC61000-4-5)<br>Class 2 power unit<br>Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires<br>Suitable for dry / damp / wet locations<br>Suitable for LED lighting and street lighting applications<br>Protections: Short circuit / Over current / Over voltage / Over temp.<br>Multiple models for choice:<br>A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer<br>B-Type: IP67 rated. Constant current level adjustable through output cable with built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)<br>Blank-Type: IP67 rated. Cable for I/O connection<br>D2-Type: IP67 rated. Smart timer dimming function*, contact MEAN WELL for details<br>DA-Type: IP67 rated. DALI control technology

<b>Features</b><br>Constant voltage+constant current <br>BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA auxiliary output (ELG-150 only)<br>Optional CCC models available<br>5 years warrantymodes<br>Universal AC input (up to 305VAC) / Full range<br>High efficiency up to 91%<br>No load / Standby power consumption <0.5W<br>Meet 6KV surge immunity level (IEC61000-4-5)<br>Class 2 power unit<br>Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires<br>Suitable for dry / damp / wet locations<br>Suitable for LED lighting and street lighting applications<br>Protections: Short circuit / Over current / Over voltage / Over temp.<br>Multiple models for choice:<br>A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer<br>B-Type: IP67 rated. Constant current level adjustable through output cable with built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)<br>Blank-Type: IP67 rated. Cable for I/O connection<br>D2-Type: IP67 rated. Smart timer dimming function*, contact MEAN WELL for details<br>DA-Type: IP67 rated. DALI control technology

<b>Output:</b><br> DC voltage: 42V<br> Constant Current Region: 21~42V<br> Rated current: 1.8A<br> Rated power: 200VAC~305VAC: 75.6W; 100VAC~180VAC: 60W<br> Ripple & Noise(max.): 250mVp-p<br> Voltage ADJ. Range: 37.8~46.2V (Adjustable for A-Type only: Via built-in potentiometer)<br> Current ADJ. Range: 0.9~1.8A(Adjustable for A-Type only: Via built-in potentiometer)<br> Voltage tolerance: ±2.5%<br> Line regulation: ±0.5%<br> Load regulation: ±0.5%<br> Setup, rise time: 500ms,100ms/115VAC, 230VAC<br> Hold up time(Typ.): 10ms/230VAC, 10ms/115VAC (at full load)</p> <p> <b>Input:</b><br> Voltage range: 100~305VAC/142~431VDC<br> Frequency range: 47~63Hz<br> Power Factor: PF&#x2265;0.97/115VAC, PF&#x2265;0.95/230VAC, PF&#x2265;0.92/277VAC @ full load<br> Total Harmonic Distortion: THD< 20% (@ load &#x2265;50%/115VAC,230VAC; @ load&#x2265;75%/227VAC<br> Efficiency(Typ.): 90%<br> AC current(Typ.): 0.7A/115VAC, 0.45A/230VAC,0.38A/277VAC<br> Inrush current(Typ.): Cold start 50A(twidth=350&#x3BC;s measured at 50% lpeak) at 230VAC; Per Nema 410<br> Max. No. of PSUs on 16A Cricuit Breaker: 5 units (circuit breaker of type B) /8 units (circuit breaker of type C) at 230VAC<br> Leakage current: < 0.75mA/277VAC<br> No load/ standby power consumption: No load power consumption< 0.5W for Blank/A/Dx/D2-Type; Standby power consumption< 0.5W for B/DA-Type</p> <p> <b>Environment:</b><br> Working Temp: -40~ +85&#x2103; (refer to"Output load vs Temperature" section)<br> Max. Case Temp. +85&#x2103;<br> Working humidity: 20~95% RH (non-condensing)<br> Storage temp. humidity: -40~+80&#x2103;,10~95%RH<br> Temp. coefficient: ±0.03%/&#x2103;(0~60&#x2103;)<br> Vibration: 10~500Hz, 5G 12min. / 1 cycle, period for 72min. each along X,Y,Z axes</p> <p> <b>Others:</b><br> MTBF: 1172K hrs min. Telcordia SR-332 (Bellcore) 331Khrs min. MIL-HDBK-217F(25&#x2103;)<br> Dimension: 180*63*35.5mm(L*W*H)<br> Packing: 0.8Kg; 16pcs/13.4Kg/0.67CUFT</p> <p> <b>Package:</b><br> 1 x Power Supply</p> <p>
