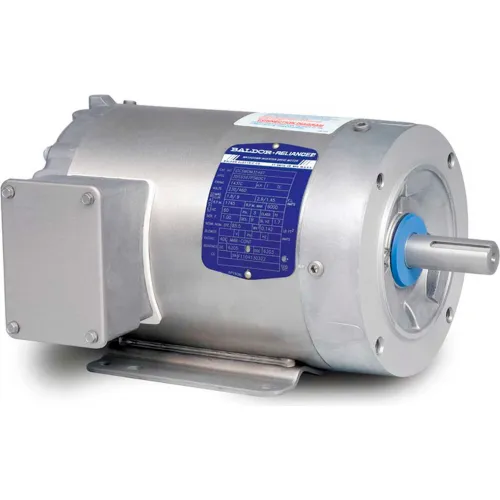

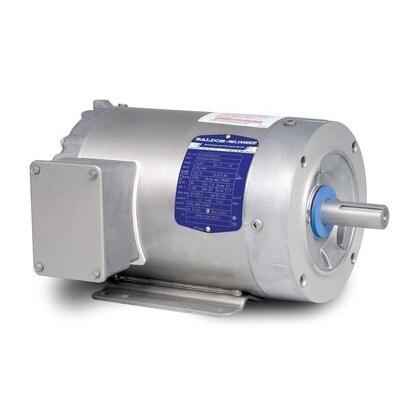

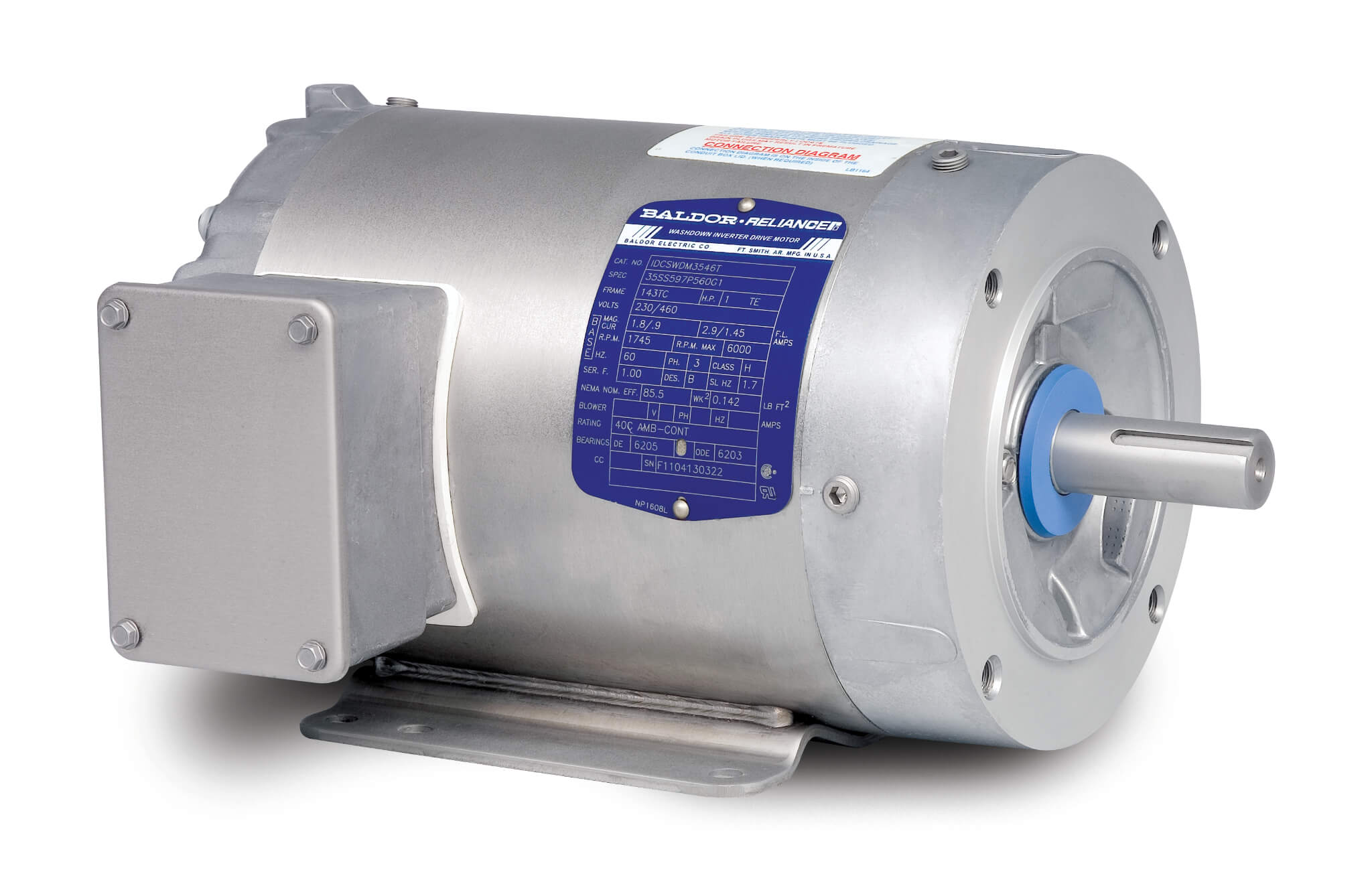

IDCSWDM3538 - Baldor .5HP, 1750RPM, 3PH, 60HZ, 56C, 3515M, TENV, F1, Motor Inverter-Vector Motors

230/460 Volts0.50 hp Output1800 RPMThree PhaseTENV Enclosure56C Frame Size0.80 A FL Amps82.5 % FL EfficiencyC-Face Drive End Flange TypeMounting: Foot Mounted

Baldor Electric, IDCSWDM3538, .5HP, 1750RPM, 3PH, 460V;230V;208V, 56C Frame, C-Face Flange, Foot Mount, TENV, Washdown Vector Duty Motor

Baldor IDCSWDM3538.5HP 1750RPM 3PH 60HZ 56C 3516MTENV F1

BALDOR-RELIANCE WASHDOWN MOTOR IDCSWDM3538, 3 PHASE, 0.5 HP, 1750 RPM, 208-230/460 VOLTS, TENV, 56C FR BALDOR-RELIANCE'S WASHDOWN DUTY MOTORS ARE AVAILABLE FROM STOCK IN SINGLE AND THREE PHASE AC AND IN DC DESIGNS. HORSEPOWERS RANGE FROM 1/2 TO 20. DES

<p><ul><li>Includes all the advantages of our standard \&q;Paint Free\&q; washdown duty motors<li>Specifically designed and built for use on variable frequency drives<li>Meets NEMA MG 1, Part 31<li>Standard efficiency<li>Applications: Conveyors, Pumps and other equipment in food processing and other severe environments where motors are \&q;washed\&q; on a regular basis. For adjustable speed applications not requiring full torque at zero speed</li></ul></p> ,<p><b>Specifications: </b><ul><li>Motor Category:-Inverter Duty Motor (Paint Free) <li> Motor Phase:-3 ph <li> Motor Horsepower:-0.50 hp, 1/2 hp <li> Synchronous RPM:-1800 rpm <li> Motor Supply Voltage:-208-230/460 V <li> Frame Size:-56C <li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) <li> Frequency Rating:-60 Hz <li> Duty / Condition Type:-Continuous Duty <li> Mounting Type:-Footed/C-Face Flange <li> Full Load Current:-0.80 A <li> Full Load Efficiency:-82.50 % <li> Amps @ Voltage:-1.6 A @ 230 V; 1.7 A @ 208 V; 0.8 A @ 460 V <li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz <li> Shaft Diameter:-0.63 in <li> Overall Length (C-Dimension):-11.06 in <li> Service Factor:-1.00 <li> Frame Material:-Stainless Steel <li> Insulation Class:-H <li> IP Rating:-55 <li> Standards Met:-UR, CSA <li> Harmonization Code:-8501.51.4040 <li> Weight:-29.00 lbs <li> Applications:-Conveyors, pumps and other equipment in food processing and severe environments where motors receive washdown on a regular basis. <li> Additional Details:-Includes all the advantages of our standard “Paint Free” washdown duty motors. Specifically designed and built for use on adjustable speed drives. For adjustable speed applications not requiring full torque at zero speed. Not encoder adaptable. 1.00 Service Factor. Class “H” insulated. 2700 RPM constant Hp speed. Includes phase insulation and thermostats. </li></ul></p>
