HF2B5105N Markel Products Co. TPI,HEATER,240/208V,17.1/12.8 | Midwest Appliance Parts

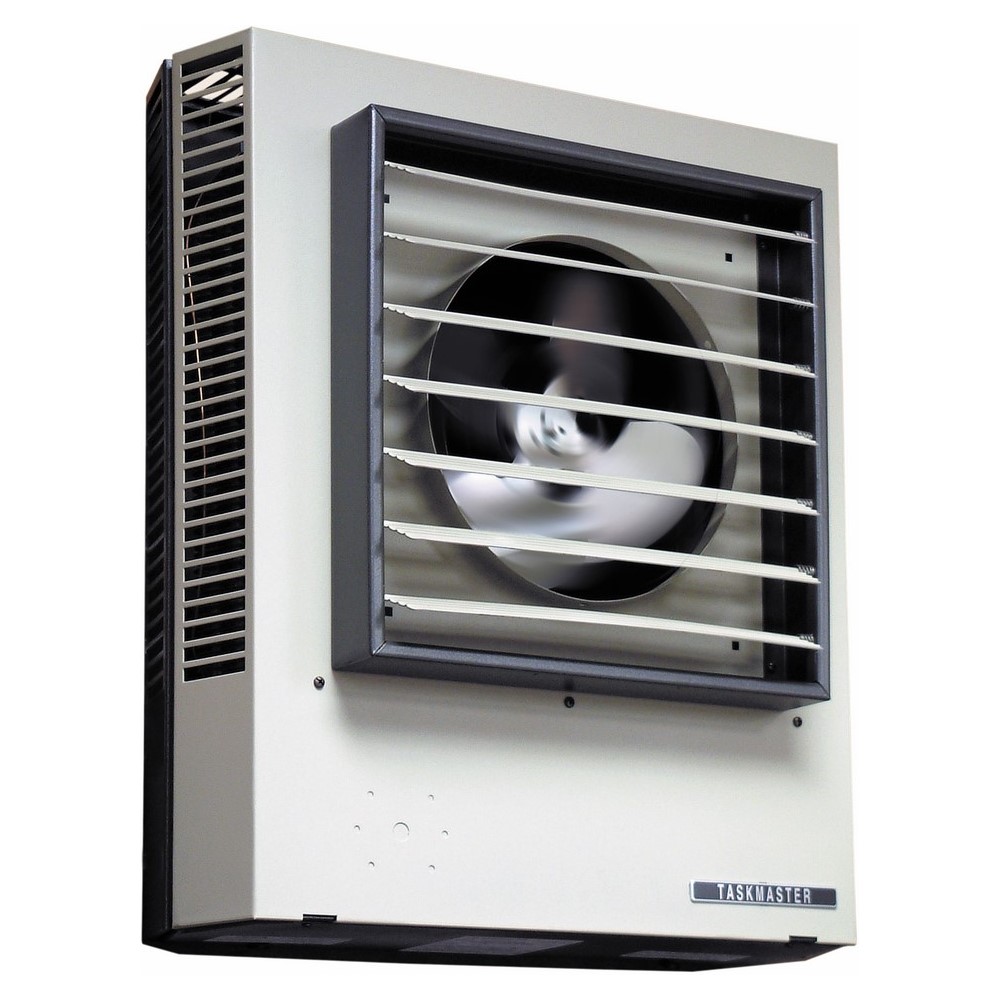

'Electric Unit Heater, Heater Voltage 208/240VAC, 5.0/3.7 kW, 17,100/12,800 BtuH, 1/3 Electric Heater Phase, 20.8/10.4 Amps AC, 60 Hz, Heater Mounting Type Ceiling, Wall, Temp. Rise 40 Degrees F, Air Flow 400 cfm, Width 14-15/32 In., Depth 6-1/2 In., Height 17-3/4 In., Horizontal Air Throw 12 ft., Vertical Mounting H 9 ft., Housing Material 18 ga. Steel, Housing Finish Beige Brown Powder Coated, Contactor Coil Voltage 240/208'

3.3-50KW UNITSCONSTRUCTION:Heavy 18 Gauge welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance.HEATING ELEMENT:Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow.OVERHEAT PROTECTION:All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.FAN and MOTOR:Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models. Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models. All motors mounted with rubber insulators to minimize vibration & noise. Fan over-ride purges unit of residual heat at shutdown.LOUVER ASSEMBLY:Louvers are individually adjustable for directional control of air flow up to 15?? from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications.TEMPERATURE CONTROLS:Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40??F to 90??F. Units with model numbers ending in CA1 are factory wired for low voltage controls. 25 KW through 50 KW units are designed for two stage heating operation.INSTALLATION:Unit Heaters can be mounted for horizontal or vertical discharge. Applications up to 6000 Ft. See UH Series above 6000 Ft. ABS (American Bureau of Shipping) type approved.FIELD INSTALLED OPTIONS:- In-unit or wall mounted temperature control thermostats low or line voltage.- Power disconnect switch.NOTES:- 25-50KW models are wired for single or two stage heating and have two speed motors.- Air delivery and motor data on dual voltage units reflect higher voltage. 60-100KW UNITSCONSTRUCTION:Heavy Gauge steel cabinet with powder coated finish and
