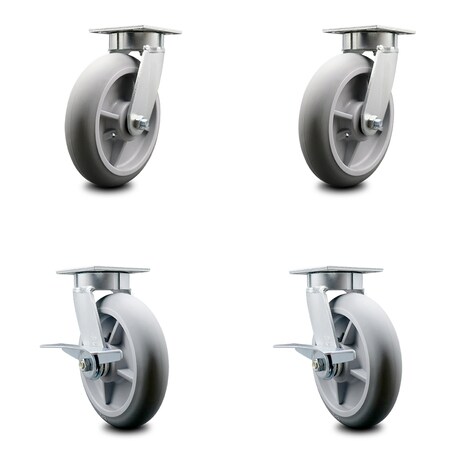

8 Inch Kingpinless Thermoplastic Rubber Wheel Swivel Caster Set with 2 Brakes

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms8
Attribute012
Attribute024" x 4-1/2"
Attribute039-1/2"
Attribute048" x 2"
Attribute053/8" (hardware not included)
Attribute06-20 degrees F to 180 degrees F
Attribute07Thermoplastic Rubber on Polyolefin
Attribute08Top Plate
Attribute092400
Attribute102-5/8" x 3-5/8" to 3" x 3"
Attribute112 Top Lock Brakes
Attribute12(2) swivel casters & (2) swivel casters w/side lock brakes
Attribute13Bright Zinc Plated Finish
Attribute14, Model, ModelNumber, Model_numberSeries#KP30
Attribute1575A
Attribute16Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Size
AttributeKey05Bolt Size
AttributeKey06Caster Temp. Range
AttributeKey07Material
AttributeKey08Caster Mounting Type
AttributeKey09Capacity (Lb.)
AttributeKey10Plate Caster Bolt Hole Pattern
AttributeKey11Caster Swivel Lock Type
AttributeKey12Type
AttributeKey13Finish
AttributeKey14Series
AttributeKey15Durometer
AttributeKey16Bearing Type
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
DimensionUnitinch
Extra Product Name8 Inch Kingpinless Thermoplastic Rubber Wheel Swivel Caster Set with 2 Brakes
UPCNone
WeightUnitlbs
diameter, length8.0
extendedLead26
extendedQty-2
height9.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S820-TPRRD-2-SLB-2
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG905435423
tierPrice1440.00
urlhttps://www.zoro.com/service-caster-8-inch-kingpinless-thermoplastic-rubber-wheel-swivel-caster-set-with-2-brakes-scc-kp30s820-tprrd-2-slb-2/i/G905435423/
width2.0
ASINB08KFHZM2J B08KHMB4LC
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08KFHZM2J
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Thermoplastic Rubber Donut Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
ClassificationId511228
Color4 Swivel w/2 Side Lock Brakes
Currency, CurrencyCodeUSD
DisplayNameHardware
FetchTime1701928366 1704836637
Height, Width1000 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Thermo Rubber Donut Tread Swivel Top Plate Caster Set of 4 w/8" x 2" Gray Wheels - Includes 2 Swivel with Brakes & 2 Swivel - 2400 lbs Total Capacity - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S420-TPRRD-SLB-BSL
Linkhttps://m.media-amazon.com/images/I/3100mA4hZnL._SL75_.jpg https://m.media-amazon.com/images/I/3100mA4hZnL.jpg https://m.media-amazon.com/images/I/41Vhx45SY2L._SL75_.jpg https://m.media-amazon.com/images/I/41Vhx45SY2L.jpg https://m.media-amazon.com/images/I/5161dEn9moL.jpg https://m.media-amazon.com/images/I/51JCJZoXb5L._SL75_.jpg https://m.media-amazon.com/images/I/51JCJZoXb5L.jpg https://m.media-amazon.com/images/I/51QFLn2tQUL.jpg https://m.media-amazon.com/images/I/51tMaQeKITL._SL75_.jpg https://m.media-amazon.com/images/I/51tMaQeKITL.jpg https://m.media-amazon.com/images/I/51xUM5nx+tL._SL75_.jpg https://m.media-amazon.com/images/I/51xUM5nx+tL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61GB6YQr5+L.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61Wfp83FmEL.jpg https://m.media-amazon.com/images/I/71nzENowt4L.jpg
List_price0.0
Load_capacity600.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeThermoplastic Rubber Tread on Polyolefin Core
Name, ThemeSIZE_NAME/COLOR_NAME
NumberOfItems, Number_of_items4
ParentAsinsB08KHMB4LC
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #KP30 swivel casters, two (2) with side locking brakes, with 8" diameter by 2" wide thermoplastic rubber donut tread wheels capable of supporting a total weight of 2,400 lbs. (600 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core donut tread casters. The rounded face “donut” style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-29T16:58:28.357Z
Size8" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION
URLhttps://m.media-amazon.com/images/I/3100mA4hZnL._SL75_.jpg
Unitpounds
Unit_count4.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight29.4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG905435423111 @ $440.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Kingpinless Thermo Rubber Donut Tread Swivel Top Plate Caster Set of 4 w/8" x 2" Gray Wheels - Includes 2 Swivel with Brakes & 2 Swivel - 2400 lbs Total Capacity - Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #KP30 swivel casters, two (2) with side locking brakes, with 8" diameter by 2" wide thermoplastic rubber donut tread wheels capable of supporting a total weight of 2,400 lbs. (600 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core donut tread casters. The rounded face “donut” style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Thermoplastic Rubber Donut Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S820-TPRRD-2-SLB-2
Items per pack4
LabelService Caster
ManufacturerService Caster
